B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$493.79
Image coming soon

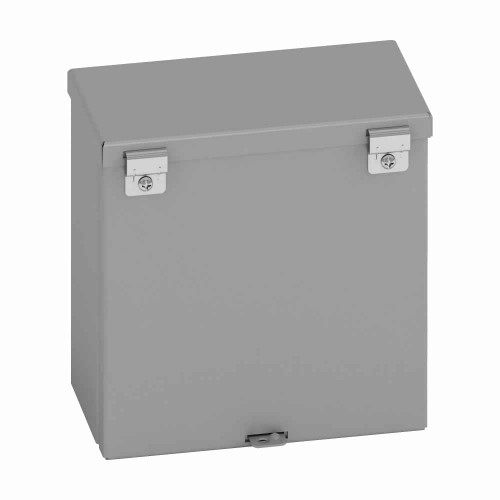

B-Line Eaton series Type 3/3R junction boxes, 6" height, 4" length, 4" width, 3R, Hinged cover, RTHC enclosure, Surface mounted, Small single door, 2

(No reviews yet) Write a Review

Model: 644 RTHC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$493.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 6" height, 4" length, 4" width, NEMA 3R, Hinged cover, RTHC enclosure, Surface mounted, Small single door, 2 knockouts, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Formed top hinge
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
Painted
Locking Provisions:
Padlock provision
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
6 in
Product Length Depth:
4 in
Product Weight:
2.2 lb
Product Width:
4 in
Special Features:
Rain hood, removable cover
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTHC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel

B-LINE 644 RTHC – Frequently Asked Questions

1) Can the Eaton B-Line 644 RTHC junction box be mounted outdoors?
Yes. The 644 RTHC carries a NEMA 3R rating, which covers outdoor use against falling rain, sleet and ice formation. It also has a rain hood over the door. It is not a washdown or dust-tight box, so for hosedown or heavy dust go to a Type 4 or 4X enclosure instead.
2) How does the 644 RTHC enclosure mount, and does it need mounting feet?
Surface mount, straight to the wall or strut through embossed thru holes in the back of the box. The embossing keeps the fastener heads off the mounting surface so the back stays sealed. No external mounting feet are supplied with it.
3) Does the B-Line 644 RTHC junction box come with knockouts already, or do I have to punch my own?
It ships with 2 knockouts, so for a simple conduit in and out you are not drilling anything. Any additional entries you punch yourself, and on a 3R box those should be made on the bottom or lower sides and sealed with a raintight fitting so the rating holds.
4) What size is the B-Line 644 RTHC enclosure and how much does it weigh?
It measures 6 inches high, 4 inches wide and 4 inches deep, and weighs 2.2 pounds. That is a small single door box, sized for a disconnect splice, a contactor, or a few terminal blocks rather than a panel.
5) Can the cover on the 644 RTHC be locked?
Yes, there is a padlock provision on the door, so you can secure it with your own padlock. The cover is hinged on a formed top hinge and is removable, which helps when you need the box wide open to land conductors and then want the door back on.
6) Is the 644 RTHC steel or plastic, and will it hold up outdoors?
Carbon steel, 16 gauge, painted ANSI 61 grey. That is the standard grey you see on most industrial gear, so it matches adjacent enclosures on a wall. Steel does mean you need to keep the paint intact at field-drilled holes; in salt air or chemical exposure a stainless or non-metallic 4X enclosure is the better call.
