B-Line Eaton series wireway, 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,063.56

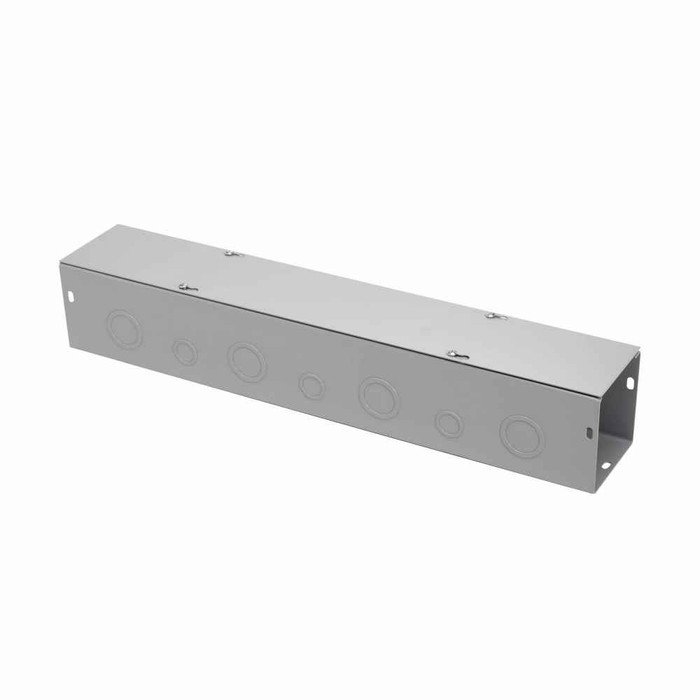

B-Line Eaton series wireway, 10" height, 36" length, 10" width, G wireway, Thru holes, 11 top knockouts, 11 bottom knockouts, Screw cover, 1, Steel,

B-Line Eaton series wireway, 10" height, 36" length, 10" width, G wireway, Thru holes, 11 top knockouts, 11 bottom knockouts, Screw cover, 1, Steel,

(No reviews yet) Write a Review

Model: 101036 G
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,063.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 10" height, 36" length, 10" width, G wireway, Thru holes, 11 top knockouts, 11 bottom knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
10 in
Product Length Depth:
36 in
Product Weight:
25.179 lb
Product Width:
10 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G wireway
Product Details:
G wireway

B-LINE 101036 G – Frequently Asked Questions

1) Is the Eaton B-Line 101036 G wireway rated for outdoor or wet locations?
No. The 101036 G is a NEMA 1 enclosure, which is indoor, general purpose only. It gives protection against incidental contact and falling dirt, not rain, washdown, or dust-tight service. For an exterior run or a wet area you need a NEMA 3R or 4 raintight wireway instead. It is CSA Certified.
2) Does this wireway have a hinged cover or a screw cover?
Screw cover. The cover is secured with plated screws along its length, so you remove the hardware to open it. That is the standard choice where the trough is pulled once and then closed up. If your electricians need to get back in repeatedly for troubleshooting or adding circuits, a hinged cover wireway is the easier fit, since you are not handling a dozen loose screws on a ladder.
3) Do the knockouts let me connect sections together without a coupling?
The section has 11 top knockouts and 11 bottom knockouts, which are there for conduit entry and cable drops into the trough, not for joining sections. Wireway runs are built end to end with connectors, and fittings such as elbows, tees, end plates, and hangers are ordered separately from the trough itself.
4) What gauge steel is this wireway and what is the finish?
14 gauge steel, painted ANSI 61 gray. That is the standard gray used on switchgear and panelboards, so a run of this trough matches the equipment it feeds without a repaint. The screws holding the cover are plated.
5) Is a 10 x 10 wireway overkill, or should I drop to a 6 x 6?
Pick the size off your fill, not your habit. A 10 x 10 trough gives 100 square inches of cross section against 36 for a 6 x 6, so it is the one to use where several large feeders converge, where you are pulling multiple conductor bundles through one gutter, or where you want room for future circuits. For a handful of branch circuits at a small panel, a 4 x 4 or 6 x 6 screw cover trough handles it in less wall space and less weight.
6) Will this match wireway already installed in my building?
If the existing trough is 10 x 10 NEMA 1 screw cover in ANSI 61 gray, the 101036 G matches on size, type, and color, and extends the run by 36 inches. Order Eaton B-Line part number 101036 G to keep it identical. What it will not match is a hinged cover run or a raintight NEMA 3R run, since the cover style and gasketing differ.
