B-Line Eaton series wireway, 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,145.66

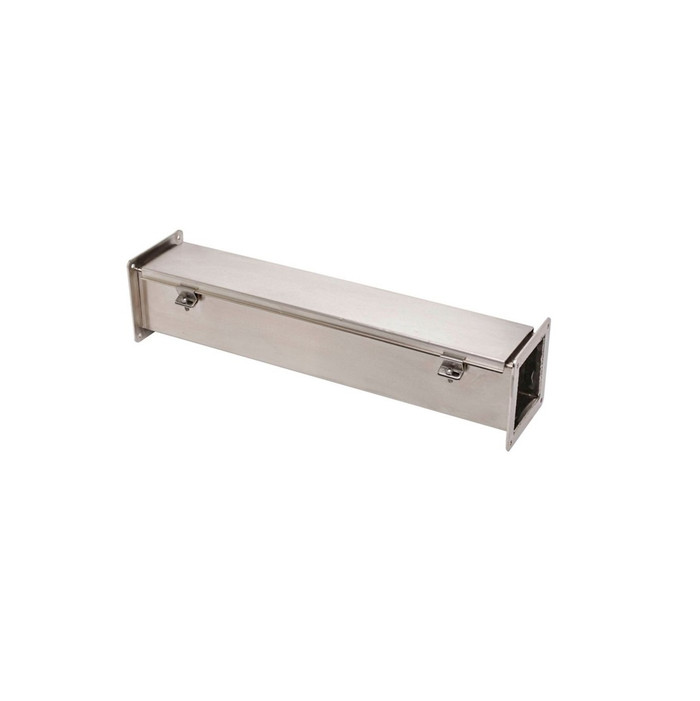

B-Line Eaton series wireway, 4" height, 60" length, 4" width, 4XSFW wireway, Wireway hanger, Hinged cover, 4X, 304 stainless steel, Seamless poured i

B-Line Eaton series wireway, 4" height, 60" length, 4" width, 4XSFW wireway, Wireway hanger, Hinged cover, 4X, 304 stainless steel, Seamless poured i

(No reviews yet) Write a Review

Model: 4460-4XSFW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,145.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 4" height, 60" length, 4" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
#4 brushed
Material Thickness:
16 gauge
Mounting Method:
Wireway hanger
Product Height:
4 in
Product Length Depth:
60 in
Product Weight:
19.533 lb
Product Width:
4 in
Special Features:
Cover secured by hinges, screwclamps&s.s. hardware
Department:
Electrical
Product Type:
4XSFW wireway
Product Details:
4XSFW wireway

B-LINE 4460-4XSFW – Frequently Asked Questions

1) Is the Eaton B-Line 4460-4XSFW wireway rated for washdown or corrosive areas?
It's a NEMA 4X wireway built from 304 stainless steel with a seamless poured-in-place gasket, so it's intended for washdown, food processing, and other wet or corrosive environments where a painted steel wireway would rust out. The body carries a #4 brushed finish and it is CSA C22.2 certified.
2) Does this stainless wireway have a hinged cover or a screw-on cover?
Hinged. The cover swings open on hinges and is held shut with screwclamps and stainless steel hardware, so you're not chasing loose cover screws on a ladder and you keep the 4X seal when you close it back up.
3) How does the 4460-4XSFW wireway mount to a wall or structure?
It is supported by wireway hangers rather than bolting the trough body directly. Plan your support points and order hangers separately, since the hanger hardware is the specified mounting method for this 4x4 stainless trough.
4) Do I need a separate gasket kit to get the 4X rating on this wireway?
No. The gasket is seamless poured in place on the enclosure itself, so there's no separate gasket kit to buy or cut. Keep the screwclamps snugged evenly when you close the hinged cover and the seal is maintained.
5) How heavy is a 5 foot section of this 4x4 stainless wireway for hanger spacing?
A single 60 inch section weighs 19.533 lb empty, before conductors. Size your hangers and anchors for that plus the fill weight of the cable you're pulling.
6) What gauge metal is the 4460-4XSFW wireway made from?
16 gauge 304 stainless steel. That's a sturdier wall than the light-gauge painted troughs used in dry indoor work, and it's what lets the section carry a hinged cover and gasket without oil-canning.
