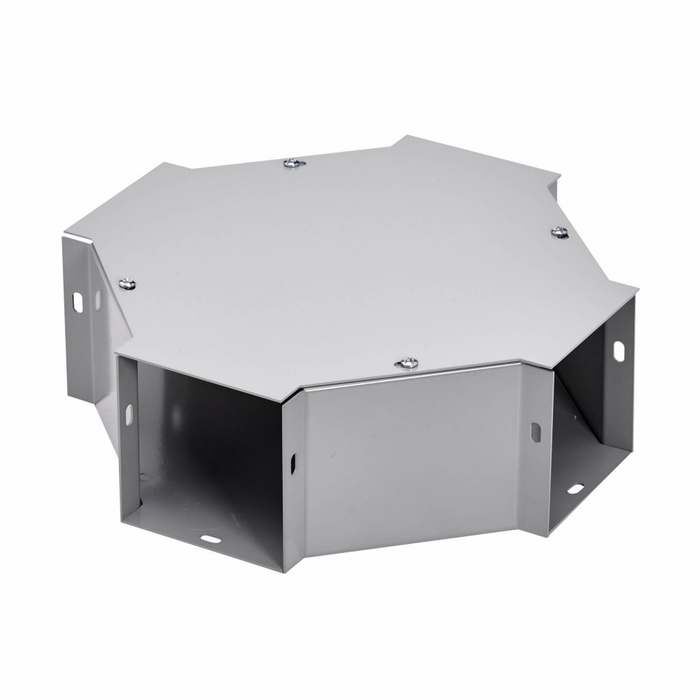

Eaton B-Line series wireway cross fitting, Lay-in, Wireway cross fitting, NEMA 1, Steel, ANSI 61 gray painted, 12" X 12"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 12 in
- Product Length Depth:
- 20.24 in
- Product Weight:
- 17.769 lb
- Product Width:
- 12 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Tees / Crosses
- Product Type:
- Wireway cross fitting
- Product Details:
- Wireway cross fitting
- Product Material:
- Steel
B-LINE 1212 X – Frequently Asked Questions
1) Will the B-Line 1212 X cross fitting mate with 12 x 12 wireway trough?
Yes. The Eaton B-Line 1212 X cross is built for 12 inch by 12 inch wireway, with a 12 in height and 12 in width on each opening. It joins four runs of trough at a single intersection, so straight runs coming in from four directions land on one fitting instead of being mitered together.
2) Is this wireway cross rated for outdoor or wet locations?
No. It is a NEMA 1 enclosure rating, which is indoor, general purpose only. Wet, washdown, or outdoor intersections need a NEMA 3R or NEMA 4 raintight cross instead. The 1212 X is UL Listed.
3) Can conductors be laid into this cross without pulling them through?
Yes, it is a lay-in fitting. The cover comes off and conductors drop straight into the trough at the intersection, no fish tape or pulling around a four-way corner. That is the main reason crews use lay-in wireway for feeder and control wiring instead of conduit.
4) How heavy is a 12 inch wireway cross for overhead support planning?
It weighs 17.769 lb bare. Add conductor weight at the intersection when you size hangers or trapeze supports, since a cross concentrates four runs of wire fill at one point.
5) Do I need a cross or will two tees work at a four-way wireway intersection?
Use the cross where four trough runs meet at one point. Two tees back to back forces a short filler section between them, adds joints and gasket-free seams, and eats layout space. The 1212 X handles all four legs in one 12 x 12 body.
6) What part number do I order for the 12x12 B-Line lay-in wireway cross?
Order Eaton B-Line 1212 X. That is the NEMA 1 steel lay-in cross for 12 inch square wireway in ANSI 61 gray.
7) What is this cross fitting made of and will the finish match my existing gray wireway?
Steel body with an ANSI 61 gray painted finish, which is the standard gray used across Eaton B-Line wireway, so it matches adjacent trough and fittings in the same line.
