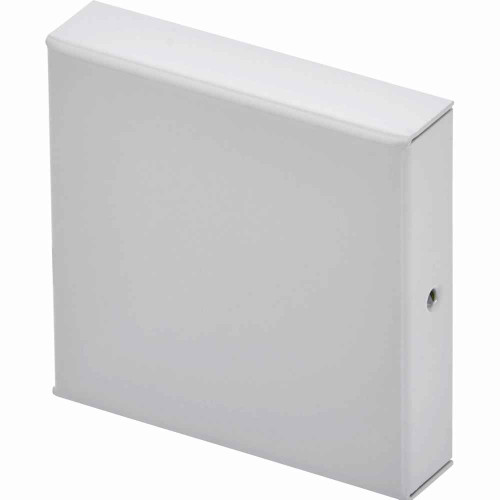

Eaton B-Line series wireway end, Wireway end, NEMA 1, Steel, ANSI 61 gray painted, 2.5" X 2.5"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 2.5 in
- Product Length Depth:
- 2.5 in
- Product Weight:
- .196 lb
- Product Width:
- 2.77 in
- Department:
- Electrical
- Product Type:
- Wireway end
- Product Details:
- Wireway end
- Product Material:
- Steel
- Product Length:
- 2.5 in
B-LINE 22 E – Frequently Asked Questions
1) Will the B-Line 22 E wireway end fit a 2-1/2 by 2-1/2 inch wireway?
Yes. The Eaton B-Line 22 E end plate is sized for 2.5 inch by 2.5 inch wireway, which is what the 22 designation refers to. If your trough is 4x4 or 6x6, this closure is the wrong size and you need the matching end for that cross section.
2) Is the 22 E wireway end suitable for outdoor or wet locations?
No. It is a NEMA 1 rated closure, which is indoor, general purpose protection against incidental contact and falling dirt only. For a wet or washdown area you need a NEMA 3R or 4 rated wireway system, not this one.
3) Is the B-Line 22 E wireway end UL Listed for use in a commercial electrical installation?
Yes, the 22 E end closure is UL Listed. That matters for inspectors on commercial and institutional jobs, where the wireway and its fittings all need to be listed components of the raceway system.
4) What is the 22 E made of, and will the finish match my existing gray wireway run?
Steel with an ANSI 61 gray painted finish, which is the standard gray used across Eaton B-Line wireway and most commercial enclosure lines. If the rest of your trough is ANSI 61 gray, this closure matches it.
5) What does a wireway end actually do, and do I need one on every run?
It caps the open end of a wireway trough so the raceway is closed off. Any wireway run that terminates without connecting to a box, panel, or another fitting needs an end closure at that point. The 22 E is the closure for 2.5 inch square trough.
6) Why is the B-Line 22 E listed as 2.77 inches wide when the wireway is 2.5 inches?
The end plate measures 2.77 in across the width with 2.5 in height and 2.5 in depth. The plate overlaps the trough opening slightly so it seats over the 2.5 inch square section rather than sitting flush inside it. Weight is about .196 lb.
