B-Line Eaton series wireway sy...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$596.01

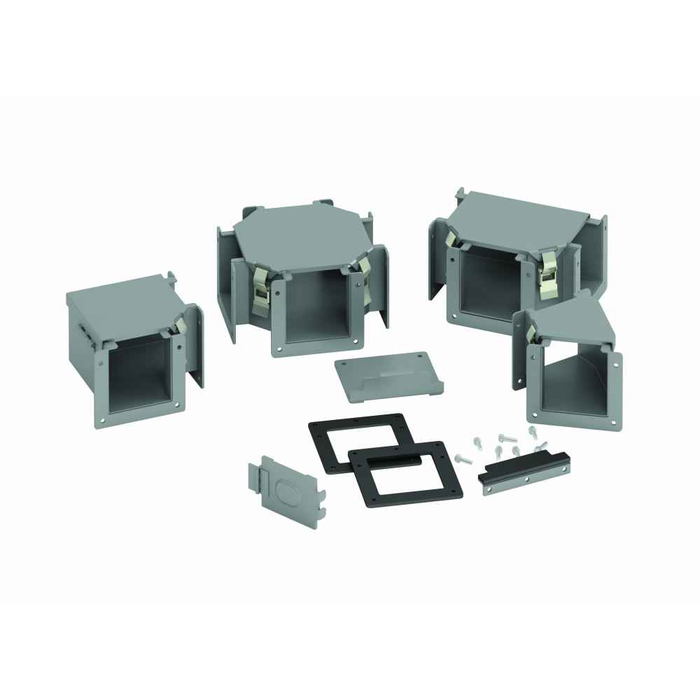

B-Line Eaton series wireway system adapter, Includes sealing plate kits, Adapter for Hammond® Mfg, 12, Steel, ANSI 61 gray painted, 4" X 4"

B-Line Eaton series wireway system adapter, Includes sealing plate kits, Adapter for Hammond® Mfg, 12, Steel, ANSI 61 gray painted, 4" X 4"

(No reviews yet) Write a Review

Model: 44-12LAHM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$596.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway system adapter, Includes (2) sealing plate kits, Adapter for Hammond® Mfg, NEMA 12, Steel, ANSI 61 gray painted, 4" X 4"

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Finish Color:
ANSI 61 gray painted
Product Height:
4 in
Product Length Depth:
11.94 in
Product Weight:
6.341 lb
Product Width:
4 in
Special Features:
Includes (2) sealing plate kits, NEMA12
Department:
Electrical
Product Group:
Connectors & Adapters
Product Subgroup:
Adapters
Product Type:
Adapter for Hammond® Mfg
Product Details:
Adapter for Hammond® Mfg
Product Material:
Steel

B-LINE 44-12LAHM – Frequently Asked Questions

1) What does the Eaton B-Line 44-12LAHM wireway adapter actually connect?
It joins Eaton B-Line 4 x 4 inch wireway to Hammond Mfg wireway, so you can tie a new B-Line run into an existing Hammond system without replacing the old trough. Model 44-12LAHM, steel, and it ships with two sealing plate kits to close the joint.
2) Will this adapter work on 6x6 wireway?
No. The 44-12LAHM is sized for 4 x 4 inch wireway, with a 4 inch height and 4 inch width at the opening. A 6 x 6 run needs the matching 6 x 6 adapter, not this one.
3) Is this wireway adapter rated for a wet or oily environment?
It is a NEMA 12 adapter, which covers dust, falling dirt and dripping non-corrosive liquids on indoor equipment. It is not a NEMA 3R or 4X rating, so it is not intended for outdoor or washdown use. The two included sealing plate kits are what maintain the NEMA 12 integrity at the transition.
4) Is the Eaton B-Line 44-12LAHM UL Listed?
Yes, it is UL Listed, which matters if the transition sits in an inspected industrial or institutional installation where every component in the raceway run has to carry a listing.
5) Do I need to buy sealing plates separately for this Hammond adapter?
No. Two sealing plate kits are included with the 44-12LAHM, so the hardware to seal both ends of the transition comes in the box. You would still supply any wireway sections, covers and mounting hardware for the run itself.
6) Will the gray finish match the rest of my wireway run?
The adapter is painted ANSI 61 gray, the standard gray used across B-Line wireway and most industrial enclosure lines, so it blends into an existing ANSI 61 run rather than standing out at the joint.
7) How long is this adapter and how much does it weigh for planning the run?
Figure 11.94 inches of length into the layout, with a 4 by 4 inch cross section, and 6.341 lb of weight on the supports at that point. Useful when you are spacing hangers or fitting the transition into a tight ceiling space.
