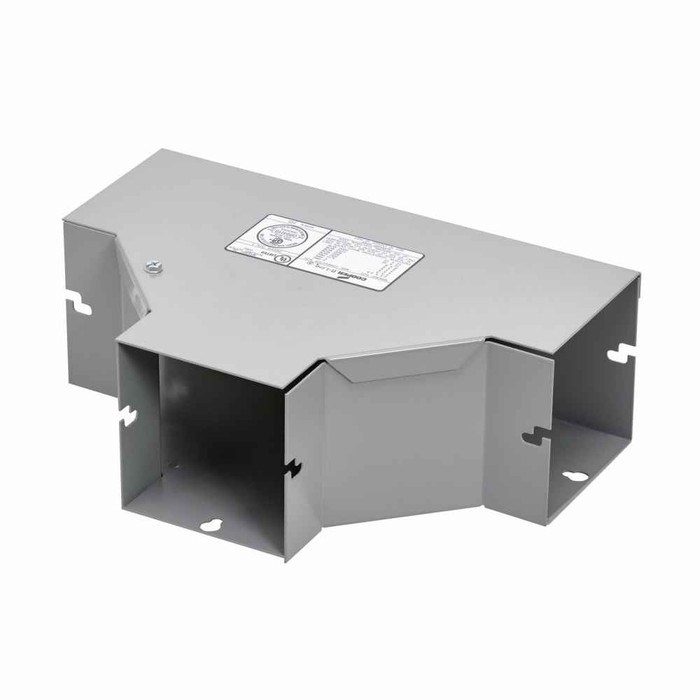

Eaton B-Line series wireway tee fitting, Lay-in, Wireway tee fitting, NEMA 1 rated, Steel, ANSI 61 gray painted, 6" X 6"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 6 in
- Product Weight:
- 6.351 lb
- Product Width:
- 10.306 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Tees / Crosses
- Product Type:
- Wireway tee fitting
- Product Details:
- Wireway tee fitting
- Product Material:
- Steel
B-LINE 66 HST – Frequently Asked Questions
1) Is this B-Line tee suitable for a wet or washdown area?
No. The 66 HST carries a NEMA 1 degree of protection, which is indoor general purpose only, for protection against incidental contact and falling dirt. It is not rated against water. For damp, outdoor, or washdown locations you need a NEMA 3R or NEMA 4 rated wireway and matching fittings instead.
2) Can I lay conductors into this fitting instead of pulling them through?
Yes, it is a lay-in design. The cover comes off so conductors drop straight into the trough and the branch leg, then the cover goes back on. That is the point of using a lay-in wireway system on a panel or control run: no fish tape, no pulling around the corner, and you can add circuits later without disturbing what is already in there.
3) What is the part number to order this B-Line 6x6 wireway tee?
Order Eaton B-Line model 66 HST. It is a single configuration, 6 x 6 lay-in tee in ANSI 61 gray painted steel, so there is no handing or finish choice to specify. Connectors and any additional hardware for joining to adjacent wireway sections are ordered separately.
4) Do I need a tee or an elbow for my wireway run?
Use the 66 HST tee where one wireway run has to branch off in a second direction while the main run continues straight through, for example feeding a subpanel off a main gutter run. If the run simply turns a corner and does not continue, an elbow is the right fitting. Both must match the 6 x 6 trough size and the NEMA 1 rating of the rest of the system.
5) What finish is the B-Line 66 HST tee, and will it match the rest of my wireway?
It is steel with an ANSI 61 gray painted finish, the standard gray used across most industrial enclosures, panelboards, and wireway. If the existing run in your plant or electrical room is ANSI 61 gray, this tee matches it without field painting.
6) How much does the 66 HST wireway tee weigh for overhead mounting?
The fitting weighs 6.351 lb. It is painted steel, so factor that plus the weight of the conductors it will carry when you size trapeze hangers or wall supports at the branch point, since a tee concentrates load where three legs meet.
