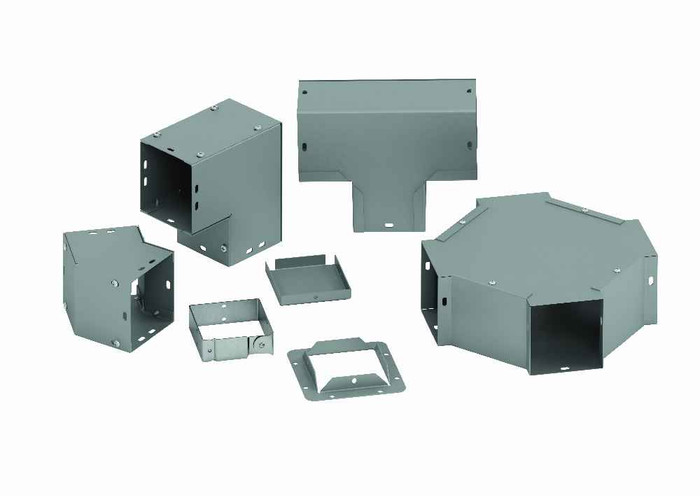

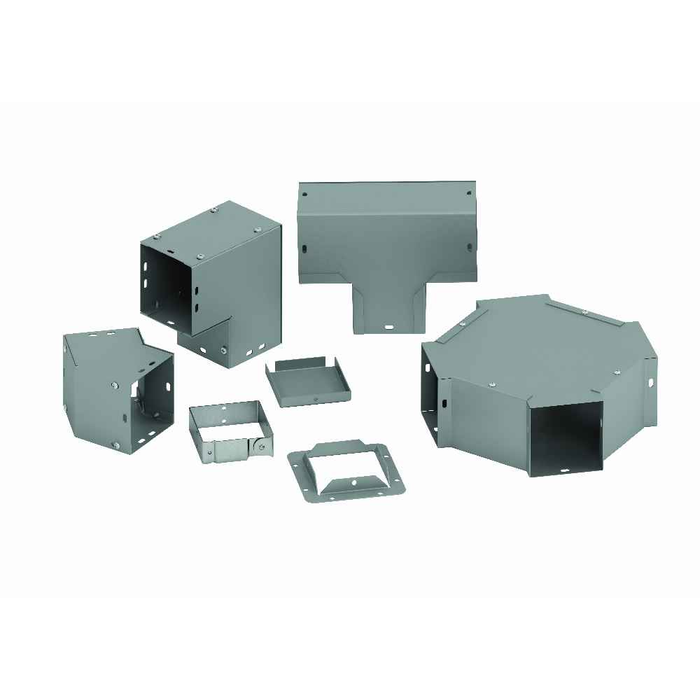

Eaton B-Line series wireway telescoping fitting, Lay-in, Wireway telescoping fitting, NEMA 1, Steel, ANSI 61 gray painted, 10" X 10"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 10.25 in
- Product Length Depth:
- 12 in
- Product Weight:
- 8.787 lb
- Product Width:
- 10.37 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Type:
- Wireway telescoping fitting
- Product Details:
- Wireway telescoping fitting
- Product Material:
- Steel
B-LINE 1010 FTF – Frequently Asked Questions
1) What size wireway does the B-Line 1010 FTF telescoping fitting fit?
The Eaton B-Line 1010 FTF is sized for 10 inch by 10 inch lay-in wireway. Its own outside dimensions run 10.25 in high, 10.37 in wide and 12 in deep, so it laps over the 10 x 10 trough ends rather than sitting inside them. Match it only to 10 x 10 wireway; a 4 x 4, 6 x 6 or 8 x 8 run needs the fitting built for that size.
2) What is a telescoping fitting used for in a wireway run?
It closes the gap between two fixed wireway sections that cannot be pulled together, letting you make up a run to an exact length without cutting and refinishing a trough end. The 1010 FTF slips over the ends of 10 x 10 lay-in wireway and adjusts within its 12 inch depth to take up the slack, which is how field runs between two anchored boxes get finished.
3) Can the B-Line 1010 FTF wireway fitting be installed outdoors or in a washdown area?
No. It is a NEMA 1 enclosure rating, which is indoor general purpose only, protecting against incidental contact and falling dirt with no rain, dust or hosedown protection. For outdoor, damp or washdown locations you need wireway and fittings rated NEMA 3R, 4 or 12 for that environment.
4) Is the B-Line 1010 FTF UL Listed for an inspected commercial job?
Yes, the fitting is UL Listed, which is what an electrical inspector looks for on a wireway run in a commercial or institutional building. Keep the NEMA 1 rating in mind: listed for indoor general purpose use.
5) Will this telescoping fitting match the gray finish on my existing wireway run?
It is steel with an ANSI 61 gray painted finish, the standard gray used across Eaton B-Line lay-in wireway and most switchgear, so it blends with an existing ANSI 61 run. If your trough is a different paint system or stainless, the color will not match.
6) Does the 1010 FTF work with screw-cover wireway, or only lay-in?
It is built for lay-in (hinged or removable cover) wireway, where conductors drop in from the top rather than being pulled through. Pairing it with a screw-cover trough of a different body profile is not the intended fit; keep the fitting and the run in the same lay-in system.
7) What part number do I order for the Eaton B-Line 10 x 10 telescoping wireway fitting?
Order Eaton B-Line model 1010 FTF. That is the manufacturer part number for the NEMA 1, ANSI 61 gray steel telescoping fitting for 10 x 10 lay-in wireway.
