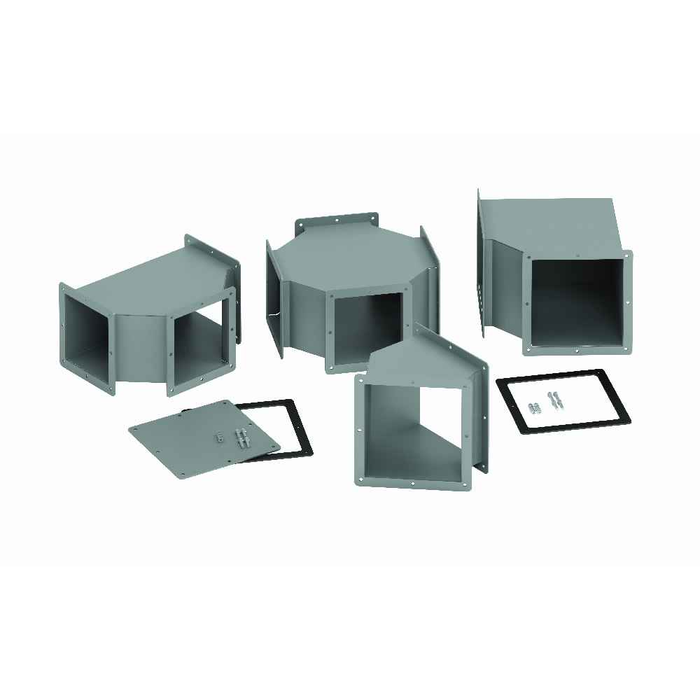

Eaton B-Line series wireway telescoping fitting, Tee, Wireway telescoping fitting, NEMA 12, Steel, Brushed finish, 8" X 8"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- Brushed finish
- Product Height:
- 8 in
- Product Length Depth:
- 15.5 in
- Product Weight:
- 15.006 lb
- Product Width:
- 7.82 in
- Special Features:
- NEMA12
- Wiring Method:
- Tee
- Department:
- Electrical
- Product Type:
- Wireway telescoping fitting
- Product Details:
- Wireway telescoping fitting
- Product Material:
- Steel
B-LINE 88-12FT – Frequently Asked Questions
1) Will the B-Line 88-12FT telescoping tee fit 8 x 8 inch wireway?
Yes. The Eaton B-Line 88-12FT is built for 8 inch by 8 inch wireway, which is what the 88 designation refers to. If your run is 4x4, 6x6 or 12x12, this is the wrong body size and you need the matching fitting for that trough.
2) Is this B-Line wireway fitting rated NEMA 12?
NEMA 12 is the rating on the 88-12FT, so it suits indoor use where you need protection against falling dirt, dust and dripping non-corrosive liquids. It is not a NEMA 3R or 4 raintight fitting, so keep it out of wet or outdoor locations.
3) Can I use this tee outdoors on a rooftop wireway run?
No. The 88-12FT is a NEMA 12 fitting, which covers dust and dripping liquids indoors but not rain, sleet or washdown. For outdoor runs specify a NEMA 3R raintight wireway fitting in the same 8 x 8 inch size.
4) How much room do I need to allow for the B-Line 88-12FT tee, and how heavy is it?
Allow 15.5 inches along the run, with the fitting measuring 8 inches high and 7.82 inches wide. It weighs 15.006 lb, so on an overhead run plan a support close to the fitting rather than hanging it off the adjoining trough alone.
5) What material and finish is the 88-12FT wireway tee, and will it match my existing trough?
Steel with a brushed finish. It matches standard brushed steel NEMA 12 wireway visually and electrically for bonding continuity. If your run is painted grey NEMA 1 or stainless, the appearance will differ.
