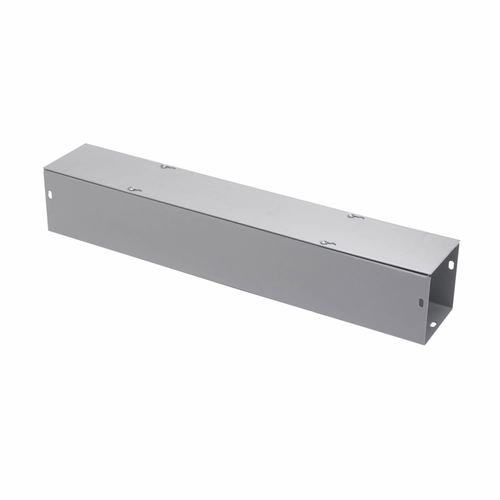

B-Line Eaton series wiring trough, 12" height, 48" length, 12" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Pla

No. The 121248 GGV NK trough is a NEMA 1 enclosure, which is indoor, general purpose only, with no gasketing against dust or water. Keep it inside dry mechanical rooms, electrical rooms, and interior walls. For a washdown area, loading dock, or anything exposed to weather, you need a NEMA 3R or 4 rated raintight wireway instead.

No knockouts. The GGV NK designation means no knockouts, so every conduit entry has to be punched or hole sawed in the field wherever your runs land. That is usually what a contractor wants on a 12 by 12 gutter feeding multiple panels, but if you were expecting factory knockouts to land your EMT in, plan on bringing a punch set.

Through holes in the back of the trough. The 121248 GGV NK is supplied for thru hole mounting, so you fasten it directly to the wall, backboard, or strut with your own hardware. Mounting fasteners and any strut, brackets, or hangers are not part of the trough, so spec those separately, and size them for the load: the section itself weighs about 40.076 lb empty before any conductors go in.

Screw cover. The cover is secured with plated screws along its length, so it lifts off completely once the screws are out rather than swinging on a hinge. That gives you unobstructed access to the whole gutter for pulling and splicing, but budget time for removing and reinstalling the screws on long runs, and keep the loose covers where they won't get walked on.

14 gauge galvanized steel, finished gray. The galvanized base under the gray finish gives it more corrosion tolerance than plain painted steel in a damp but sheltered space like an unheated garage or parking structure interior, and 14 gauge is heavy enough that a 12 in wide cover span stays rigid. It is still a NEMA 1 enclosure, so it is not a substitute for a raintight trough where water can reach it.

It is CSA Certified, which is the listing most Canadian AHJs look for on a wiring trough. That matters for institutional and government work north of the border where uncertified enclosures get rejected on inspection.

Yes, wireway is built to be run in sections, and this one is a 48 in length, so three sections make a 12 foot run. Couplings, connectors, end plates, elbows, and tees are ordered separately from the trough body, and they must match the 12 by 12 cross section and the GGV screw cover series so the covers and flanges line up. A gutter shipped as a body only will not close out a run on its own.
