B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$758.23

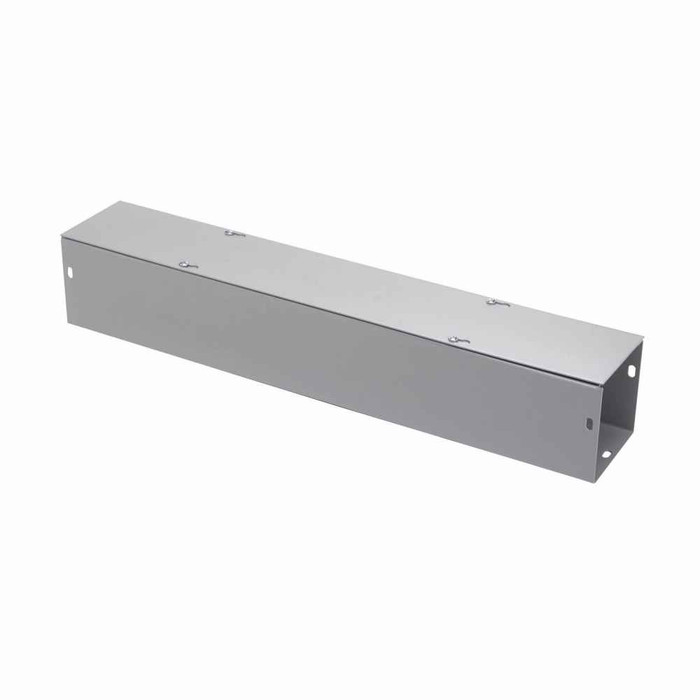

B-Line Eaton series wiring trough, 2.5" height, 120" length, 2.5" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws

B-Line Eaton series wiring trough, 2.5" height, 120" length, 2.5" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws

(No reviews yet) Write a Review

Model: 22120 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$758.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 2.5" height, 120" length, 2.5" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
2.5 in
Product Length Depth:
120 in
Product Weight:
21.404 lb
Product Width:
2.5 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway

B-LINE 22120 G NK – Frequently Asked Questions

1) Does this B-Line trough come with knockouts for conduit, or do I have to punch my own?
No knockouts. The 22120 G NK is supplied blank, so every conduit entry gets field punched or drilled where you want it. If you would rather have factory openings on centers, you need a knockout style trough instead, not the NK version.
2) Is this wireway rated for outdoor or wet locations?
No. The 22120 G NK is a NEMA 1 enclosure, which is indoor, dry location only, general purpose protection against incidental contact and falling dirt. For a rooftop, washdown area, or anywhere water is present you need a NEMA 3R or 4 raintight trough.
3) How does the cover come off for pulling wire, hinged or screws?
Screw cover. The lid is held on with plated screws along its length, so you back them out to open the trough and reinstall them after the pull. That is fine for a one time install or a panel feeder run, but if you expect to be back in the trough often, a hinged cover style is faster to service.
4) How is this B-Line trough mounted to a wall or strut?
Through holes in the back of the trough. You fasten it flat to the wall, to plywood, or to strut using your own bolts or lags, so mounting hardware and anchors are a separate line item on your order. Nothing on the trough clamps or hangs on its own.
5) Is this trough certified for a job that requires listed or certified electrical enclosures?
The 22120 G NK is CSA Certified. That is the only certification carried on the part, so if your specification calls out something else specifically, check the submittal requirement against that.
6) What part number do I order for the 10 foot 2.5 inch B-Line screw cover trough?
Order Eaton B-Line model 22120 G NK. The 22 is the 2.5 by 2.5 inch cross section, 120 is the length in inches, G is the screw cover gutter style and NK means no knockouts.
7) Will this wireway match the gray on my existing panelboards and gutters?
It is finished in ANSI 61 gray, the standard gray used across commercial electrical gear, so it lines up with typical panel and enclosure finishes in a plant or mechanical room rather than standing out as a mismatch.
