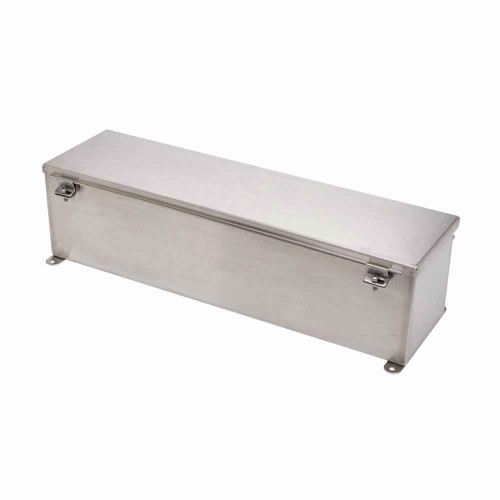

B-Line Eaton series wiring trough, 4" height, 24" length, 4" width, 4XSWT wiring trough, Welded external mounting feet, Hinged cover, 4X, 304 stainle

It is built as a NEMA 4X enclosure in 304 stainless steel with a seamless poured in-place gasket, which is the construction used for wet, outdoor, and hose-down locations where corrosion is a concern. It also carries CSA C22.2 certification. For food plants, car washes, marine and similar environments, that is the reason to choose it over a painted steel trough.

Welded external mounting feet are part of the enclosure, so it bolts straight to a wall, strut, or stand without an add-on bracket kit. Because the feet are outside the box, the 4X seal is not broken by mounting holes through the wiring space. Fasteners into your surface are supplied by you.

The cover is hinged and stays with the body, held by semi-hinges with screw clamps and stainless steel hardware. So you swing it open to pull or land conductors instead of juggling a loose lid on a ladder, and the clamps pull it back down onto the gasket when you close up.

A 4 x 4 trough like the 4424-4XSWT suits splices, taps, and feeder transitions between adjacent panels where conductor count is modest. If you are consolidating many large feeders or need room to train big conductors around a bend, step up to a 6 x 6 or 8 x 8 gutter instead. Fill rules for wireways limit you to 20 percent of the cross sectional area, and a 4 x 4 fills quickly.

14 gauge 304 stainless with a #4 brushed finish. The 14 gauge body is heavy enough to stay square when you are pulling cable through a 24 inch section, and the #4 brushed surface matches the look of stainless panel shops and food-processing equipment already in the room.

Order Eaton B-Line part 4424-4XSWT. The number reads as the size and type: 4 inch by 4 inch cross section, 24 inch length, 4XSWT for the NEMA 4X stainless wiring trough series with hinged cover.
