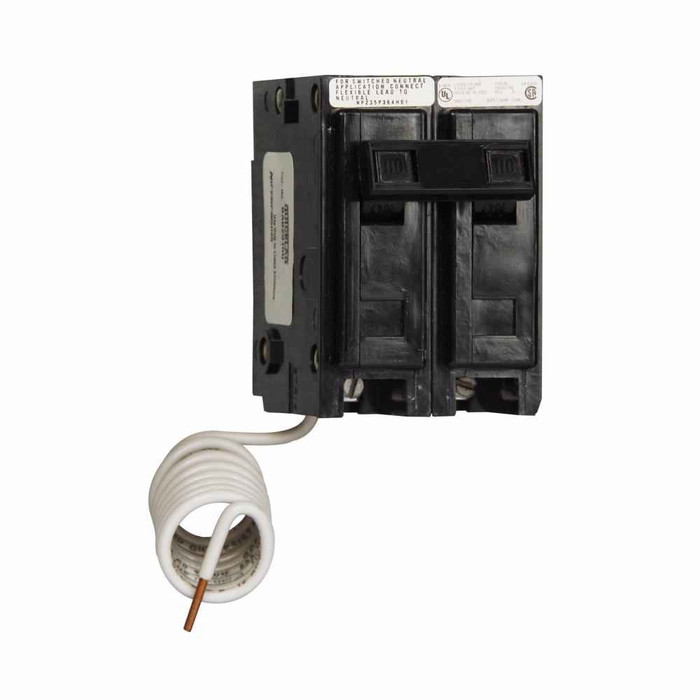

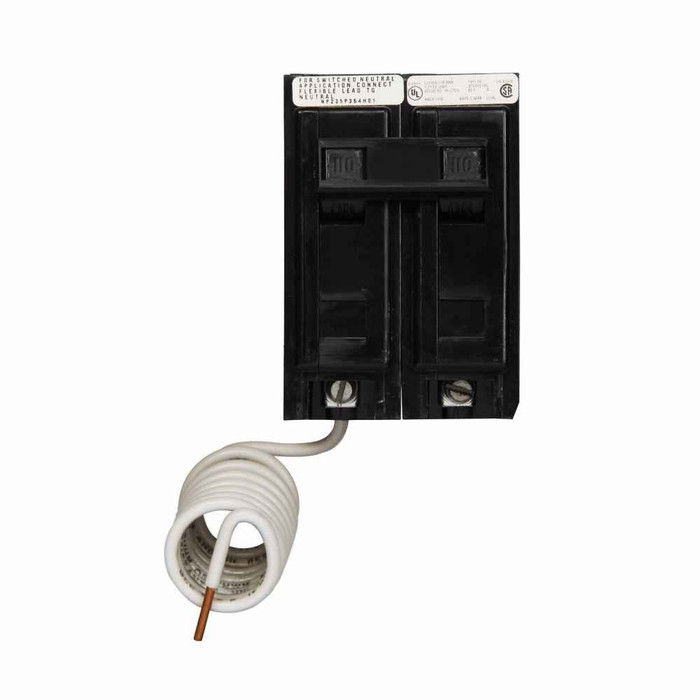

Eaton BAB Thermal Magnetic Circuit Breaker 110A Two-Pole 120/240V Bolt-On Industrial Protection System

Eaton BAB Thermal Magnetic Circuit Breaker 110A Two-Pole 120/240V Bolt-On Industrial Protection System

Professional Industrial Circuit Protection with Quicklag Technology

The Eaton BAB thermal magnetic circuit breaker delivers reliable 110A circuit protection for industrial applications requiring robust two-pole 120/240V electrical safety. This UL Listed circuit breaker features Quicklag industrial thermal-magnetic technology with bolt-on mounting for secure installation and HACR rating for heating, air conditioning, and refrigeration equipment compatibility.

Professional Features & Benefits

• 110A Amperage Rating: Provides substantial current capacity for high-demand industrial circuits and equipment protection.
• Two-Pole Configuration: Delivers simultaneous protection for both hot conductors in 240V applications with coordinated tripping action.
• 10 kAIC Interrupt Rating: Safely interrupts fault currents up to 10,000 amperes for reliable short circuit protection in industrial environments.
• Bolt-On Mounting: Ensures secure mechanical connection to panel bus bars with positive retention under vibration and thermal cycling.
• HACR Rating: Certified for heating, air conditioning, and refrigeration applications with motor starting surge compatibility.
• UL Listed Certification: Meets rigorous safety and performance standards for commercial and industrial electrical installations.
• Quicklag Thermal-Magnetic Technology: Combines thermal overload protection with magnetic short circuit response for comprehensive circuit protection.

Technical Specifications

• Amperage Rating: 110 A
• Catalog Notes: HACR rated
• Certifications: UL Listed
• Circuit Breaker Type: BAB
• Interrupt Rating: 10 kAIC
• Item Quantity: 7
• Mounting Method: Bolt-on
• Number Of Poles: Two-pole
• Product Details: Quicklag industrial thermal-magnetic circuit breaker
• Product Height: 4.8 in
• Product Length Depth: 3.8 in
• Product Weight: .8 lb
• Product Width: 2.2 in
• Special Features: Bolt-on mounting
• Trip Type: Non-Interchangeable
• Voltage Rating: 120/240 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Manufacturing Facilities
• Commercial HVAC Systems
• Refrigeration Equipment Protection
• Motor Control Centers
• Distribution Panel Protection
• Heavy Equipment Circuits
• Process Control Systems

Why Choose Eaton Quality?

Eaton circuit breakers deliver proven reliability with UL Listed certification and robust construction designed for demanding industrial environments. The compact 4.8" x 3.8" x 2.2" design and lightweight 0.8 lb construction provide space-efficient protection while maintaining the durability required for continuous industrial service.
