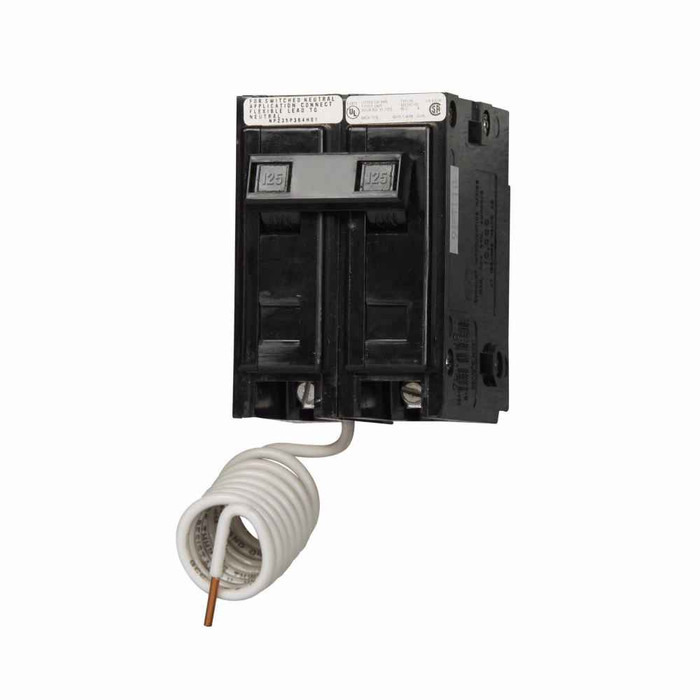

Eaton BAB Thermal Magnetic Circuit Breaker 125A Two-Pole Quicklag Industrial

Eaton BAB Thermal Magnetic Circuit Breaker 125A Two-Pole Quicklag Industrial

Professional Industrial Circuit Protection with HACR Rating

The Eaton BAB thermal magnetic circuit breaker delivers reliable 125A two-pole circuit protection for industrial applications. This Quicklag industrial circuit breaker features bolt-on mounting, 120/240V voltage rating, and HACR rating for heating, air conditioning, and refrigeration equipment protection. UL Listed for professional installations with 10 kAIC interrupt rating and non-interchangeable trip type for consistent performance.

Professional Features & Benefits

• 125A Amperage Rating: Provides robust circuit protection for high-demand industrial loads and equipment.
• Two-Pole Configuration: Delivers simultaneous protection for both conductors in 240V applications.
• 10 kAIC Interrupt Rating: Safely interrupts fault currents up to 10,000 amperes for enhanced system protection.
• HACR Rated: Specifically designed and tested for heating, air conditioning, and refrigeration equipment applications.
• Bolt-on Mounting: Secure mechanical connection ensures reliable contact and prevents accidental disconnection.
• UL Listed: Meets rigorous safety standards for professional electrical installations.
• Quicklag Industrial Design: Engineered for demanding industrial environments with reliable thermal-magnetic operation.

Technical Specifications

• Amperage Rating: 125 A
• Catalog Notes: HACR rated
• Certifications: UL Listed
• Circuit Breaker Type: BAB
• Interrupt Rating: 10 kAIC
• Item Quantity: 7
• Mounting Method: Bolt-on
• Number Of Poles: Two-pole
• Product Details: Quicklag industrial thermal-magnetic circuit breaker
• Product Height: 4.8 in
• Product Length Depth: 3.8 in
• Product Weight: .65 lb
• Product Width: 2.3 in
• Shunt Trip: 120-240V
• Special Features: Bolt-on mounting
• Trip Type: Non-Interchangeable
• Voltage Rating: 120/240 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Manufacturing Facilities
• Commercial HVAC Systems
• Refrigeration Equipment Protection
• Motor Control Centers
• Distribution Panels
• Heavy Equipment Applications
• Process Control Systems

Why Choose Eaton Quality?

Eaton circuit breakers deliver proven reliability with UL Listed certification and HACR rating for specialized applications. The compact design at 4.8" x 3.8" x 2.3" and lightweight .65 lb construction provides professional-grade protection in space-efficient packaging for demanding industrial environments.
