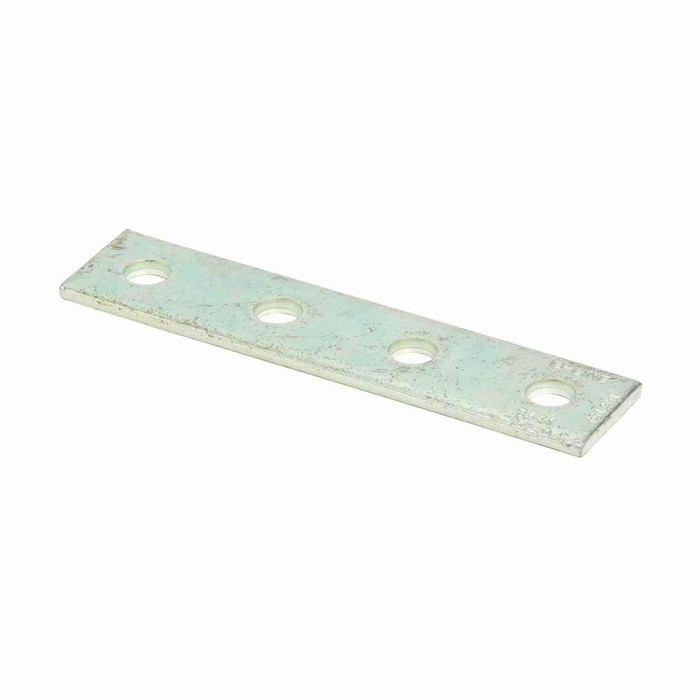

Eaton B-Line Series Four-Hole Splice Plate Steel 7.25" Electro-Plated Zinc Spring Nut System
Professional Steel Splice Plate for Reliable Structural Connections
The Eaton B-Line Series Four-Hole Splice Plate delivers professional-grade structural connectivity with steel construction and electro-plated zinc finish for enhanced corrosion resistance. This 7.25" length splice plate features four mounting holes and spring nut compatibility, providing reliable connection solutions for industrial and commercial applications requiring durable steel hardware.
Professional Features & Benefits
- Steel Construction: Provides exceptional strength and durability for demanding structural applications and long-term reliability.
- Four-Hole Design: Offers multiple mounting points for secure connections and enhanced load distribution across the splice joint.
- Electro-Plated Zinc Finish: Delivers superior corrosion resistance and extended service life in various environmental conditions.
- 7.25" Length: Provides optimal span coverage for effective splice connections while maintaining compact installation profile.
- Spring Nut Compatibility: Enables quick and secure mounting with spring nut systems for efficient installation and maintenance.
- Compact Profile: 1.62" width and height dimensions allow installation in space-constrained applications without compromising performance.
Technical Specifications
- Certifications: Not Applicable
- Product Details: Four hole splice plate
- Product Finish: Electro-plated
- Product Height: 1.62 in
- Product Length Depth: 7.25 in
- Product Material: Steel
- Product Weight: .76 lb
- Product Width: 1.62 in
Installation & Operation
- Mount the splice plate in the designated location ensuring proper alignment with structural members and adequate clearance.
- Position the four mounting holes to align with corresponding connection points on the structural framework.
- Install appropriate fasteners through the mounting holes following applicable structural connection guidelines.
- Secure the splice plate using compatible spring nut systems or standard fastening hardware as specified.
- Verify proper connection integrity and load distribution across all mounting points before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the installation environment.
Professional Applications
- Industrial Structural Systems
- Commercial Building Framework
- Electrical Equipment Mounting
- Mechanical System Support
- Infrastructure Projects
- Manufacturing Facilities
- Utility Installations
Why Choose Eaton Quality?
Eaton B-Line Series splice plates deliver proven reliability through precision steel construction and professional-grade electro-plated zinc finish. The compact yet robust design ensures dependable performance in demanding structural applications while providing the durability and corrosion resistance required for long-term service.
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Details:
- Four hole splice plate
- Product Finish:
- Electro-plated
- Product Height:
- 1.62 in
- Product Length Depth:
- 7.25 in
- Product Material:
- Steel
- Product Weight:
- .76 lb
- Product Width:
- 1.62 in
- Department:
- Electrical
- Product Group:
- Accessories
- Product Type:
- Strut Fitting
