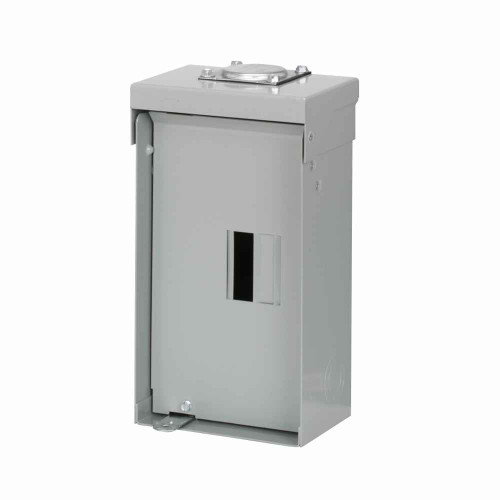

Eaton BR main lug loadcenter,Current design, Neutral/ground holes (6) #14–6 and (3) #14–1/0 AWG Cu/Al,Main lug,125 A,6R,Aluminum,Cover included,NEMA 3R,Metallic,10 kAIC,48 Circuits,Four-pole,24 Spaces,Three-wire,Single-phase,120/240 V
Manufacturer Resources
Product Specs
- Amperage Rating:
- 125 A
- Box Size:
- 6R
- Bus Material:
- Aluminum
- Catalog Notes:
- Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard.
- Certifications:
- UL 67
- Cover:
- Cover included
- Enclosure:
- NEMA 3R
- Enclosure Material:
- Metallic
- Interrupt Rating:
- 10 kAIC
- Number Of Circuits:
- 4
- Number Of Poles:
- Four-pole
- Number Of Spaces:
- 2
- Number Of Wires:
- 3
- Phase:
- Single-phase
- Product Height:
- 21 in
- Product Length Depth:
- 3.88 in
- Product Weight:
- 5 lb
- Product Width:
- 14.31 in
- Special Features:
- Current design
- Type:
- Main lug
- Used With:
- Type BR 1-inch breakers
- Voltage Rating:
- 120/240 V
- Wire Size:
- #14-1/0 AWG Cu/Al
- Product Group:
- Electrical
