Eaton BRHX2100 BR thermal magnetic circuit breaker,Quicklag Type BRHX circuit breaker,100 A,22kAIC,Two-pole,120/240V,BRHX,Non-interchangeable,100,Plug-on,BRHX

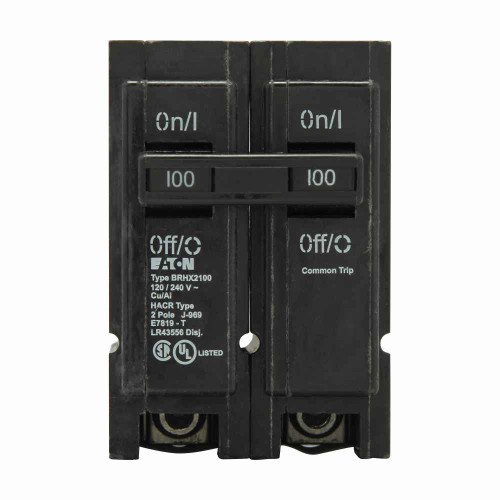

Eaton Circuit Breaker Thermal-Magnetic 100A Two-Pole 120/240V 22kAIC BR Series BRHX Quicklag

(No reviews yet) Write a Review

Model: BRHX2100
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$732.11
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Circuit Breaker Thermal-Magnetic 100A Two-Pole 120/240V 22kAIC BR Series BRHX Quicklag

Professional Electrical Circuit Protection Equipment

The Eaton BR Series BRHX Circuit Breaker delivers exceptional electrical power management and control performance for residential and commercial electrical distribution systems. This 100A two-pole thermal-magnetic circuit breaker provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance Excellence

  • 100 Ampere Rating - High-capacity current handling for demanding residential and commercial electrical loads with reliable thermal-magnetic protection
  • 22kAIC Interrupt Rating - Superior fault current interrupting capacity provides enhanced electrical safety and system protection in high-fault current applications
  • Two-Pole Configuration - Dual-pole design for 240V applications including electric water heaters, air conditioning units, and large appliances
  • 120/240V Voltage Rating - Versatile voltage compatibility for standard residential and light commercial electrical systems

Installation & Protection Features

  • Plug-On Connection - Quick and secure installation with reliable electrical connection to load center bus bars
  • BR Series Compatibility - Designed specifically for Eaton BR series load centers and electrical panels
  • Quicklag Type BRHX Design - Advanced thermal-magnetic trip mechanism for precise overcurrent protection and electrical safety

Technical Specifications

Amperage Rating: 100A, Voltage Rating: 120/240V, Number of Poles: Two-pole, Interrupt Rating: 22kAIC, Circuit Breaker Type: BR, Series: BRHX, Trip Type: Non-interchangeable, Connection Method: Plug-on, Type: Quicklag Type BRHX circuit breaker, Dimensions: 3" H x 2.6" W x 1.9" D, Weight: 0.75 lb, Main Circuit Breaker: BR

Installation & Usage

  1. Verify power is completely disconnected from the electrical panel before installation
  2. Confirm compatibility with BR series load center and available space for two-pole breaker
  3. Align circuit breaker with load center bus bars and press firmly until plug-on connection is secure
  4. Connect circuit wiring to breaker terminals following NEC guidelines and local electrical codes
  5. Test breaker operation and verify proper electrical connection before energizing circuit
  6. Label circuit directory to identify protected electrical loads

Professional Applications

Ideal for:

  • Residential Electrical Systems - Electric water heaters, central air conditioning units, electric ranges, and high-amperage appliances
  • Commercial Load Centers - Small commercial electrical distribution panels and light commercial applications
  • HVAC Equipment Protection - Air conditioning condensers, heat pumps, and electric heating systems
  • Electric Appliance Circuits - Electric dryers, ranges, ovens, and other 240V household appliances
  • Workshop and Garage Circuits - High-amperage outlets for welders, compressors, and heavy-duty equipment
  • Pool and Spa Equipment - Electric pool heaters, spa pumps, and pool equipment electrical protection
  • Electric Vehicle Charging - Level 2 EV charging station electrical protection and power distribution
  • Electrical Panel Upgrades - Replacement and upgrade applications in existing BR series load centers

Thermal-Magnetic Protection Advantage

The thermal-magnetic trip mechanism combines thermal protection for overload conditions with magnetic protection for short-circuit faults, providing comprehensive electrical protection. The thermal element responds to sustained overcurrent conditions while the magnetic element provides instantaneous protection against dangerous fault currents, ensuring reliable electrical safety and equipment protection.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this BR series circuit breaker meets the highest standards for electrical safety and reliability. With comprehensive UL and CSA listings, this circuit breaker provides the trusted performance that electricians, electrical contractors, and facility professionals worldwide depend on for critical electrical protection applications.

Manufacturer Resources

Product Specs

Amperage Rating:
100
Certifications:
Contact Manufacturer
Circuit Breaker Type:
BR
Connection:
Plug-on
Interrupt Rating:
22 kAIC
Main Circuit Breaker:
BR
Mounting Method:
Plug-on
Number Of Poles:
Two-pole
Product Height:
3 in
Product Length Depth:
1.9 in
Product Weight:
.75 lb
Product Width:
2.6 in
Trip Rating:
100
Trip Type:
Non-interchangeable
Type:
Quicklag Type BRHX circuit breaker
Voltage Rating:
120/240 V
Product Group:
Electrical
Department:
Electrical
