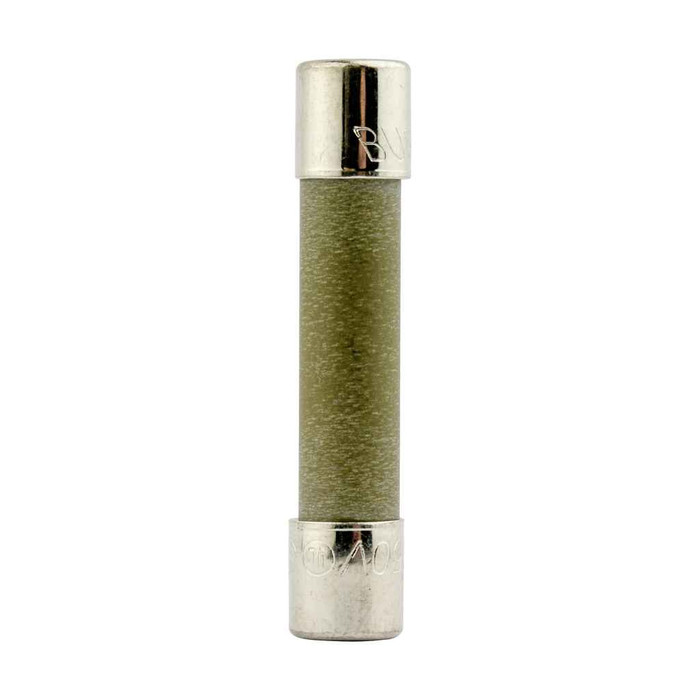

Bussmann ABC-15-R 15A Fast-Acting Electronic Fuse with Ceramic Tube Construction

Bussmann ABC-15-R 15A Fast-Acting Electronic Fuse with Ceramic Tube Construction

Professional Fast-Acting Circuit Protection for Electronic Applications

The Bussmann ABC-15-R delivers reliable 15A fast-acting circuit protection specifically designed for electronic circuits. Featuring ceramic tube construction with nickel-plated brass endcaps and ferrule end connections, this professional-grade fuse provides superior performance with 250 Vac/125 Vdc voltage rating and interrupt ratings up to 10 kAIC at 125 Vac/dc.

Professional Features & Benefits

• 15A Amperage Rating: Provides precise current protection for electronic circuit applications requiring reliable overcurrent protection.
• Ceramic Tube Construction: Enables higher amp/volt rating combinations while delivering superior durability and thermal performance.
• Fast-Acting Response: Delivers quick circuit protection with 4 hr minimum at 100% and 60 min maximum at 135% response characteristics.
• High Interrupt Rating: Handles fault currents up to 750 AIC at 250 Vac and 10 kAIC at 125 Vac/dc for comprehensive protection.
• Dual Voltage Rating: Supports 250 Vac, 125 Vdc, and 32 Vac (self certified) for versatile application compatibility.
• Ferrule End Connections: Provides secure, reliable electrical connections for professional installations.
• Compact Design: 1.25 IN length x .25 IN diameter profile fits standard electronic circuit protection requirements.

Technical Specifications

• Amperage Rating: 15A
• Application: Electronic circuits
• Connection: Ferrule end X ferrule end
• Fuse Indicator: Non Indicating
• Interrupt Rating: 750 AIC at 250 Vac, 10 kAIC at 125 Vac/dc
• Material Type: Ceramic tube, nickel-plated brass endcaps
• Melting L2t : Typical pre-arc: 200.2
• Notes: Ceramic body allows for higher amp/volt rating combinations.
• Packaging Type: Standard
• Product Diameter: .25 IN
• Product Height: .25 IN
• Product Length: 1.25 IN
• Product Type: Electronic
• Product Weight: .006 LB
• Product Width: .25 IN
• Resistance: Typical DC cold: .00553 ohms
• Response Time: 4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200%
• Voltage Drop: Typical: .1mV
• Voltage Rating: 250 Vac, 125 Vdc, 32 Vac (self certified)

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electronic Circuit Protection
• Control Panel Applications
• Instrumentation Systems
• Power Supply Protection
• Industrial Electronics
• Commercial Electronic Equipment
• Automation Systems

Why Choose Bussmann Quality?

Bussmann delivers proven reliability through ceramic tube construction and nickel-plated brass endcaps that provide superior durability and performance. The fast-acting response characteristics and high interrupt ratings ensure comprehensive circuit protection, while the compact design and ferrule end connections support professional installation requirements across diverse electronic applications.
