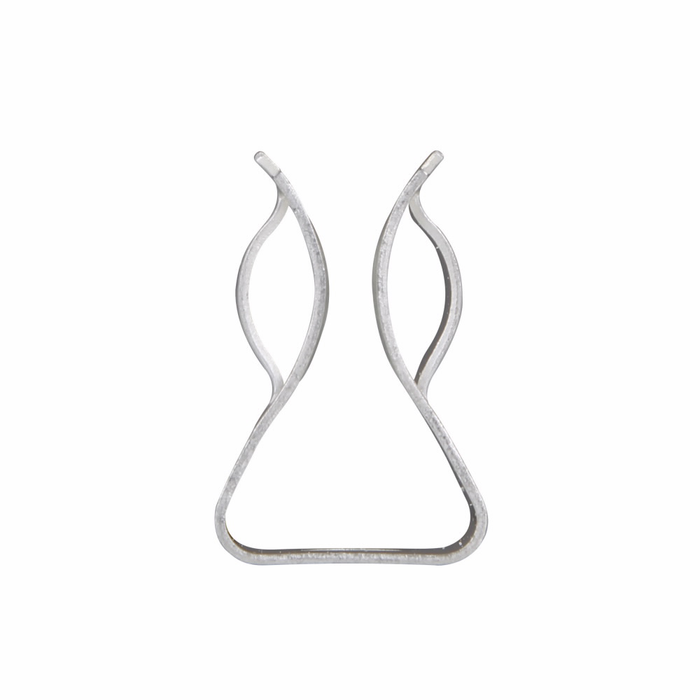

Bussmann 5960-07 Eaton series fuse clip, Surge protection device, With end stop, NEMA 1, Non-indicating, 400 kAIC, Beryllium copper|Silver finish, Used with 13/32" diameter fuses

Bussmann 5960-07 Eaton series fuse clip, Surge protection device, With end stop, NEMA 1, Non-indicating, 400 kAIC, Beryllium copper|Silver finish, Used with 13/32" diameter fuses

(No reviews yet) Write a Review

Model: 5960-07
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54.93
$5.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 5960-07 Eaton series fuse clip, Surge protection device, With end stop, NEMA 1, Non-indicating, 400 kAIC, Beryllium copper|Silver finish, Used with 13/32" diameter fuses.

  • Interrupt rating: 300 kAIC
  • Product type: Surge protection device
  • Dimensions (L x W x H): 0.4 x 0.46 x 0.7 in

Genuine Bussmann part number 5960-07.

Manufacturer Resources

Product Specs

Compliances:
RoHS Compliant
Fuse Indicator:
Non-indicating
Interrupt Rating:
300 kAIC
Product Height:
.7 in
Product Length Depth:
.4 in
Product Weight:
.51 lb
Product Width:
.46 in
Special Features:
With end stop, NEMA 1
Used With:
Used with 13/32" diameter fuses
Product Group:
Surge Protection Devices
Department:
Electrical
Product Subgroup:
SPD
Product Type:
Surge protection device
Product Details:
Surge protection device
Product Material:
Silver finish

Bussmann 5960-07 – Frequently Asked Questions

1) Does the Bussmann 5960-07 fuse clip have an end stop?
It does. The end stop keeps the fuse from sliding through the clip lengthwise, so the ferrule seats in the same position every time. On a two-clip mount you typically use end-stop clips to locate the fuse, which matters when you are building a panel and want consistent centering.
2) What is the interrupting rating on the Bussmann 5960-07?
300 kAIC. That is the figure to check against the available fault current at the point of installation before you spec the clip into an assembly.
3) Does the Bussmann 5960-07 clip give any visual indication when the fuse blows?
No. It's a non-indicating clip, so there's no blown-fuse flag or light. If your maintenance crew needs to spot an open fuse without pulling it, you'll want an indicating fuse or a separate blown-fuse indicator in the circuit.
4) Do I order one 5960-07 or two per fuse?
A fuse needs a clip at each ferrule, so budget two per fuse holder position. The 5960-07 is sold as the clip itself under Bussmann part number 5960-07; mounting screws and the base or panel are separate.
5) Is the 5960-07 fuse clip RoHS compliant?
Yes, the 5960-07 is listed as RoHS compliant, which is usually what institutional and OEM procurement is checking for on submittals.
6) What is the Bussmann 5960-07 clip made of and why does the finish matter?
Silver finish is what's specified for the 5960-07. A silver-plated contact surface keeps contact resistance low at the ferrule, which is the difference between a clip that runs cool and one that heats and loses grip over time.
