Bussmann 5960-09 Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$55.80
$6.69

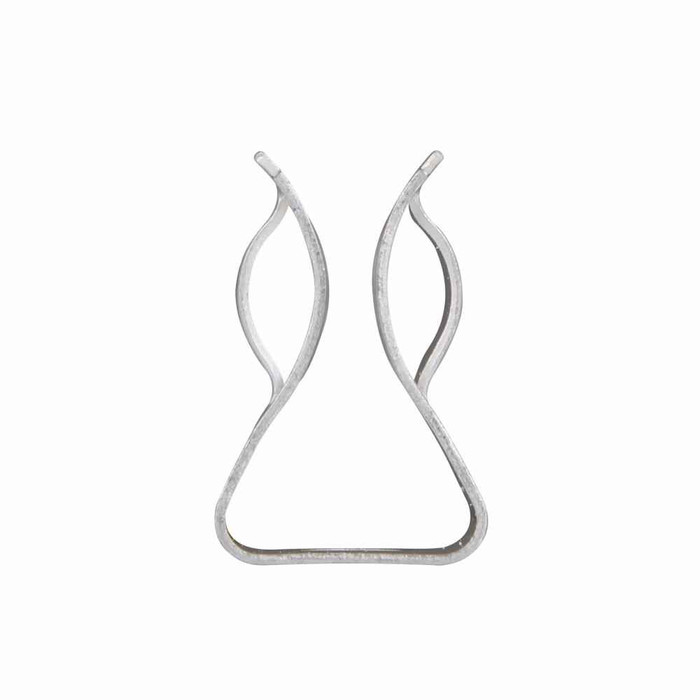

Bussmann 5960-09 Eaton series fuse clip, Surge protection device, With end stop, NEMA 4X, Non-indicating, 300 kAIC, Beryllium copper|Silver finish, Used with 13/32" diameter fuses

Bussmann 5960-09 Eaton series fuse clip, Surge protection device, With end stop, NEMA 4X, Non-indicating, 300 kAIC, Beryllium copper|Silver finish, Used with 13/32" diameter fuses

(No reviews yet) Write a Review

Model: 5960-09
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.80
$6.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 5960-09 Eaton series fuse clip, Surge protection device, With end stop, NEMA 4X, Non-indicating, 300 kAIC, Beryllium copper|Silver finish, Used with 13/32" diameter fuses.

  • Interrupt rating: 300 kAIC
  • Product type: Surge protection device
  • Dimensions (L x W x H): 0.4 x 0.46 x 0.7 in

Genuine Bussmann part number 5960-09.

Manufacturer Resources

Product Specs

Compliances:
RoHS Compliant
Fuse Indicator:
Non-indicating
Interrupt Rating:
300 kAIC
Product Height:
.7 in
Product Length Depth:
.4 in
Product Weight:
.51 lb
Product Width:
.46 in
Special Features:
With end stop, NEMA 4X
Used With:
Used with 13/32" diameter fuses
Product Group:
Surge Protection Devices
Department:
Electrical
Product Subgroup:
SPD
Product Type:
Surge protection device
Product Details:
Surge protection device
Product Material:
Silver finish

Bussmann 5960-09 – Frequently Asked Questions

1) Is the Bussmann 5960-09 rated for a high fault-current panel?
It carries a 300 kAIC interrupt rating, which covers high available fault current service equipment and industrial distribution. The actual interrupting duty at the fuse position is still set by the fuse you install, so pair it with a fuse rated for your available fault current.
2) Does the Bussmann 5960-09 clip have an end stop, and why does that matter?
Yes, the 5960-09 is the end stop version. The stop keeps the fuse from sliding axially out of the clip pair, so it holds ferrule fuses in position in a panel or block where nothing else captures the ends. If your existing clips are the plain style without a stop, note the fuse will seat slightly differently in the holder.
3) What is the 5960-09 fuse clip made of and will it hold tension over time?
Beryllium copper with a silver finish. Beryllium copper is the spring material, which is why these clips keep clamping force on the fuse ferrule through repeated fuse changes and thermal cycling; the silver plating keeps contact resistance low at the ferrule.
4) Will this Bussmann clip tell me when the fuse has blown?
No. The 5960-09 is non-indicating, so there is no blown-fuse flag, pin, or lamp circuit in the clip. If your maintenance crew needs visual fault indication at the panel, you need an indicating fuse holder or an indicating fuse, not this clip.
5) Can I use the 5960-09 in a washdown or outdoor enclosure?
The 5960-09 is specified NEMA 4X, so it is suited to enclosures rated for washdown, corrosion, and hose-directed water. The clip itself is not the seal, the enclosure is, so the 4X protection only holds if the housing it sits in is 4X rated and properly closed.
6) Does this Bussmann part meet RoHS for our facility spec?
Yes, the 5960-09 clip is RoHS compliant, which is usually what institutional and OEM procurement is checking for on a hardware line item like this.
7) How do I make sure I am ordering the right Bussmann fuse clip?
Order by manufacturer part number 5960-09. Within the Eaton Bussmann clip range the variations are fuse diameter, presence of an end stop, and plating, so the number is what separates this one from the adjacent models. This one is the 13/32 inch, end stop, silver finish version.
