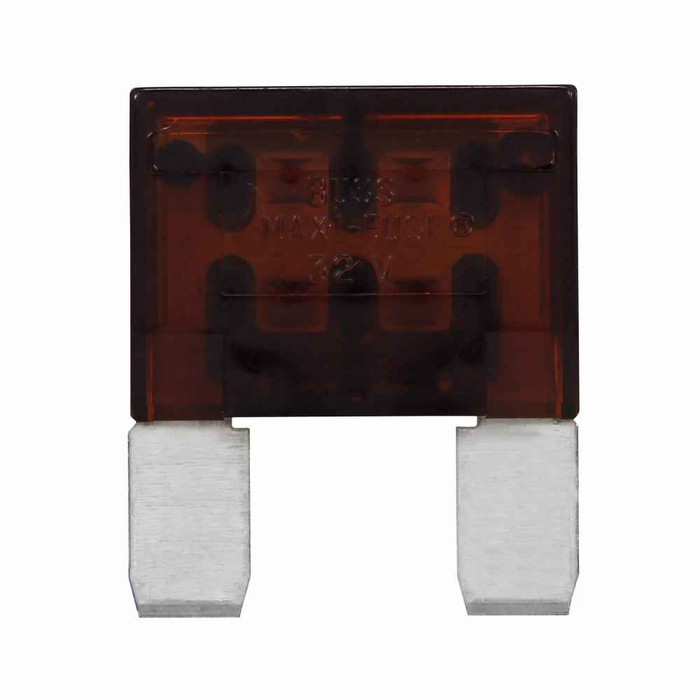

Bussmann MAX-70 Eaton series MAX MAXI fuse, Color code tan, 32 Vdc, 70A, 1 kAIC, Non Indicating, MAXI fuse, Blade end, Colored plastic housing, zinc fuse element.
- Amp rating: 70 A
- Interrupt rating: 1 kAIC
- Product type: Fuse
- Dimensions (L x W x H): 1.15 x 0.35 x 1.35 in
Genuine Bussmann part number MAX-70.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 70A
- Compliances:
- Contact factory
- Connection:
- Blade end
- Fuse Indicator:
- Non-indicating
- Interrupt Rating:
- 1 kAIC
- Packaging Type:
- Standard
- Product Height:
- 1.35 in
- Product Length Depth:
- 1.15 in
- Product Weight:
- .31 lb
- Product Width:
- .35 in
- Special Features:
- Color code tan
- Voltage Rating:
- 32 Vdc
- Department:
- Electrical
- Product Material:
- Colored plastic housing
- Product Type:
- Blade Fuse
- Product Group:
- Circuit Protection
- Product Subgroup:
- Fuses
- Product Length:
- 1.15 in
Bussmann MAX-70 – Frequently Asked Questions
1) Will the Bussmann MAX-70 fit a MAXI fuse block or holder?
Yes. The MAX-70 is a MAXI-format blade fuse, so it drops into any MAXI (also called APX) blade holder or fuse block. Body size is 1.15 x 0.35 x 1.35 inches with blade terminals, which is the standard MAXI footprint. It will not fit ATO/ATC regular blade, MINI, or Low Profile MINI sockets.
2) Can I use the MAX-70 fuse on a 24 volt truck or equipment circuit?
Yes. The MAX-70 is rated 32 Vdc, which covers 12 V and 24 V DC systems, including automotive, truck, bus, and most battery and solar DC loads. It is a DC-rated fuse only, so don't put it on an AC branch circuit.
3) What does the tan color on a MAXI fuse mean?
Tan is the color code for the 70 amp MAXI fuse. Bussmann color-codes the MAX series housing by amperage so you can confirm the rating at a glance in a crowded fuse block without pulling the fuse. The MAX-70 is the tan one.
4) What is the exact part number to reorder this 70 amp Bussmann MAXI fuse?
Order it as Bussmann MAX-70, part of the Eaton MAX MAXI series. That number carries the 70 A rating and the tan housing. Amperage is the only thing that changes across the series, so a different MAX-xx number is a different amp rating, not a different fit.
5) Does the MAX-70 have a blown-fuse indicator light?
No. The MAX-70 is non-indicating, so there's no LED or pop-up flag. You check it by eye through the tan plastic housing or with a meter across the blades. If you need visual fault indication at the panel, specify an indicating fuse or a holder with an indicator.
