Bussmann TB100-12B Eaton TB100...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$114.63
$75.19

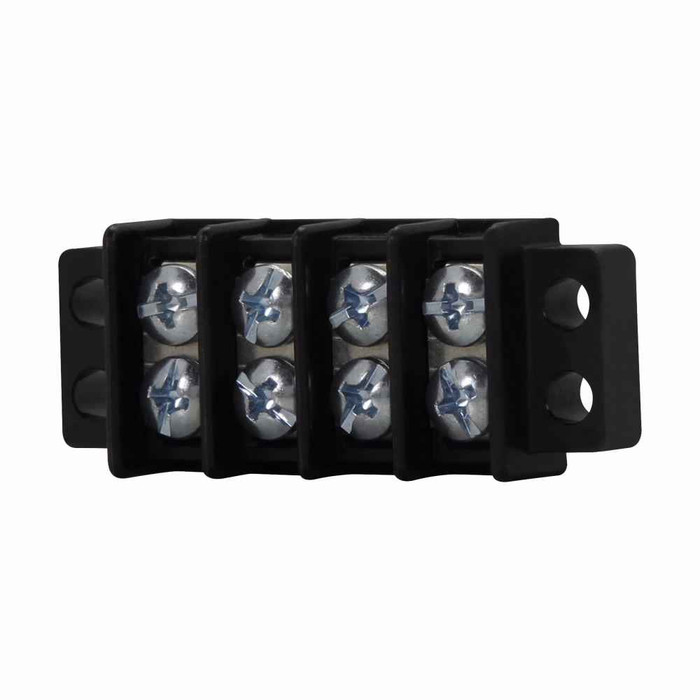

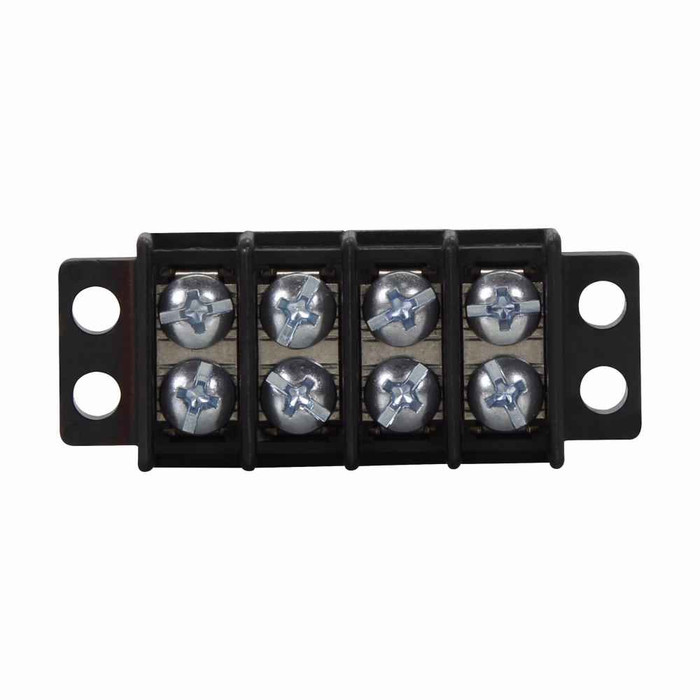

Bussmann TB100-12B Eaton TB100 series panel mount terminal block connector, Breakdown voltage 3600V, 300V, 30A, Double row, barrier, Twelve-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Nickel-plated brass philslot screw

Bussmann TB100-12B Eaton TB100 series panel mount terminal block connector, Breakdown voltage 3600V, 300V, 30A, Double row, barrier, Twelve-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Nickel-plated brass philslot screw

(No reviews yet) Write a Review

Model: TB100-12B
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$114.63
$75.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann TB100-12B Eaton TB100 series panel mount terminal block connector, Breakdown voltage 3600V, 300V, 30A, Double row, barrier, Twelve-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Nickel-plated brass philslot screw.

  • Amp rating: 100 A
  • Voltage rating: 3600 V
  • Product type: Double row, barrier
  • Dimensions (L x W x H): 2.16 x 0.88 x 0.41 IN

Genuine Bussmann part number TB100-12B.

Manufacturer Resources

Product Specs

Amperage Rating:
30A
Certifications:
Contact Manufacturer
Compliances:
RoHS Compliant
Connection:
#6-32 TPI Screw
Number Of Poles:
Twelve-pole
Operating Temperature:
-40° to 130°C
Product Height:
.41 IN
Product Length Depth:
2.16 IN
Product Weight:
.43 LB
Product Width:
.88 IN
Special Features:
Breakdown voltage 3600V
Torque Rating:
9 lb-in
Voltage Rating:
300V
Product Group:
0
Department:
Electrical
Product Subgroup:
0
Product Type:
Double row, barrier
Product Details:
Double row, barrier
Product Color:
Black
Mounting Method:
Screw
Product Material:
Tin-plated brass terminal, Nickel-plated brass philslot screw

Bussmann TB100-12B – Frequently Asked Questions

1) How many circuits can I land on a Bussmann TB100-12B terminal block?
Twelve poles, arranged as a double row barrier strip, so you get twelve separate circuits with a screw connection on each side of the barrier. The barriers between poles are what keep adjacent conductors from shorting in a tight panel, and the double row layout means each pole has a feed side and a load side rather than being a single-row splice point.
2) What size ring or spade terminals do I need for the TB100-12B terminal block?
The screws are #6-32, so use ring or fork terminals sized for a #6 stud. The screws themselves are nickel-plated brass with a phillips/slotted (philslot) drive, so a #1 or #2 phillips or a small flat blade both work on the same head.
3) What torque should I use on the terminal screws of a Bussmann TB100 series block?
9 lb-in on the terminal screws. That is low enough that a nut driver by feel will overshoot it on a brass #6-32 screw, so use an inch-pound driver. Under-torquing is what causes the hot joints you find later on a thermal scan.
4) Will this terminal block hold up in an unheated outdoor enclosure or a hot mechanical room?
Operating range is -40 to 130 degrees C, which covers unconditioned outdoor cabinets in cold climates as well as boiler and rooftop equipment enclosures. The terminals are tin-plated brass, a plating normally chosen to keep the contact surface from oxidizing over that kind of cycling.
5) Is a barrier strip like this the right choice, or should I be using DIN rail terminal blocks?
A barrier strip like the TB100-12B is a fixed twelve-pole block that screws directly to the panel, so the pole count is set when you buy it and you cannot add a pole later. DIN rail blocks are the other approach: individual poles that slide on a rail and can be added, removed, or re-grouped. Pick the barrier strip when the circuit count is fixed, the enclosure has no rail, and you want feed and load on opposite sides of an insulating barrier. Pick DIN rail when the panel is likely to grow.
6) Is the Bussmann TB100-12B RoHS compliant for a spec that requires it?
Yes, the TB100-12B is RoHS compliant. That is usually the box institutional and government procurement needs checked on controls hardware, and it is consistent with the tin-plated brass terminals and nickel-plated brass screws used on the part.
