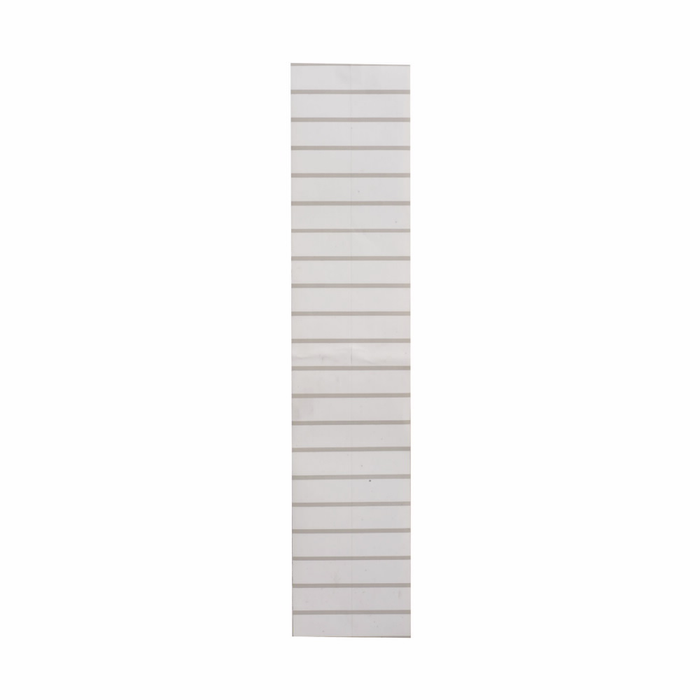

Eaton CH Circuit Marking Strip for Loadcenters
The Eaton CH Circuit Marking Strip is a purpose-built labeling accessory used with Type CH Style 3/4 in Loadcenter and Breakers, giving electricians and facility staff a clean, organized way to identify individual circuits at the panel. Sized at 7 in wide by 4 in deep with a low-profile .01 in height, this marking strip mounts next to breakers for quick, at-a-glance circuit identification. It is rated for use in three-phase, 225 A systems with a 10 kAIC interrupt rating and is housed for NEMA 1 enclosure applications, and it carries UL 489 recognition consistent with the CH breaker line it supports.
Key Features
- Compact Dimensions: Measures 7 in wide x 4 in deep with a slim .01 in profile for easy placement next to breakers.
- Purpose-Built Compatibility: Designed for use with Type CH Style 3/4 in Loadcenter and Breakers for accurate circuit identification.
- Marking Strip Type: Dedicated circuit marking strip that keeps panel labeling neat and code-organized.
- Electrical System Rating: Supports three-phase, 225 A systems with a 10 kAIC interrupt rating for demanding panel environments.
- Aluminum Bus Compatibility: Matched to aluminum bus loadcenter systems for consistent performance.
- NEMA 1 Enclosure Rating: Suited for standard indoor panel enclosure applications.
- Catalog Placement: Installs next to breakers per manufacturer catalog notes for straightforward field labeling.
Certifications & Compliance
- UL 489
- NEMA 1 Enclosure Rated
Technical Specifications
- Product Type: Load Center
- Warranty: Limited lifetime
- Main circuit breaker: CH
Typical Applications
- Residential and Light Commercial Loadcenter Installations
- Circuit Identification and Labeling at the Panel
- Panelboard and Breaker Organization
- Electrical Panel Maintenance and Upgrades
- New Construction and Renovation Projects
Why Eaton?
Eaton backs the CH loadcenter and breaker system with UL 489 recognition and a limited lifetime warranty, giving electrical professionals confidence in long-term, code-compliant panel labeling. Choosing genuine Eaton CH accessories like this circuit marking strip helps maintain accurate, organized circuit identification across three-phase, 225 A installations. It's a simple, reliable way to keep panels clearly labeled and easier to service over time.
Manufacturer Resources
Product Specs
- Product Width:
- 7 in
- Amperage Rating:
- 225A
- Product Length/Depth:
- 4 in
- Special Features:
- Used with Type CH Style 3/4 in Loadcenter and Breakers
- Product Height:
- .01 in
- Product Type:
- Panel Directory
- Phase:
- Three-phase
- Warranty:
- Limited lifetime
- Catalog Notes:
- Next to breakers
- Main Circuit Breaker:
- CH
- Interrupt Rating:
- 10 kAIC
- Bus Material:
- Aluminum
- Configuration:
- NEMA 1 Enclosure
- Certifications:
- UL 489
- Department:
- Electrical
- Product Material:
- Aluminum
- Standards:
- UL 489
- Product Group:
- Cable Management & Identification
- Product Subgroup:
- Wire Markers & Labels
- Product Weight:
- 0.01 lb
- Product Length:
- 4 in
Eaton CHMS – Frequently Asked Questions
1) Will the Eaton CHMS marking strip fit an Eaton BR loadcenter, or is it CH only?
The CHMS strip is built for Eaton Type CH Style 3/4 inch loadcenters and breakers. It is not a BR accessory. If your panel is a BR-series load center, this strip is the wrong part; match the marking strip to the CH breaker line the panel uses.
2) How much room do I need inside the panel for the Eaton CHMS circuit marking strip?
Plan for a 7 inch by 4 inch footprint with a .01 inch profile, so it sits essentially flush and does not interfere with the deadfront or cover. Eaton's placement note is to install it next to the breakers, in the column beside the breaker handles.
3) What amperage and interrupt rating is the Eaton CHMS marking strip matched to?
It is catalogued against three-phase CH systems at 225 A with a 10 kAIC interrupt rating, and aluminum bus. That matters when you are standardizing accessories across a building: if your CH panel is part of that 225 A three-phase aluminum-bus family, the CHMS is the strip specified for it.
4) Can I use this Eaton marking strip in an outdoor panel?
No. The CHMS is specified for NEMA 1 enclosure applications, which is indoor, dry-location use only. For an exterior or wet-location panel you need a rainproof enclosure rating (NEMA 3R), and the strip inside it should be the one Eaton lists for that panel.
5) Which Eaton part number do I order for a CH loadcenter circuit marking strip?
Order catalog number CHMS. It is a single-configuration item, so there are no finish or size choices to specify, just the one part.
6) Is the Eaton CHMS a paper label or a metal strip?
It is an aluminum strip, not a stick-on paper card. That is what lets it stay legible and intact inside a live panel over years of service calls, rather than curling or yellowing the way an adhesive label does.
7) Does the Eaton CHMS carry any UL listing for panel use?
UL 489 is the standard cited for the CHMS, consistent with the CH breaker line it supports. That is the branch-circuit breaker standard, so the strip is catalogued as part of that listed CH system rather than as a loose aftermarket accessory.
