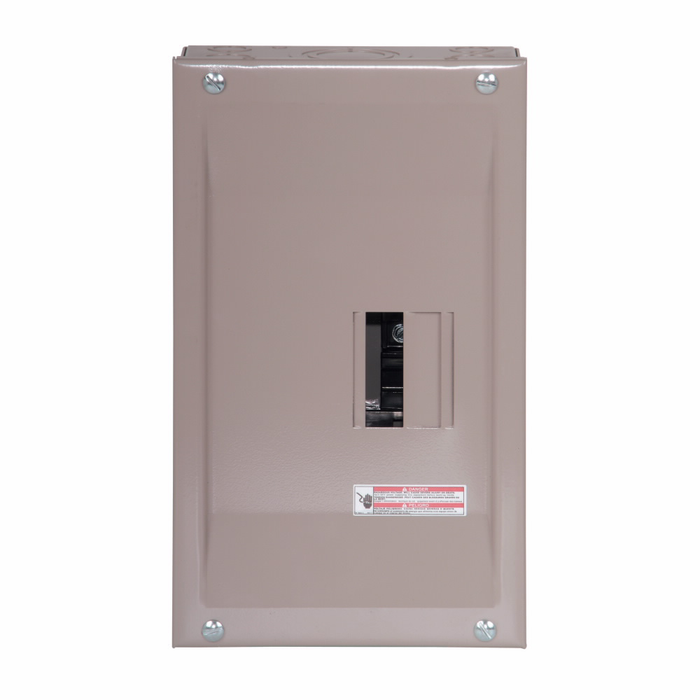

Eaton CH 125A Main Lug Loadcenter, Copper Bus, NEMA 3R

Eaton CH 125A Main Lug Loadcenter, Copper Bus, NEMA 3R

(No reviews yet) Write a Review

Model: CH2L125SP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$79.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton CH 125A Main Lug Loadcenter, Copper Bus, NEMA 3R

The Eaton CH 125A Main Lug Loadcenter is a main lug only load center engineered for single-phase 120/240V electrical service, featuring a durable copper bus for dependable conductivity. Built with a metallic enclosure carrying a NEMA 3R rating, this Eaton CH-series loadcenter is designed for overhead feed installations and stands up to outdoor exposure. With a four-pole, three-wire configuration, 2 circuits, and 2 spaces, it delivers a compact, code-compliant distribution solution for residential and light commercial applications.

Key Features

  • Amperage Rating: Rated 125A for dependable single-phase 120/240V power distribution.
  • Durable Construction: Copper bus bar delivers superior conductivity and reduced heat buildup versus lower-grade alternatives.
  • Main Lug Only Design: CH-series main lug only configuration supports four-pole, three-wire branch circuit wiring without a main breaker.
  • Interrupt Rating: 25 kAIC interrupt rating provides robust short-circuit protection for the connected system.
  • Wire Range: Accommodates #14-1/0 AWG conductors for flexible branch circuit sizing.
  • NEMA 3R Enclosure: Metallic NEMA 3R enclosure is built for overhead, outdoor, and wet-location service entrances.
  • Compact Configuration: 2 circuits and 2 spaces suit space-conscious service and sub-panel applications.

Certifications & Compliance

  • NEMA 3R Rated Enclosure
  • Suitable for Overhead and Wet-Location Installations

Technical Specifications

  • Product Type: Load Center
  • Number of circuits: 2
  • Warranty: Limited lifetime
  • Main circuit breaker: CH
  • Number of spaces: 2
  • Number of wires: 3

Typical Applications

  • Residential and Light Commercial Service Upgrades
  • Outdoor and Overhead Service Entrances
  • Sub-Panel and Branch Circuit Distribution
  • Renovation and New Construction Electrical Service
  • Panelboard and Load Center Wiring

Why Eaton?

Eaton backs the CH series with a limited lifetime warranty, copper bus construction, and a NEMA 3R metallic enclosure built for demanding overhead and outdoor installations. For electrical professionals who need reliable, code-compliant power distribution, this Eaton CH main lug loadcenter delivers consistent performance backed by decades of Eaton engineering.

Manufacturer Resources

Product Specs

Voltage Rating:
120/240V
Product Type:
Load Center
Phase:
Single-phase
Number of circuits:
2
Warranty:
Limited lifetime
Main circuit breaker:
CH
Bus material:
Copper
Number Of Poles:
Four-pole
Enclosure material:
Metallic
Number of spaces:
2
Interrupt rating:
25 kAIC
Number of wires:
3
Special features:
Standard
Department:
Electrical
Product Material:
Copper
Amperage Rating:
125A
Configuration:
Main Lug Only
Standards:
NEMA 3R
Series:
CH
Product Group:
Power Distribution
Product Subgroup:
Panelboards & Load Centers

Eaton CH2L125SP – Frequently Asked Questions

1) Does the Eaton CH2L load center come with a main breaker?
No. The Eaton CH 2-space load center is main lug only, so the feed lands on lugs and there is no main breaker in the can. Overcurrent protection for the panel has to come from upstream, typically the breaker feeding it. That makes it a sub-panel or a service arrangement where the disconnect lives elsewhere.
2) Can the Eaton CH2L load center be mounted outdoors?
Yes, the enclosure is NEMA 3R and metallic, which covers outdoor and overhead service locations where rain and falling water are the exposure. It is not a washdown or submersion rating.
3) How many breakers fit in the Eaton CH 125A main lug loadcenter?
Two spaces, two circuits. It takes Eaton CH type breakers. If you need more than a couple of branch circuits, this is the wrong size panel, it is built for a small feed such as a well pump, a spa, a garage, or a single piece of equipment.
4) What amperage and mounting options does the Eaton CH2L two-space panel come in?
Four combinations: 125A raintight (CH2L125RP), 125A surface (CH2L125SP), 40A surface (CH2L40SP), and 70A flush (CH2L70FP). Pick the amperage to match the feeder and the mounting to match the wall, flush for finished drywall, surface for exposed, raintight for exterior.
5) What size conductors can I land in the lugs of the Eaton CH2L?
The lugs take #14 through 1/0 AWG, which covers a small 40A feeder up to conductors sized for the 125A rating. Check your feeder size against that range before you pull wire.
6) Does this Eaton panel accept BR breakers?
No. It is a CH series load center and takes CH type breakers, which are a different frame than Eaton's BR line. The two are not interchangeable in the bus.
7) Will this Eaton panel work on 120/240V single-phase residential service?
That is exactly what it is rated for, 120/240V single-phase, three wire. It will not serve a three-phase system. The bus is copper.
8) What short circuit current rating does the Eaton CH main lug loadcenter have?
25 kAIC. That matters when the panel sits close to a utility transformer or a large service where available fault current is high, the panel and its breakers have to be rated at or above the calculated fault current at that point.
9) Can I use this Eaton CH load center as a sub-panel off my existing main panel?
Yes, and that is a common use. Being main lug only, it is fed from a breaker in the upstream panel, which provides the overcurrent protection. As a sub-panel you keep neutrals and grounds separated and land the feeder on the lugs, sized within the #14 to 1/0 AWG range.
