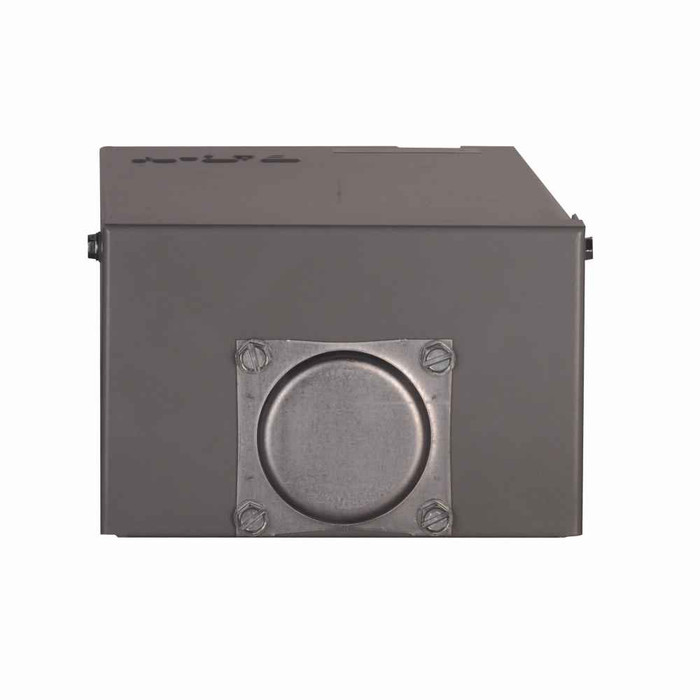

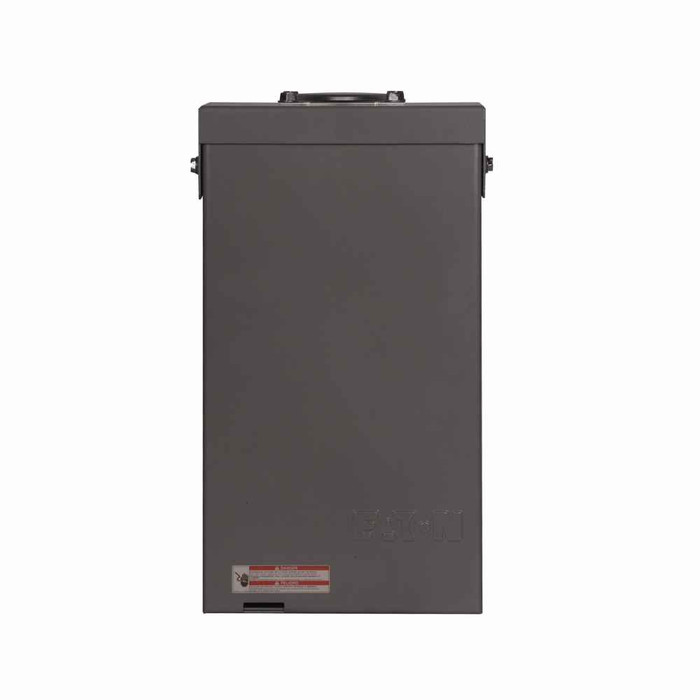

Eaton CH 125A 6-Circuit Main Lug Load Center with NEMA 3R Metallic Enclosure

Eaton CH 125A 6-Circuit Main Lug Load Center with NEMA 3R Metallic Enclosure

Professional electrical distribution for outdoor and wet location applications

The Eaton CH 125A 6-Circuit Main Lug Load Center delivers reliable single-phase electrical distribution with NEMA 3R metallic enclosure protection. This main lug only configuration provides 125A service rating with copper bus construction and 25 kAIC interrupt rating for professional electrical installations requiring weather-resistant performance.

Professional Features & Benefits

• 125A Service Rating: Handles substantial electrical loads for residential and light commercial applications with reliable capacity management.
• NEMA 3R Metallic Enclosure: Provides superior weather protection and durability for outdoor installations and wet locations.
• Copper Bus Construction: Ensures excellent conductivity and long-term reliability with superior corrosion resistance.
• 25 kAIC Interrupt Rating: Delivers robust fault current protection for enhanced electrical system safety.
• 6-Circuit Configuration: Offers flexible circuit distribution with six spaces for comprehensive load management.
• UL 67 Listed: Meets rigorous safety standards for professional electrical installations and code compliance.
• Padlockable Door: Provides security features with lockout capability for unauthorized access prevention.

Technical Specifications

• Amperage Rating: 125 A
• Box Size: 5R
• Bus Material: Copper
• Catalog Notes: Padlockable door. Hub closure plate provided as standard. Single keyhole, two-or three-point mounti
• Certifications: UL 67
• Enclosure: NEMA 3R
• Enclosure Material: Metallic
• Interrupt Rating: 25 kAIC
• Main Circuit Breaker: CH
• Number Of Circuits: 6
• Number Of Poles: Six-pole
• Number Of Spaces: 6
• Number Of Wires: 3
• Phase: Single-phase
• Product Details: Main lug only
• Product Height: 4.5 in
• Product Length Depth: 11.75 in
• Product Weight: 7.25 lb
• Product Width: 6.5 in
• Special Features: Cover included
• Voltage Rating: 120/240V, 208Y/120, 240V
• Wire Size: #8-2 AWG

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service panels for outdoor installations
• Light commercial facilities requiring weather-resistant distribution
• Pool and spa electrical systems with wet location requirements
• Outdoor lighting and power distribution systems
• Agricultural and industrial applications with environmental exposure
• Emergency and backup power distribution systems

Why Choose Eaton Quality?

Eaton load centers provide dependable electrical distribution with UL 67 certification and robust NEMA 3R metallic construction. The copper bus design and 25 kAIC interrupt rating ensure long-term reliability and safety in demanding applications, backed by professional-grade engineering and manufacturing standards.
