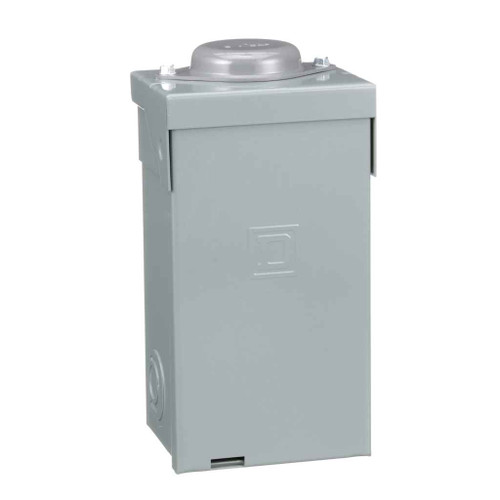

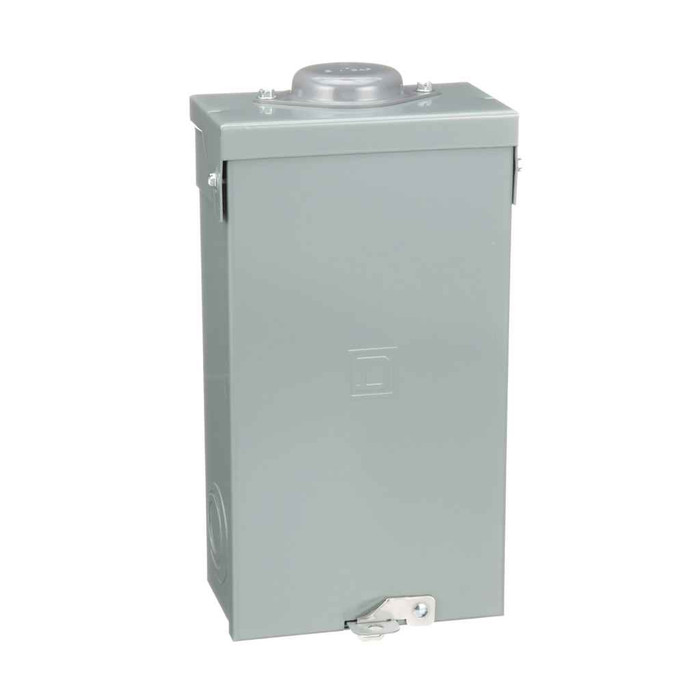

Schneider Electric QO 3-Phase Circuit Breaker Enclosure 100A 3-Space NEMA 3R Main Lug Load Center

Schneider Electric QO 3-Phase Circuit Breaker Enclosure 100A 3-Space NEMA 3R Main Lug Load Center

Professional 3-Phase Power Distribution for Residential Applications

The Schneider Electric QO 3-Phase Circuit Breaker Enclosure delivers reliable 100A power distribution in a compact 3-space configuration. Featuring welded galvannealed steel construction with NEMA 3R rating for outdoor applications, this main lug load center provides professional-grade electrical distribution for residential installations requiring 3-phase power management.

Professional Features & Benefits

• 100A Line Rating: Handles substantial electrical loads with reliable current capacity for demanding residential applications
• 3-Phase Configuration: Provides balanced power distribution for motors, HVAC systems, and other 3-phase equipment
• NEMA 3R Enclosure: Weather-resistant protection allows safe outdoor installation in various environmental conditions
• Welded Galvannealed Steel Construction: Durable material provides long-lasting corrosion resistance and structural integrity
• Main Lug Design: Flexible installation options for utility connections without requiring a main breaker
• Compact 3-Space Layout: Efficient use of space while accommodating essential circuit protection needs
• QO Series Compatibility: Integrates seamlessly with Schneider Electric QO circuit breakers and accessories

Technical Specifications

• Box Number: 10R
• Carbon Footprint: 28.19898657
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 28.19898657
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Cover Type: surface cover
• Device Composition: grounding bar (ordered separately)
• Distribution Carbon Footprint: 1.240591071
• Enclosure Material: welded galvannealed steel
• Enclosure Type: enclosure
• End Of Life Carbon Footprint: 0.384791019
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Html Descr: Load center enclosure, QO, 3 phase, 3 spaces, used with 100A breaker, NEMA3R, ULProduct or componen
• Installation Carbon Footprint: 0.002895831
• Legacy Weee Scope: In
• Line Rated Current: 100 A
• Load Center Type: main lugs
• Manufacturer: Schneider Electric
• Manufacturing Carbon Footprint: 26.48336765
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Number Of Spaces: 3
• Number Of Tandem Circuit Breakers: 0
• Package Weight Lbs: 3.67 kg
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Phase: 3 phase
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 4.12 in
• Product Height: 13.19 in
• Product Or Component Type: enclosure
• Product Width: 6.93 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Sustainable Packaging: No
• Take Back: No
• Tier: 2
• Tier Id: 2
• Total Lifecycle Carbon Footprint: 28 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• Wd Status: A - SELECTED - PCE ONLY (Migration)
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential 3-Phase Power Distribution
• Multi-Unit Residential Properties
• Small Commercial Facilities
• Workshop and Garage Installations
• HVAC Equipment Power Distribution
• Motor Control Applications
• Outdoor Electrical Service Installations

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability through welded galvannealed steel construction and NEMA 3R environmental protection. With RoHS compliance and mercury-free design, this QO series enclosure provides dependable performance backed by professional-grade engineering and manufacturing standards.
