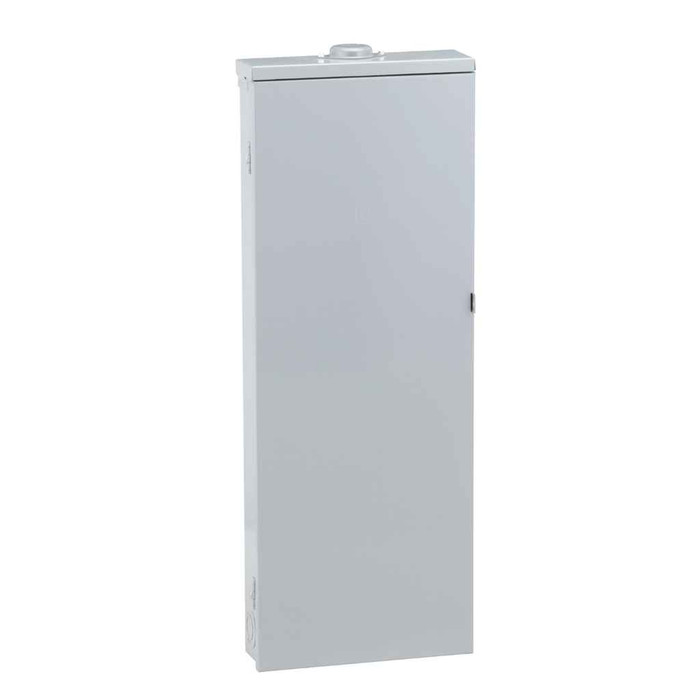

Schneider Electric QO 3-Phase Load Center 200A Convertible Main Breaker 30 Circuits NEMA 3R

Schneider Electric QO 3-Phase Load Center 200A Convertible Main Breaker 30 Circuits NEMA 3R

Professional 3-Phase Power Distribution for Commercial Applications

The Schneider Electric QO 3-Phase Load Center delivers reliable power distribution with 200A convertible main breaker capacity and 30 circuit spaces. Built with welded galvannealed steel enclosure and NEMA 3R rating for outdoor applications, this commercial-grade load center provides professional power management for demanding electrical installations. UL Listed for safety and compliance.

Professional Features & Benefits

• 200A Line Rated Current: Provides substantial power capacity for commercial and industrial electrical distribution requirements.
• 3-Phase Configuration: Delivers balanced power distribution for motors, HVAC systems, and other three-phase equipment applications.
• 30 Circuit Spaces: Accommodates extensive branch circuit requirements with flexible circuit breaker installation options.
• NEMA 3R Enclosure: Weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
• Convertible Main Breaker: Offers installation flexibility with main breaker that can be configured for specific application needs.
• Welded Galvannealed Steel Construction: Provides superior durability and corrosion resistance for long-term reliable service.
• 25 kA Short Circuit Current Rating: Handles high fault currents safely, ensuring system protection and personnel safety.

Technical Specifications

• Box Number: 14R
• China Rohs In Scope: No
• Country Of Origin: United States
• Cover Type: surface cover
• Device Composition: grounding bar (ordered separately)
• Electrical Connection: lugs
• Enclosure Material: welded galvannealed steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212001
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Three-phase convertible mains load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: COM
• Html Descr: QO, Load center, 3 phase, 30 spaces, 30 circuits, 200A convertible main breaker, NEMA3R, QDL, UL
• Legacy Weee Scope: In
• Line Rated Current: 200 A
• Load Center Type: main breaker
• Manufacturer: Schneider Electric
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Number Of Tandem Circuit Breakers: 0
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Height: 39.37 in
• Product Or Component Type: Load Center
• Product Width: 14.76 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Short Circuit Current: 25 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 2
• Tier Id: 2
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Buildings and Office Complexes
• Industrial Facilities and Manufacturing Plants
• Multi-Unit Residential Properties
• Retail and Shopping Centers
• Healthcare and Educational Facilities
• Outdoor Installations and Weather-Exposed Locations
• Emergency Services and Critical Infrastructure

Why Choose Schneider Electric Quality?

Schneider Electric QO load centers deliver proven reliability with UL Listed safety certification and robust welded galvannealed steel construction. The NEMA 3R rating ensures dependable performance in challenging outdoor environments, while the 25 kA short circuit current rating provides superior system protection for professional electrical installations.
