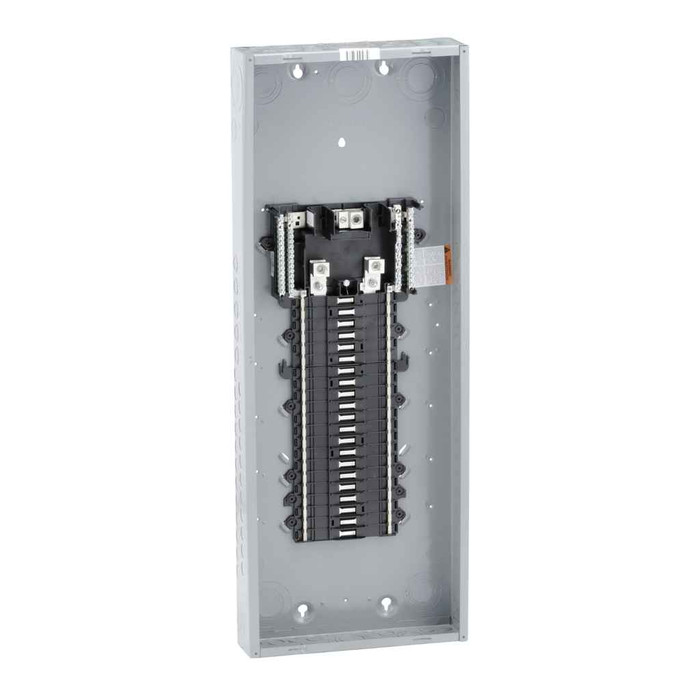

Schneider Electric QO Plug-On Neutral Load Center with Main Breaker 200A-225A Single Phase

Schneider Electric QO Plug-On Neutral Load Center with Main Breaker 200A-225A Single Phase

Professional residential electrical distribution with factory-installed main breaker

The Schneider Electric QO Plug-On Neutral Load Center delivers reliable single-phase electrical distribution for residential applications with 200A-225A capacity. This UL Listed load center features welded sheet steel construction and includes a grounding bar for comprehensive electrical safety. The convertible main design with lugs provides flexible installation options while maintaining the trusted QO series quality and performance standards.

Professional Features & Benefits

• 200A-225A Capacity: Handles substantial residential electrical loads with reliable power distribution for modern homes and electrical systems.
• Single Phase Design: Optimized for standard residential electrical service with efficient power management and distribution capabilities.
• Welded Sheet Steel Enclosure: Provides durable protection and long-lasting performance in indoor residential electrical installations.
• 65 kA Short Circuit Current Rating: Delivers robust fault protection and electrical safety for comprehensive system protection.
• UL Listed Certification: Meets rigorous safety standards ensuring code compliance and reliable performance in residential applications.
• Grounding Bar Included: Enhances electrical safety with proper grounding provisions for complete system protection.
• Plug-On Neutral Technology: Simplifies installation and provides secure neutral connections for improved electrical performance.

Technical Specifications

• China Rohs In Scope: No
• China Rohs Label: 1
• Cover Type: order separately
• Device Composition: grounding bar included (not installed)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Eoli Availability Display: No need of specific recycling operations
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: single-phase main lug only indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Legacy Weee Scope: In
• Load Center Type: PoN Convertible Mains (lugs)
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Phase: 1 phase
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.74 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Provided Equipment: grounding bar
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur In Scope: Yes
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 65 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Main Electrical Panels
• Home Electrical Service Upgrades
• New Construction Electrical Systems
• Electrical Renovation Projects
• Multi-Unit Residential Properties
• Professional Electrical Installations

Why Choose Schneider Electric Quality?

Schneider Electric QO series load centers provide proven reliability with UL Listed certification and welded sheet steel construction. The mercury-free design and toxic heavy metal-free construction demonstrate commitment to environmental responsibility while delivering the durability and performance expected from professional-grade electrical distribution equipment.
