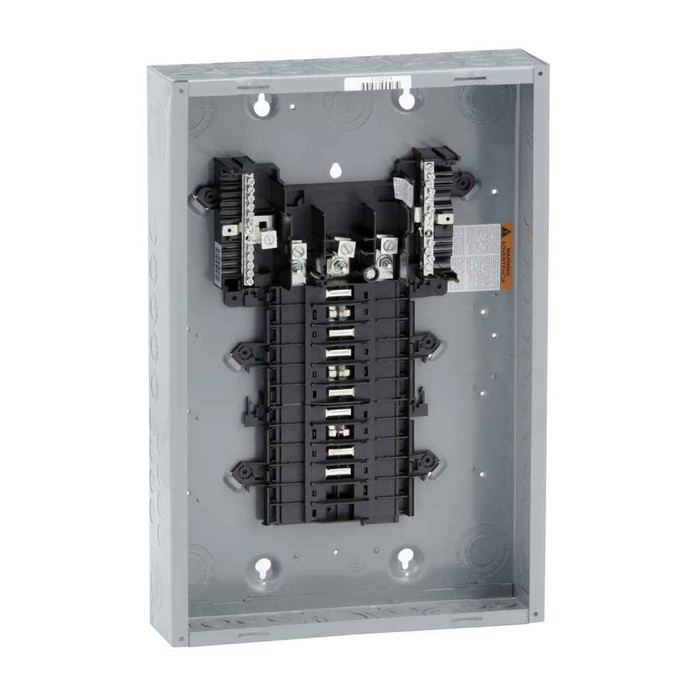

Schneider Electric QO Plug-On Neutral Load Center 125A/200A/225A Convertible Main Lug Indoor Panel

Schneider Electric QO Plug-On Neutral Load Center 125A/200A/225A Convertible Main Lug Indoor Panel

Professional three-phase electrical distribution with convertible amperage ratings

The Schneider Electric QO Plug-On Neutral Load Center delivers reliable three-phase electrical distribution for commercial applications. This convertible main lug indoor panel accommodates 125A, 200A, or 225A service ratings with welded sheet steel enclosure construction and UL Listed certification. The fixed main lug design with electrical connection lugs provides professional-grade power distribution with 65 kA short circuit current rating for demanding commercial installations.

Professional Features & Benefits

• Convertible Amperage Rating (125A/200A/225A): Flexible service capacity accommodates varying load requirements and future expansion needs.
• 65 kA Short Circuit Current Rating: High fault current capability ensures reliable protection and system integrity under demanding conditions.
• Welded Sheet Steel Enclosure: Durable construction provides long-term protection and professional appearance for commercial environments.
• UL Listed Certification: Meets rigorous safety standards for code compliance and professional installation confidence.
• Fixed Main Lug Design: Reliable electrical connection system with lugs ensures secure power distribution connections.
• Plug-On Neutral Technology: Advanced QO system design simplifies installation and enhances electrical safety.
• Grounding Bar Included: Complete grounding system components ensure proper electrical safety and code compliance.

Technical Specifications

• Accessories: PK2MB
• Base Plate: QON320L125I
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: United States
• Cover Type: order separately
• Device Composition: grounding bar included (not installed)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Three-phase main lugs only load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: COM
• Legacy Weee Scope: In
• Load Center Type: Fixed Mains (lugs)
• Manufacturer: Schneider Electric
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Number Of Tandem Circuit Breakers: 0
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.82 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur In Scope: Yes
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Short Circuit Current: 65 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 2
• Tier Id: 2
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Facilities
• Multi-Unit Properties
• Professional Offices
• Retail Establishments
• Light Industrial
• Three-Phase Distribution Systems
• Indoor Electrical Service Panels

Why Choose Schneider Electric Quality?

Schneider Electric QO Load Centers deliver proven reliability with UL Listed certification and welded sheet steel construction. The Green Premium product status and mercury-free design reflect environmental responsibility, while the 65 kA short circuit current rating ensures dependable performance in demanding commercial applications.
