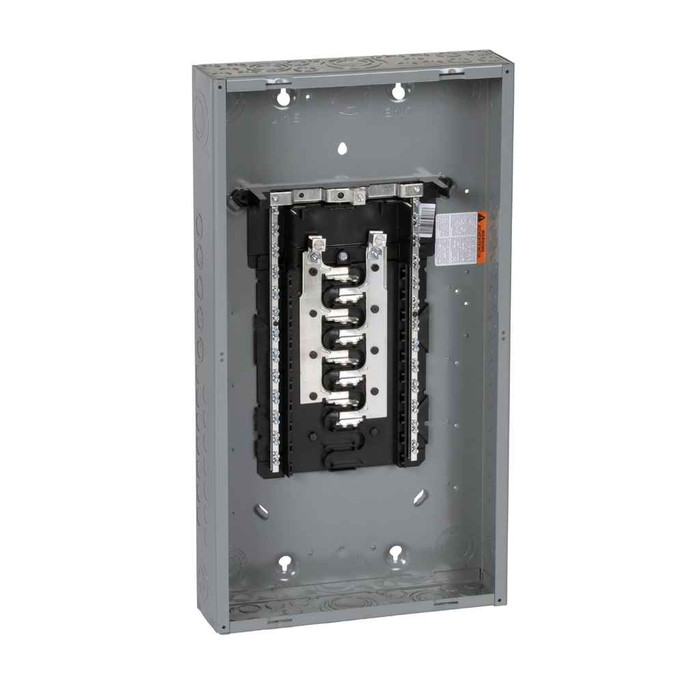

Schneider Electric HOMeline 125A Main Lug Load Center with Plug-On Neutral Technology

Schneider Electric HOMeline 125A Main Lug Load Center with Plug-On Neutral Technology

Professional Indoor Electrical Distribution for Residential Applications

The Schneider Electric HOMeline 125A Main Lug Load Center delivers reliable electrical distribution with innovative Plug-On Neutral technology for residential installations. This convertible mains load center features welded sheet steel construction and accommodates 8–60 circuits with combination flush/surface cover design for versatile indoor mounting applications.

Professional Features & Benefits

• 125A Bus Rating: Provides robust electrical capacity for comprehensive residential power distribution needs.
• Plug-On Neutral Technology: Simplifies installation and reduces wiring time with innovative neutral connection system.
• Welded Sheet Steel Enclosure: Ensures durable protection and long-term reliability in indoor environments.
• 10 kA Short Circuit Rating: Delivers dependable fault protection for enhanced electrical safety.
• UL Listed Certification: Meets rigorous safety standards with UL file E-6294 listing for professional confidence.
• Convertible Mains Design: Offers installation flexibility with main lug configuration for various service entrance requirements.
• Combination Cover Type: Accommodates both flush and surface mounting options for diverse installation scenarios.

Technical Specifications

• Accessories: HOMFPCP
• Bus Rated Current: 125.0 A
• China Rohs In Scope: No
• China Rohs Label: 1
• Cover Type: combination flush/surface cover
• Device Composition: grounding bar (ordered separately)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Legacy Weee Scope: In
• Line Rated Current: 125 A
• Load Center Type: PoN Convertible Mains (lugs)
• Manufacturer: Schneider Electric
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.74 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 10 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Panels
• Single-Family Home Electrical Distribution
• Multi-Unit Residential Properties
• Residential Renovation Projects
• Indoor Electrical Panel Upgrades
• New Construction Residential Installations

Why Choose Schneider Electric Quality?

Schneider Electric HOMeline load centers deliver proven reliability with UL listed certification and welded sheet steel construction. The mercury-free design and RoHS compliance ensure environmental responsibility while maintaining the durability and performance standards expected from professional electrical distribution equipment.
