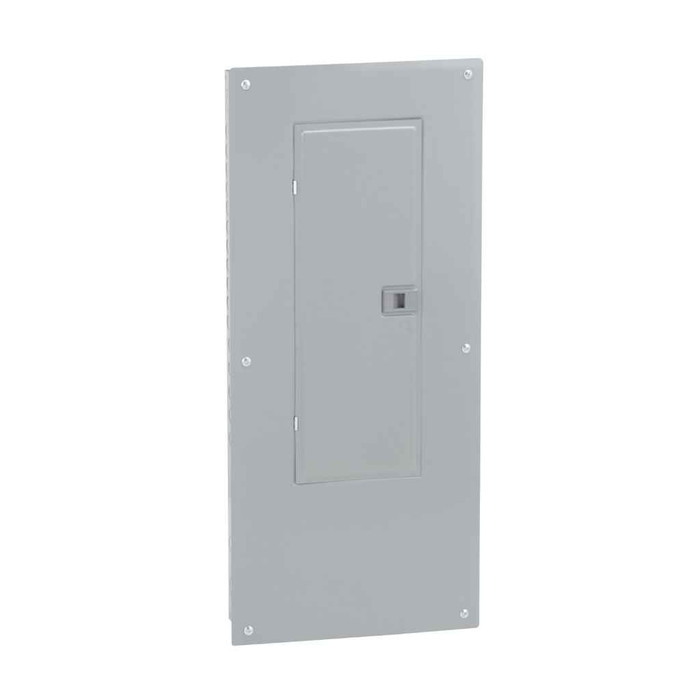

Schneider Electric HOMeline 225A Plug-On Neutral Load Center with 60 Circuit Capacity Indoor Panel

Schneider Electric HOMeline 225A Plug-On Neutral Load Center with 60 Circuit Capacity Indoor Panel

Professional residential electrical distribution with plug-on neutral technology

The Schneider Electric HOMeline 225A Plug-On Neutral Load Center delivers reliable electrical distribution for residential applications. This main lug panel features welded sheet steel enclosure construction with combination flush/surface cover design and supports up to 60 circuits with 225A bus rated current capacity for comprehensive power distribution needs.

Professional Features & Benefits

• 225A Bus Rated Current: Provides substantial electrical capacity for comprehensive residential power distribution and future expansion needs.
• 60 Circuit Capacity: Accommodates extensive electrical loads with room for additional circuits and system growth.
• Plug-On Neutral Technology: Simplifies installation with convertible mains design and streamlined neutral connections for enhanced efficiency.
• Welded Sheet Steel Enclosure: Ensures durable protection and long-term reliability in indoor electrical environments.
• 10 kA Short Circuit Rating: Delivers robust fault protection capability for safe electrical system operation.
• UL Listed Certification: Meets rigorous safety standards with UL file E-6294 listing for code compliance and professional installation confidence.
• Combination Flush/Surface Cover: Offers flexible mounting options to accommodate various installation requirements and aesthetic preferences.

Technical Specifications

• Accessories: HOMFPCP
• Bus Rated Current: 225.0 A
• China Rohs In Scope: No
• China Rohs Label: 1
• Cover Type: combination flush/surface cover
• Device Composition: grounding bar (ordered separately)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Legacy Weee Scope: In
• Line Rated Current: 225 A
• Load Center Type: PoN Convertible Mains (lugs)
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Number Of Circuits: 60
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.74 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 10 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Distribution
• Single-Family Home Power Centers
• Multi-Unit Residential Properties
• Home Addition and Renovation Projects
• Electrical Service Upgrades
• New Construction Residential Installations

Why Choose Schneider Electric Quality?

Schneider Electric HOMeline load centers deliver proven reliability with UL listed certification and welded sheet steel construction. The mercury-free and toxic heavy metal-free design ensures environmental responsibility while maintaining professional-grade performance for residential electrical distribution applications.
