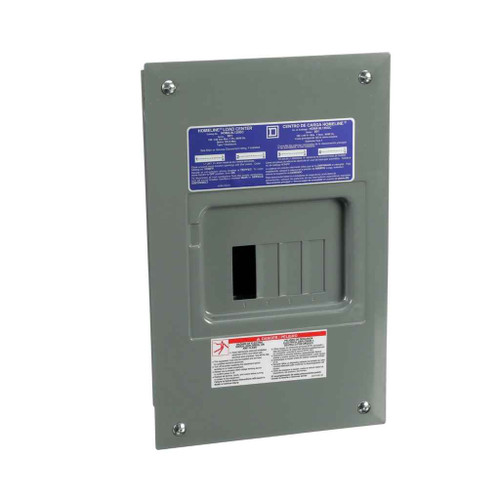

Schneider Electric Homeline 70A Flush-Mount Indoor Load Center with 4 Circuits

Schneider Electric Homeline 70A Flush-Mount Indoor Load Center with 4 Circuits

Professional residential electrical distribution for reliable power management

The Schneider Electric Homeline 70A Load Center delivers dependable electrical distribution for residential applications. This flush-mount indoor panel features welded sheet steel enclosure construction with lug connections and accommodates 4 circuits across 2 spaces with 2 tandem circuit breakers. UL listed for safety and reliability, this load center provides professional-grade power distribution in a compact design measuring 9.29" H x 4.8" W x 3.19" D.

Professional Features & Benefits

• 70A Line Rating: Provides adequate capacity for residential electrical distribution and load management requirements.
• Flush Cover Design: Enables clean, professional installation that sits flush with wall surfaces for aesthetic appeal.
• Welded Sheet Steel Enclosure: Delivers robust protection and durability for long-term electrical service applications.
• 4-Circuit Capacity: Accommodates essential residential circuits with efficient space utilization through tandem breaker design.
• 10 kA Short Circuit Rating: Provides reliable fault protection and electrical safety for residential installations.
• UL Listed Certification: Ensures compliance with safety standards and professional installation requirements.
• Lug Connection System: Facilitates secure electrical connections for reliable power distribution.

Technical Specifications

• Box Number: 2
• Carbon Footprint: 8.819760569
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 8.819760569
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Cover Type: flush cover
• Distribution Carbon Footprint: 0.215462336
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• End Of Life Carbon Footprint: 0.156026608
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212002
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Installation Carbon Footprint: 0.006758232
• Legacy Weee Scope: In
• Line Rated Current: 70 A
• Load Center Type: Fixed Mains (lugs)
• Manufacturing Carbon Footprint: 8.354172392
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Number Of Circuits: 4
• Number Of Spaces: 2
• Number Of Tandem Circuit Breakers: 2
• Package Weight Lbs: 1.67 kg
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.19 in
• Product Height: 9.29 in
• Product Or Component Type: Load Center
• Product Width: 4.8 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 10 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 2
• Tier Id: 2
• Total Lifecycle Carbon Footprint: 9 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical distribution and circuit protection
• Single-family home electrical panels
• Apartment and condominium electrical systems
• Small residential additions and renovations
• Garage and workshop electrical distribution
• Residential backup power integration

Why Choose Schneider Electric Quality?

Schneider Electric Homeline load centers provide reliable residential electrical distribution with UL listed safety certification and welded sheet steel construction. The flush cover design and compact dimensions deliver professional installation results, while the 10 kA short circuit rating ensures dependable fault protection for residential applications.
