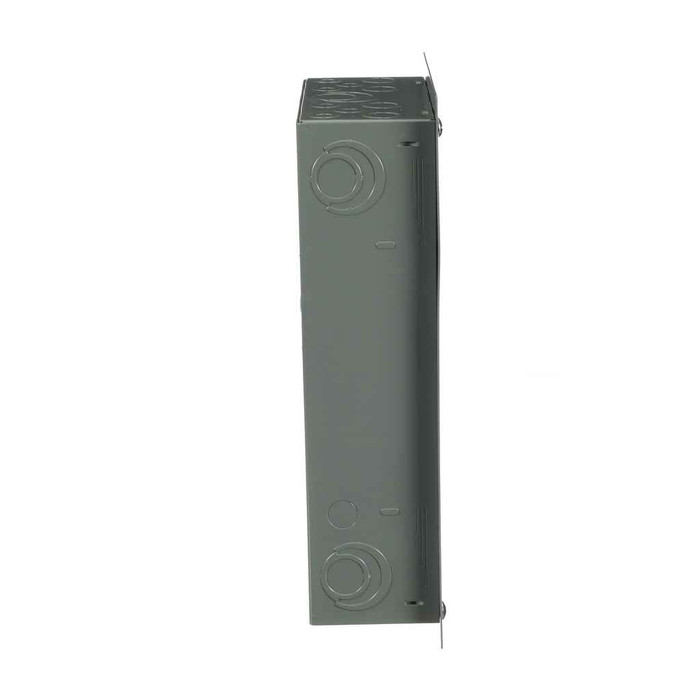

Schneider Electric Square D Homeline 125A Indoor Load Center with 8 Circuits and Flush/Surface Mount

Schneider Electric Square D Homeline 125A Indoor Load Center with 8 Circuits and Flush/Surface Mount

Professional residential electrical distribution with versatile mounting options

The Schneider Electric Square D Homeline load center delivers reliable 125A electrical distribution for residential applications. This indoor load center features welded sheet steel construction with a combination flush/surface cover for flexible installation options. With 8 circuits across 4 spaces supporting 4 tandem circuit breakers, this UL listed load center provides comprehensive power distribution with included grounding bar and lug connections for professional electrical installations.

Professional Features & Benefits

• 125A Bus Rating: Provides robust electrical capacity for comprehensive residential power distribution and load management.
• 8 Circuit Configuration: Accommodates multiple electrical loads with 4 spaces supporting 4 tandem circuit breakers for maximum flexibility.
• Welded Sheet Steel Enclosure: Ensures durable protection and long-term reliability in indoor electrical environments.
• Combination Flush/Surface Cover: Offers versatile mounting options to suit various installation requirements and space constraints.
• UL Listed Certification: Meets rigorous safety standards with UL listed file E-6294 for professional electrical installations.
• 10 kA Short Circuit Rating: Provides reliable fault protection and electrical system integrity under high-current conditions.
• Included Grounding Bar: Ensures proper electrical grounding with factory-provided grounding bar for safe installation.

Technical Specifications

• Box Number: 21
• Bus Rated Current: 125.0 A
• Carbon Footprint: 22.61907509
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 22.61907509
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Cover Type: combination flush/surface cover
• Device Composition: grounding bar included (not installed)
• Distribution Carbon Footprint: 0.555944435
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• End Of Life Carbon Footprint: 0.402586021
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212002
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Installation Carbon Footprint: 0.017437858
• Legacy Weee Scope: In
• Line Rated Current: 125 A
• Load Center Type: Fixed Mains (lugs)
• Manufacturing Carbon Footprint: 21.55576577
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Number Of Circuits: 8
• Number Of Spaces: 4
• Number Of Tandem Circuit Breakers: 4
• Package Weight Lbs: 4.282 kg
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.82 in
• Product Height: 14.8 in
• Product Or Component Type: Load Center
• Product Width: 8.9 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 10 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 23 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical distribution and circuit protection
• Single-family home electrical panels
• Apartment and condominium electrical systems
• Small commercial residential-style applications
• Electrical service upgrades and renovations
• New construction residential projects

Why Choose Schneider Electric Quality?

Schneider Electric Square D Homeline load centers deliver proven reliability with UL listed certification and welded sheet steel construction. The Green Premium product status and comprehensive compliance with RoHS and REACH directives demonstrate commitment to environmental responsibility and safety standards for professional electrical installations.
