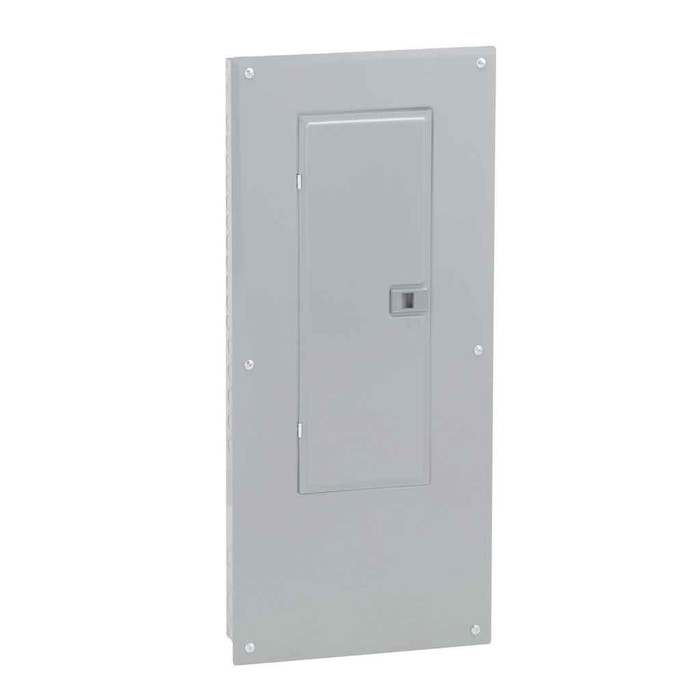

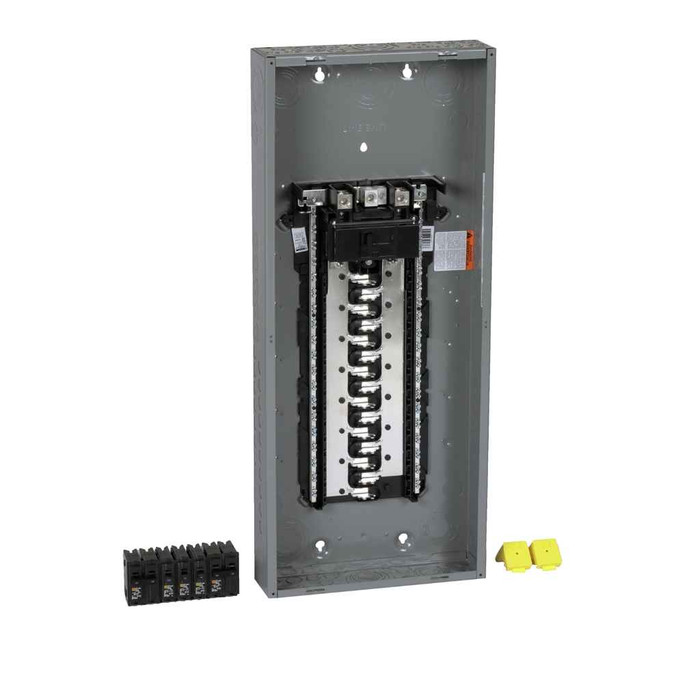

Schneider Electric Homeline 30-Space/60-Circuit Main Breaker Load Center with 225A Bus Rating and 22kA Short Circuit Current

Schneider Electric Homeline 30-Space/60-Circuit Main Breaker Load Center

Professional residential electrical distribution with convertible main breaker design

The Schneider Electric Homeline load center delivers reliable electrical distribution for residential applications with a 30-space/60-circuit configuration. This convertible main breaker load center features a 225A bus rating and 22kA short circuit current capacity, housed in welded sheet steel enclosure construction. The combination flush/surface cover design provides installation flexibility, while UL listed certification ensures code compliance and safety standards.

Professional Features & Benefits

• 225A Bus Rating: Provides substantial current capacity for comprehensive residential electrical distribution and future expansion needs.
• 30-Space/60-Circuit Configuration: Accommodates up to 30 tandem circuit breakers for maximum circuit density and flexible load management.
• 22kA Short Circuit Current: Delivers robust fault current interruption capability for enhanced electrical system protection.
• Welded Sheet Steel Enclosure: Ensures durable construction and long-term reliability in residential electrical environments.
• Convertible Main Breaker Design: Offers installation flexibility for various electrical service configurations and utility requirements.
• UL Listed Certification: Meets rigorous safety standards and electrical code requirements for professional installation confidence.
• Combination Flush/Surface Cover: Provides versatile mounting options to accommodate different installation requirements and aesthetic preferences.

Technical Specifications

• Box Number: 10
• Bus Rated Current: 225.0 A
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Cover Type: combination flush/surface cover
• Device Composition: grounding bar (ordered separately)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Offer Quality Leader: Used In
• H And D Subrange: RESI
• H And Docp Responsible Pm Co: HOM3060M200PC
• Legacy Weee Scope: In
• Load Center Type: PoN Convertible Mains (breaker)
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Number Of Circuits: 60
• Number Of Spaces: 30
• Number Of Tandem Circuit Breakers: 30
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.74 in
• Product Height: 33.78 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 22 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Service Panels
• Single-Family Home Electrical Distribution
• Multi-Unit Residential Properties
• Residential Electrical Upgrades
• New Construction Electrical Systems
• Electrical Service Modernization

Why Choose Schneider Electric Quality?

Schneider Electric Homeline load centers deliver proven reliability with UL listed certification and welded sheet steel construction. The mercury-free and toxic heavy metal-free design ensures environmental responsibility, while the convertible main breaker configuration provides long-term installation flexibility for evolving electrical needs.
