Schneider Electric Homeline 30-Space/60-Circuit Main Breaker Load Center with 22kA Short Circuit Rating

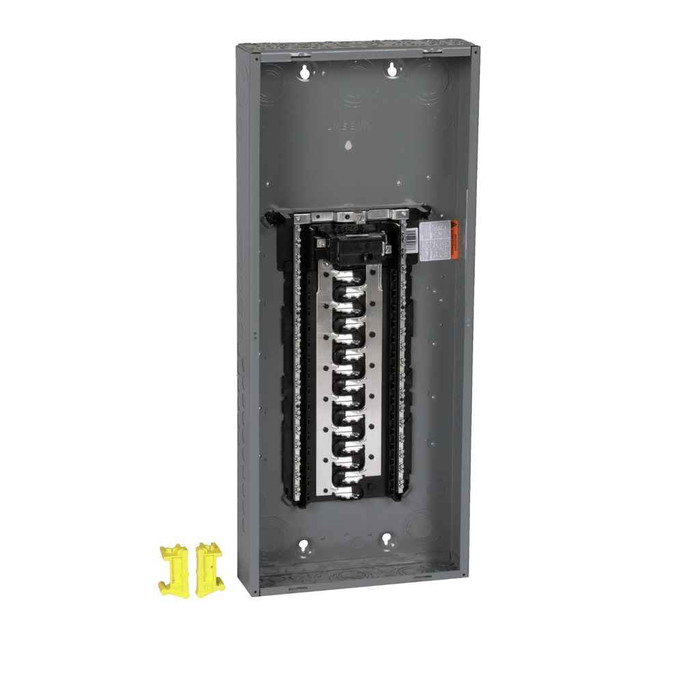

Schneider Electric Homeline 30-Space/60-Circuit Main Breaker Load Center

Professional residential electrical distribution with convertible main breaker design

The Schneider Electric Homeline 30-Space/60-Circuit Main Breaker Load Center delivers reliable electrical distribution for residential applications. This convertible mains load center features welded sheet steel enclosure construction with combination flush/surface cover design, accommodating up to 30 tandem circuit breakers for flexible circuit configuration. UL listed with 22kA short circuit current rating, this load center provides professional-grade performance for comprehensive electrical distribution needs.

Professional Features & Benefits

• 30-Space/60-Circuit Configuration: Accommodates up to 30 tandem circuit breakers, providing maximum flexibility for residential electrical distribution and future expansion needs.
• 22kA Short Circuit Rating: Delivers robust fault current protection, ensuring reliable performance under high-stress electrical conditions.
• Welded Sheet Steel Enclosure: Provides durable, long-lasting protection with superior structural integrity for demanding residential installations.
• Convertible Mains Design: Offers installation flexibility with main breaker configuration that adapts to various electrical service requirements.
• Combination Flush/Surface Cover: Enables versatile mounting options for both recessed and surface installations to meet specific project requirements.
• UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
• Homeline Series Quality: Backed by Schneider Electric’s proven residential electrical distribution expertise and reliability.

Technical Specifications

• Box Number: 10
• China Rohs In Scope: No
• China Rohs Label: 1
• Cover Type: combination flush/surface cover
• Device Composition: grounding bar (ordered separately)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Legacy Weee Scope: In
• Load Center Type: PoN Convertible Mains (breaker)
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Number Of Circuits: 60
• Number Of Spaces: 30
• Number Of Tandem Circuit Breakers: 30
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.74 in
• Product Height: 33.78 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 22 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer’s instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Distribution
• Single-Family Home Service Panels
• Multi-Unit Residential Properties
• Home Addition and Renovation Projects
• Electrical Service Upgrades
• New Construction Residential Projects

Why Choose Schneider Electric Quality?

Schneider Electric Homeline load centers deliver proven reliability with UL listed certification and mercury-free, environmentally conscious design. The welded sheet steel construction and 22kA short circuit rating ensure long-term durability and safety in residential electrical distribution applications.
