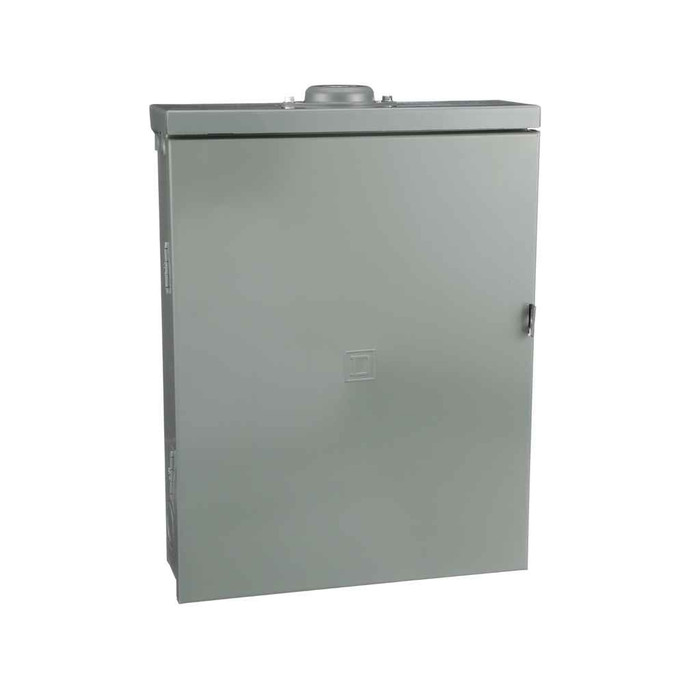

Schneider Electric Homeline 200A 1-Phase Convertible Main Breaker Load Center with PoN Configuration

Schneider Electric Homeline 200A 1-Phase Convertible Main Breaker Load Center with PoN Configuration

Professional residential electrical distribution with convertible main breaker design

The Schneider Electric Homeline Load Center delivers reliable 200A single-phase electrical distribution for residential applications. This convertible main breaker design features PoN configuration with 30 spaces, welded galvannealed steel enclosure construction, and surface cover mounting. Built for 120/240V operation with 22kA short circuit current rating and UL listed certification, this load center provides professional-grade power distribution with the flexibility of convertible main breaker functionality.

Professional Features & Benefits

• 200A Service Rating: Handles substantial residential electrical loads with reliable capacity for modern home power demands.
• Convertible Main Breaker Design: Offers installation flexibility with the ability to convert between main breaker and main lug configurations as needed.
• Welded Galvannealed Steel Enclosure: Provides durable corrosion-resistant construction for long-term reliability and protection.
• 22kA Short Circuit Current Rating: Delivers robust fault protection capability for enhanced electrical safety and system integrity.
• 30 Space Configuration: Accommodates extensive branch circuit requirements for comprehensive residential electrical distribution.
• UL Listed Certification: Ensures compliance with safety standards and code requirements for professional installation confidence.
• Surface Cover Design: Enables straightforward mounting and access for installation and maintenance procedures.

Technical Specifications

• Carbon Footprint: 96.95445029
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 96.95445029
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: United States
• Cover Type: surface cover
• Device Composition: grounding bar (ordered separately)
• Distribution Carbon Footprint: 2.390083698
• Electrical Connection: lugs
• Enclosure Material: welded galvannealed steel
• End Of Life Carbon Footprint: 1.730774204
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Html Descr: Homeline, LC, 200 A, 120/240 V, 1 PH, MB, PoN, 30 SP, N3R, surf, VP
• Installation Carbon Footprint: 0.074967817
• Legacy Weee Scope: In
• Load Center Type: PoN Convertible Mains (breaker)
• Manufacturer: Schneider Electric
• Manufacturing Carbon Footprint: 92.67128357
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 4.53 in
• Product Or Component Type: Load Center
• Product Width: 14.76 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 22 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 97 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service upgrades and new construction projects
• Single-family home main electrical distribution panels
• Residential renovation and electrical system modernization
• Multi-unit residential properties requiring individual service panels
• Professional electrical contractor installations
• Code-compliant residential electrical distribution systems

Why Choose Schneider Electric Quality?

Schneider Electric Homeline load centers provide proven reliability with UL listed certification and welded galvannealed steel construction for long-term durability. The convertible main breaker design offers installation flexibility while maintaining professional-grade performance standards. With comprehensive compliance certifications and mercury-free construction, this load center delivers the quality and safety expected from Schneider Electric residential electrical products.
