Schneider Electric QO Circuit ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$100.79

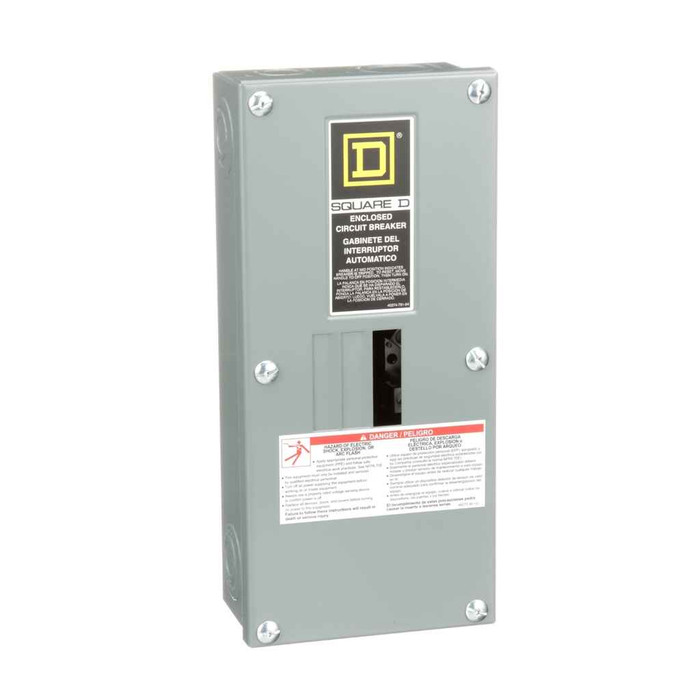

Schneider Circuit Breaker Enclosure, QO, 3 Phase, 3 Spaces, 100A, NEMA1, Surface Cover

Schneider Electric QO Circuit Breaker Enclosure 3-Phase 100A 3-Space NEMA 1 with Surface Cover

(No reviews yet) Write a Review

Model: QO3100BNS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$100.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric QO Circuit Breaker Enclosure 3-Phase 100A 3-Space NEMA 1 with Surface Cover

Professional 3-Phase Power Distribution & Protection

Schneider Electric QO Circuit Breaker Enclosure delivers reliable 3-phase power distribution with 100A line rated current capacity and 3-space configuration. Constructed from welded sheet steel with surface cover design, this NEMA 1 enclosure provides professional-grade protection for residential and light commercial applications requiring organized circuit protection and distribution.

Professional Features & Benefits

  • 100A Line Rated Current: Handles substantial electrical loads with reliable current capacity for demanding applications
  • 3-Phase Configuration: Supports balanced power distribution across three phases for efficient electrical system operation
  • Welded Sheet Steel Construction: Provides durable enclosure protection with robust material designed for long-term service
  • 3-Space Design: Accommodates multiple circuit breakers in compact configuration for organized power distribution
  • Surface Cover Type: Enables accessible installation and maintenance with convenient surface-mounted design
  • UL Listed Certification: Meets rigorous safety standards ensuring reliable performance and code compliance
  • NEMA 1 Rating: Delivers appropriate protection for indoor general-purpose electrical applications

Technical Specifications

  • Box Number: 13
  • Carbon Footprint: 19.92634973
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 19.92634973
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Country Of Origin: Mexico
  • Cover Type: surface cover
  • Device Composition: grounding bar (ordered separately)
  • Distribution Carbon Footprint: 0.8755125
  • Enclosure Material: welded sheet steel
  • Enclosure Type: enclosure
  • End Of Life Carbon Footprint: 0.271555515
  • Energy Efficiency Optimized: FALSE
  • Environmental Disclosure: ENVPEP2212002
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • H And D Domain: Safety
  • H And D Enrichment Assignment: no
  • H And D Enrichment Class 3: Circuit Breakers
  • H And D Enrichment Class 4: Enclosed circuit Breaker
  • H And D Enrichment Function: ENCLOSURES
  • H And D Subrange: RESI
  • Installation Carbon Footprint: 0.002043652
  • Legacy Weee Scope: In
  • Line Rated Current: 100 A
  • Manufacturing Carbon Footprint: 18.68989706
  • Market Segmentation: Residential
  • Market Segmentation Id: RESIDENTIAL
  • Mercury Free: Yes
  • Number Of Spaces: 3
  • Package Weight Lbs: 2.59 kg
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 3 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Certifications: UL Listed
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.4 in
  • Product Height: 13.11 in
  • Product Or Component Type: enclosure
  • Product Width: 5.87 in
  • Range Of Product: QO
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2532
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 2
  • Tier Id: 2
  • Total Lifecycle Carbon Footprint: 20 kg CO2 eq.
  • Toxic Heavy Metal Free: Yes
  • Use Carbon Footprint: 0.087341
  • Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
  • Wiring Configuration: 3-wire
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Residential Power Distribution Systems
  • Light Commercial Electrical Installations
  • Multi-Unit Residential Properties
  • Small Office Buildings
  • Retail Establishments
  • Professional Service Facilities
  • Educational Facilities

Why Choose Schneider Electric Quality?

Schneider Electric QO series enclosures deliver proven reliability with UL Listed certification and welded sheet steel construction. The Green Premium product status and comprehensive environmental compliance demonstrate commitment to sustainable electrical solutions while maintaining the durability and performance standards required for professional electrical installations.

Manufacturer Resources

Product Specs

Box Number:
13
Carbon Footprint:
19.92634973
Carbon Footprint Kg Co2 Eq Total Life Cycle:
19.92634973
China Rohs In Scope:
No
China Rohs Label:
1
Cover Type:
Surface Cover
Device Composition:
grounding bar (ordered separately)
Distribution Carbon Footprint:
0.8755125
Enclosure Material:
welded sheet steel
Enclosure Type:
enclosure
End Of Life Carbon Footprint:
0.271555515
Energy Efficiency Optimized:
FALSE
Environmental Disclosure:
ENVPEP2212002
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
H And D Domain:
Safety
H And D Enrichment Assignment:
no
H And D Enrichment Class 3:
Circuit Breakers
H And D Enrichment Class 4:
Enclosed circuit Breaker
H And D Enrichment Function:
ENCLOSURES
Installation Carbon Footprint:
0.002043652
Legacy Weee Scope:
In
Line Rated Current:
100 A
Manufacturing Carbon Footprint:
18.68989706
Market Segmentation:
Residential
Mercury Free:
Yes
Number Of Spaces:
3
Package Weight Lbs:
2.59 kg
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
3 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Certifications:
UL Listed
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.4 in
Product Height:
13.11 in
Product Or Component Type:
enclosure
Product Width:
5.87 in
Range Of Product:
QO
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2532
Rohs Exemption Information:
Yes
Sustainable Packaging:
No
Take Back:
No
Tier:
2
Total Lifecycle Carbon Footprint:
20 kg CO2 eq.
Toxic Heavy Metal Free:
Yes
Use Carbon Footprint:
0.087341
Wd Status:
5 - INITIALIZED WITH DataSCAN OK (Migration)
Wiring Configuration:
3-wire
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Enclosure
Product Group:
Enclosures & Wiring Infrastructure

Schneider QO3100BNS – Frequently Asked Questions

1) Does the Schneider QO3100BNS enclosure come with a breaker installed?
No. QO3100BNS is the enclosure only, with a surface cover. It gives you 3 breaker spaces rated for 100 A line current, and you order the QO branch breakers separately to suit the circuits. The grounding bar is also a separate order item, so plan on it if the install needs one.
2) Can I mount a QO 3-phase 100A 3-space enclosure outdoors?
No, keep it indoors. The QO3100BNS carries a NEMA 1 rating, which is general purpose indoor protection only, no rain, sleet, or hose-down duty. For an exterior wall or a wet location you need a rainproof or raintight enclosure instead.
3) Will a 3-phase 3-wire QO enclosure work for a 3-phase 4-wire circuit with a neutral?
Not as supplied. QO3100BNS is a 3-phase, 3-wire configuration, so it is set up for three ungrounded conductors without a neutral bar. If your load needs a neutral, specify a 4-wire enclosure. The grounding bar on this unit is a separate order item and is not a substitute for a neutral.
4) How many breakers fit in the Schneider QO3100BNS, and is it enough for a small 3-phase feeder?
Three spaces, which suits a single 3-pole QO breaker for a 3-phase feeder or disconnect point rather than a distribution panel. If you need branch circuit distribution for a unit or a retail space, step up to a QO loadcenter with more spaces.
5) What wall space do I need for the QO3100BNS enclosure?
Allow for a box measuring 13.11 x 5.87 x 3.4 inches (height, width, depth as published). The 3.4 inch depth is the number that matters if you are surface mounting in a tight mechanical closet or recessing against framing, and the narrow 5.87 inch width lets it sit between studs on a surface-mount plate.
6) Can I use the QO3100BNS enclosure as a subpanel for a tenant space or a small shop?
It works as a 3-phase feeder or protection point, not a branch panel. With 3 spaces and 100 A line rating, the practical use is one 3-pole QO breaker protecting a feeder in residential or light commercial work (multi-unit buildings, small offices, retail). Schneider segments it as residential. For tenant branch circuits you want a larger QO loadcenter with a neutral bar.
7) What is the enclosure made of, and will it hold up in a mechanical room?
Welded sheet steel, with a surface cover. Welded seams mean no fasteners at the box corners to loosen, which is why these hold alignment in mechanical and utility spaces. It is still a NEMA 1 box, so it wants a dry indoor location.
8) Does the Schneider QO 100A enclosure meet green procurement and RoHS requirements?
It qualifies as a Schneider Green Premium product, is EU RoHS compliant, and is reported free of Substances of Very High Concern above the REACH threshold. It is also mercury free and toxic heavy metal free, with a published environmental profile under ENVPEP2212002 and a total lifecycle footprint of 20 kg CO2 eq. Useful numbers if you are filing documentation for a LEED or public-agency project. Country of origin is Mexico.
