Eaton CH 125A 6-Circuit Main Lug Load Center with NEMA 3R Enclosure

Eaton CH 125A 6-Circuit Main Lug Load Center with NEMA 3R Enclosure

Professional Electrical Distribution with Weather-Resistant Protection

The Eaton CH 125A 6-Circuit Main Lug Load Center delivers reliable electrical distribution for residential and light commercial applications. This single-phase load center features a durable NEMA 3R metallic enclosure with cover included, copper bus material for superior conductivity, and accommodates wire sizes from #8-2 AWG. Designed for 120/240V, 208Y/120, and 240V systems with UL 67 certification for professional installation confidence.

Professional Features & Benefits

• 125A Service Rating: Provides ample capacity for residential and light commercial electrical distribution needs
• NEMA 3R Enclosure: Weather-resistant metallic construction protects against rain, sleet, and ice formation for outdoor installations
• Copper Bus Material: Superior conductivity and corrosion resistance ensures long-term reliability and performance
• 6-Circuit Capacity: Six spaces accommodate multiple branch circuits for comprehensive electrical distribution
• 25 kAIC Interrupt Rating: High fault current interruption capability provides enhanced electrical system protection
• UL 67 Certification: Listed compliance ensures code-compliant installation and professional quality standards
• Padlockable Door: Security features with single keyhole and multiple mounting provisions enhance installation flexibility

Technical Specifications

• Amperage Rating: 125 A
• Box Size: 5R
• Bus Material: Copper

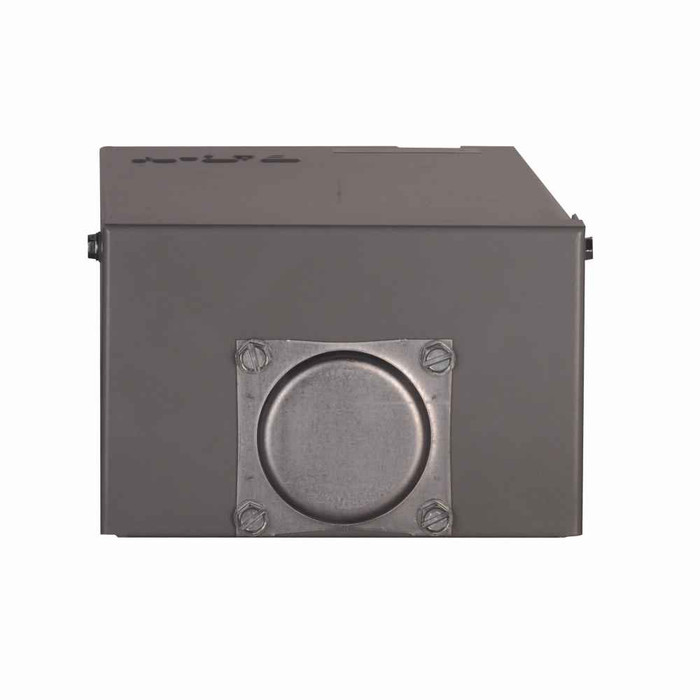

• Catalog Notes: Padlockable door. Hub closure plate provided as standard. Single keyhole, two-or three-point mounting provisions. Accepts hub series ds__h2. Up to three 240v connected loads.
• Certifications: UL 67
• Department: Electrical
• Enclosure: NEMA 3R
• Enclosure Material: Metallic
• Interrupt Rating: 25 kAIC
• Main Circuit Breaker: CH
• Number Of Circuits: 6
• Number Of Poles: Six-pole
• Number Of Spaces: 6
• Number Of Wires: 3
• Phase: Single-phase
• Product Details: Main lug only
• Product Group: Electrical
• Product Height: 4.5 in
• Product Length Depth: 11.75 in
• Product Weight: 7.25 lb
• Product Width: 6.5 in
• Special Features: Cover included
• Voltage Rating: 120/240V, 208Y/120, 240V
• Wire Size: #8-2 AWG

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service panels and distribution
• Light commercial facility electrical systems
• Outdoor electrical installations requiring weather protection
• Garage and workshop electrical distribution
• Pool house and outbuilding electrical service
• Agricultural and farm building electrical systems
• Small retail and office electrical distribution

Why Choose Eaton Quality?

Eaton load centers deliver proven reliability with UL 67 certification and professional-grade construction. The NEMA 3R metallic enclosure provides long-term durability in demanding environments, while the copper bus system ensures superior electrical performance and corrosion resistance for years of dependable service.
