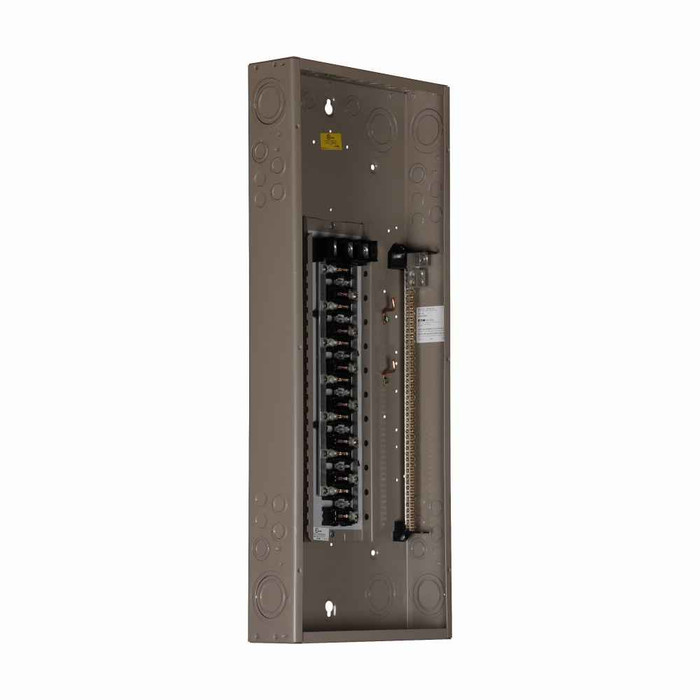

Eaton CH main lug loadcenter,Standard, Main lug only, 225 A, Copper,Ch8gf-combination, ch8ds-surface, not included, NEMA 1, Metallic,T op/bottom, CH, 42 Circuits, 42 Spaces, Four-wire, Three-phase, #4 AWG-300 kcmil
Manufacturer Resources
Product Specs
- Amperage Rating:
- 225 A
- Box Size:
- G
- Bus Material:
- Copper
- Catalog Notes:
- Furnished with hub closure plates.
- Certifications:
- UL 67
- Cover:
- Ch8gf-combination, ch8ds-surface, not included
- Enclosure:
- NEMA 1
- Enclosure Material:
- Metallic
- Feed Type:
- Top/bottom
- Interrupt Rating:
- 35 kAIC
- Main Circuit Breaker:
- CH
- Number Of Circuits:
- 42
- Number Of Spaces:
- 42
- Number Of Wires:
- 4
- Phase:
- Three-phase
- Product Height:
- 3.88 in
- Product Length Depth:
- 34.13 in
- Product Weight:
- 21.35 lb
- Product Width:
- 14.31 in
- Special Features:
- Standard
- Type:
- Main lug only
- Wire Size:
- #4 AWG-300 kcmil
- Product Group:
- Electrical
