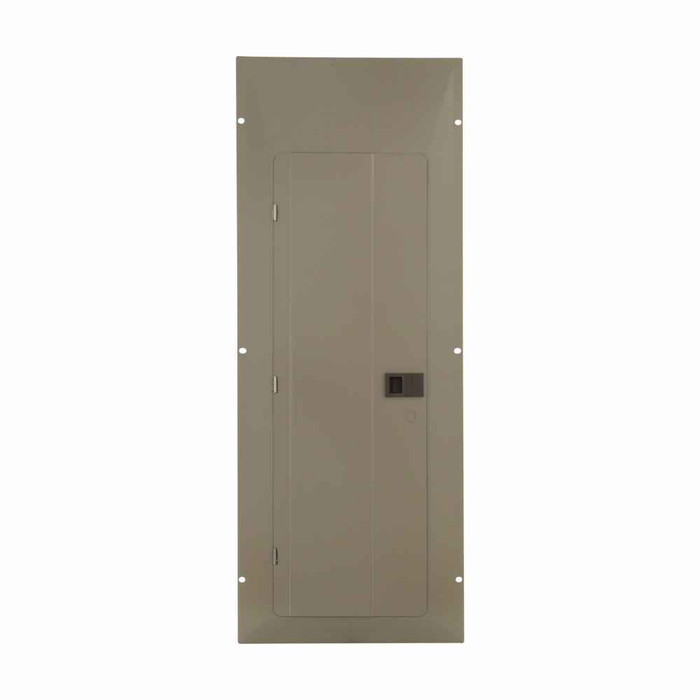

Eaton CH Surface Cover 225A 120/240V Three-Phase NEMA 1 Sandalwood

Eaton CH Surface Cover 225A 120/240V Three-Phase NEMA 1 Sandalwood

Professional electrical panel cover for versatile surface and flush applications

The Eaton CH Surface Cover delivers reliable protection for electrical panel installations with 225A capacity and 120/240V three-phase compatibility. Featuring durable NEMA 1 enclosure rating and attractive sandalwood finish, this cover provides professional-grade protection for CH breaker applications with aluminum bus construction and 10 kAIC interrupt rating.

Professional Features & Benefits

• 225A Amperage Rating: Handles substantial electrical loads for commercial and residential applications requiring high-capacity power distribution.
• 120/240V Three-Phase Compatibility: Supports versatile voltage configurations for diverse electrical system requirements and load management needs.
• NEMA 1 Enclosure: Provides reliable protection against dust and incidental contact in indoor environments with professional-grade construction.
• Aluminum Bus Material: Ensures excellent conductivity and corrosion resistance for long-term reliability in electrical distribution systems.
• Surface or Flush Mounting: Offers installation flexibility for various panel configurations and space requirements in professional applications.
• 10 kAIC Interrupt Rating: Delivers dependable fault protection capability for safe electrical system operation under short-circuit conditions.
• Sandalwood Finish: Provides attractive appearance that complements professional installations while maintaining durability and functionality.

Technical Specifications

• Amperage Rating: 225 A
• Bus Material: Aluminum
• Certifications: Contact Manufacturer
• Enclosure: NEMA 1
• Interrupt Rating: 10 kAIC
• Mounting Method: Surface, flush
• Phase: Three-phase
• Product Color: Sandalwood
• Product Details: Cover
• Product Length Depth: 1 in
• Product Size: CH - 3/4 in - plug on neutral
• Product Width: 14.31 in
• Special Features: Surface or flush universalapplications
• Used With: CH Breakers
• Voltage Rating: 120/240 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial electrical panel installations requiring high-capacity power distribution
• Industrial facilities with three-phase power requirements
• Multi-unit residential properties with substantial electrical loads
• Professional office buildings and retail establishments
• Educational and healthcare facilities requiring reliable electrical protection
• Light industrial applications with CH breaker systems

Why Choose Eaton Quality?

Eaton delivers professional-grade electrical solutions with proven reliability and durability. This CH Surface Cover features robust NEMA 1 construction, aluminum bus material for superior conductivity, and versatile mounting options for professional installations. The 10 kAIC interrupt rating and 225A capacity ensure dependable performance in demanding electrical applications.
