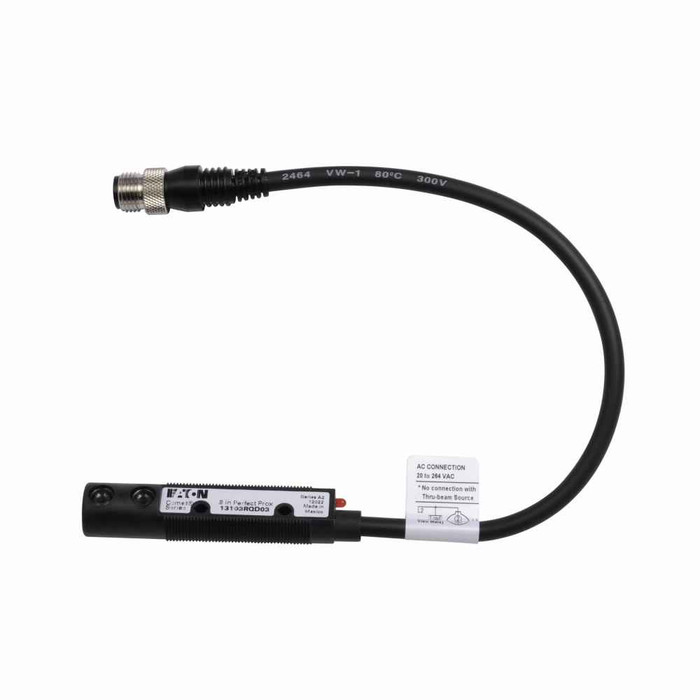

Eaton Comet 18mm tubular photoelectric sensor, Right Angle, Sensor dist 9 in, 300 mA max AC L1 switched/DC NPN open coll, 300 mA AC/DC at 20-264Vac/15-30Vdc, 4 Pin Dual Key Micro Connector, Background Suppression, 8 in(.2m)
Manufacturer Resources
Product Specs
- Cable Type:
- Polyvinyl Chloride (PVC)
- Compliances:
- Contact Manufacturer
- Connection:
- 4-pin dual key micro connector
- Contact Configuration:
- DC: NPN open collector
- Contact Rating:
- 300 mA AC/DC at 20-264Vac/15-30Vdc
- Cord Length:
- 8 in
- Enclosure Material:
- Cable jacket: PVC
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K
- Input Voltage:
- 20-264 Vac, 15-30 Vdc
- Led Indicator:
- Output status: red
- Maximum Ac Current:
- 300 mA
- Maximum Dc Current:
- 300 mA
- Operating Mode:
- Background suppression
- Operating Temperature Max:
- 158 °F
- Operating Temperature Min:
- -40 °F
- Product Height:
- 3.02 in
- Product Length Depth:
- .57 in
- Product Weight:
- .1313 lb
- Product Width:
- .71 in
- Protection:
- Latching short circuit
- Sensor Type:
- Back ground suppression
- Switch Type:
- Photoelectric
- Product Group:
- Electrical
