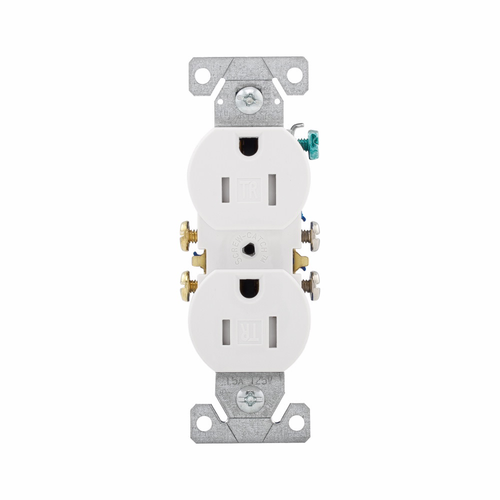

Eaton Commercial Specification Grade Duplex Receptacle, 15A, #14-10 AWG

Eaton Commercial Specification Grade Duplex Receptacle, 15A, #14-10 AWG

(No reviews yet) Write a Review

Model: BR15W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Commercial Specification Grade Duplex Receptacle, 15A, #14-10 AWG

The Eaton Commercial Specification Grade Duplex Receptacle is engineered for dependable power distribution in commercial and light industrial wiring applications. Rated 15A with a #14-10 AWG wire range, this flush-mount duplex receptacle is built to commercial specification grade standards and is UL Listed, giving electricians a durable, code-compliant device for demanding, high-use environments.

Key Features

  • Amperage Rating: Rated 15A to support standard commercial and residential circuit loads.
  • Wire Range: Accepts #14-10 AWG conductors, providing flexibility for a range of branch circuit installations.
  • Commercial Specification Grade: Built to commercial spec-grade construction standards for enhanced durability in high-traffic, high-use settings.
  • Flush Mount Design: Flush mounting configuration delivers a clean, low-profile installation in wallboxes.
  • Duplex Configuration: Dual outlet design provides versatile, convenient power access from a single device.
  • Commercial-Grade Reliability: Designed for repeated plug insertions typical of commercial and office environments.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Warranty: Refer to warranty document.
  • Certifications: UL
  • Product Type: Receptacle
  • Department: Electrical

Typical Applications

  • Commercial and Light Industrial Electrical Installations
  • Office and Retail Wiring Projects
  • Panelboard and Branch Circuit Wiring
  • Renovation and New Construction Projects
  • General-Purpose Power Distribution

Why Eaton?

Eaton builds this duplex receptacle to commercial specification grade standards, giving contractors and facility managers a UL Listed device suited for the demands of professional electrical work. With a 15A rating and #14-10 AWG wire range, it delivers the reliable, code-compliant performance electrical professionals expect from Eaton.

Manufacturer Resources

Product Specs

Product Width:
.88 in
Warranty:
Refer to warranty document.
Product Height:
4.2 in
Product Length/Depth:
1.3 in
Certifications:
UL
Product Type:
Receptacle
Department:
Electrical
Amperage Rating:
15A
Listing:
UL Listed
Grade:
Commercial
Configuration:
Flush Mount
Product Group:
Wiring Devices

Eaton BR15W – Frequently Asked Questions

1) Will the Eaton BR15W duplex receptacle take #12 wire on a 20A-fed branch circuit?
The BR15W accepts #14 through #10 AWG conductors, so #12 lands fine mechanically. The device itself is rated 15A, though, so it belongs on a 15A branch circuit or as one of several 15A receptacles on a 20A multi-outlet circuit. Do not use it as the single outlet on a dedicated 20A circuit.
2) Will an Eaton BR15W receptacle fit a standard single-gang wall box with a duplex plate?
Yes. It is a flush mount duplex device measuring 4.2 x 1.3 x .88 inches, which is the standard strap-and-yoke footprint that mounts to a single-gang box and takes a standard duplex cover plate.
3) What should I use instead of the Eaton BR15W where tamper-resistant receptacles are required?
The Eaton BR15W is a standard flush mount commercial grade duplex without a tamper-resistant shutter feature stated. Where code calls for tamper resistance, such as dwelling units, child care and similar occupancies, the Pass and Seymour 3232TRW Trademaster is a tamper-resistant duplex receptacle in white.
4) What is the closest 20A equivalent to the Eaton BR15W duplex receptacle for a circuit that needs a higher amperage device?
The Eaton BR15W is rated 15A, so it is matched to 15A branch circuits. Where a 20A duplex is required, the Bryant 5362B is a heavy-duty 20A/125V duplex receptacle, and the Pass & Seymour 26352W is a 20A 125V specification grade decorator duplex in white. The 5362B keeps the traditional duplex face; the 26352W uses a decorator opening, which changes the wall plate you order with it.
5) Is the Eaton BR15W acceptable for a patient care area, or does that need a different receptacle?
The Eaton BR15W is built to commercial specification grade and is UL Listed, which suits offices, retail and light industrial work. For patient care spaces where a hospital grade device with ground fault protection is specified, the Pass and Seymour 2097HGI is a hospital grade 20A duplex self-test GFCI receptacle in ivory.
6) Will the Eaton BR15W work in a hazardous location, and what is used there instead?
The Eaton BR15W is a flush mount duplex intended for commercial and light industrial branch circuit wiring in standard wallboxes. Classified hazardous areas call for a purpose-built device: the Appleton FSQC Series is an interlocked explosionproof receptacle, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole assembly supplied with its mating plug.
7) Is the Eaton BR15W spec grade or just residential grade?
Commercial specification grade. It is built for repeated plug insertions in offices, retail, and light industrial spaces, which is a step above the residential-grade devices used in tract housing. It is also UL Listed.
8) A cord keeps getting pulled out of the outlet on our equipment. Is the Eaton BR15W the right fix or do I need a locking device?
The Eaton BR15W is a straight-blade duplex receptacle, so a plug lifts straight out of it. For connections that must stay seated, a locking configuration is the change: the Bryant 70520FR is a 7 Series NEMA flanged locking receptacle, and the Pass and Seymour Turnlok is a 30A non-NEMA single receptacle. Both require a matching twist-type plug on the cord rather than a standard one.
9) Can the Eaton BR15W be used for a 277V motor connection?
No. The Eaton BR15W is a 15A commercial grade duplex for general purpose 125V branch circuit and office power distribution. A 277V motor tap needs a device rated for it, such as the Bryant 430R9W 4750DR, a 2-pole 3-wire 277V motor-duty receptacle.
10) What is the difference between the Eaton BR15W and the Bryant 5362BI for a high-traffic office standardization?
Both are duplex receptacles intended for repeated plug insertion. The Eaton BR15W is rated 15A and built to commercial specification grade. The Bryant 5362BI is a heavy-duty grade 20A/125V duplex. If the panel schedule shows 20A circuits with 20A receptacles specified, the 5362BI matches; for 15A circuits the BR15W is the fit.
11) What is the exact Eaton part number for this 15A commercial spec grade duplex receptacle?
Order it as Eaton BR15W. That is the single model on this product, a 15A commercial specification grade flush mount duplex.
