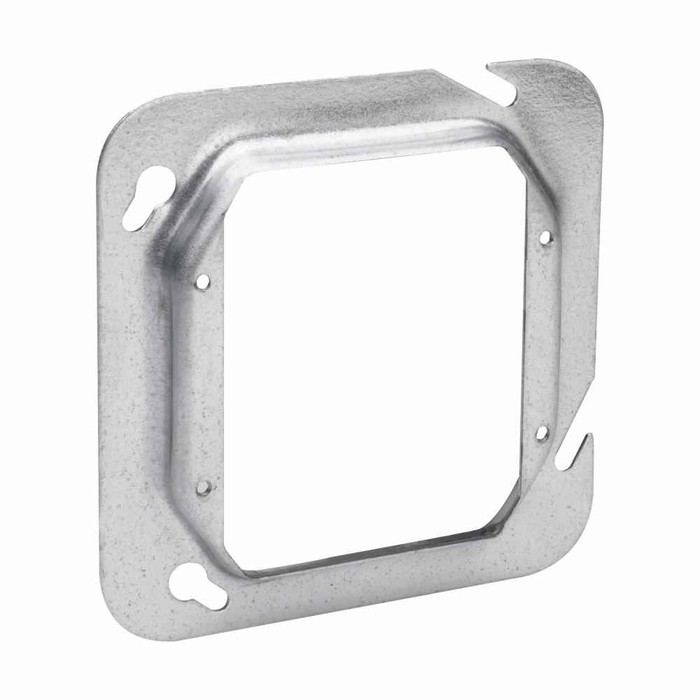

Crouse-Hinds 4-11/16" Square Steel Electrical Box Cover - Two Device

Professional electrical box cover for reliable device mounting and protection

The Crouse-Hinds 4-11/16" Square Steel Electrical Box Cover provides professional-grade protection and device mounting capability for ordinary/non-hazardous locations. Constructed from durable steel with natural finish, this two-device cover features precise 4-11/16" dimensions and 1-7/8" depth for secure installation. Multiple knockout configurations with (8) 1/2 in side knockouts and (3) 1/2 in bottom knockouts ensure versatile conduit connections while meeting NEC/CEC standards for reliable electrical system integration.

Professional Features & Benefits

  • 4-11/16" Square Design: Standard dimensions ensure compatibility with common electrical box configurations for consistent installations
  • Steel Construction: Durable material provides long-lasting protection and structural integrity in demanding applications
  • Two Device Configuration: Accommodates dual device mounting for efficient space utilization and flexible wiring layouts
  • Multiple Knockout Options: (8) side and (3) bottom 1/2 in knockouts offer versatile conduit entry points for complex routing requirements
  • 1-7/8" Depth: Adequate clearance for proper device installation and wire management within the enclosure
  • NEC/CEC Compliance: Meets established electrical code standards for safe and code-compliant installations
  • Natural Steel Finish: Clean appearance suitable for various installation environments while maintaining corrosion resistance

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Bottom Knockouts: (3) 1/2 in
  • Box Depth: 4-11/16"
  • Box Size: 4-11/16"
  • Depth: 1-7/8"
  • Product Color: Natural
  • Product Length: 4.688 IN
  • Product Material: Steel
  • Product Width: 4.688 IN
  • Side Knockouts: (8) 1/2 in
  • Standards Type: NEC/CEC

Professional Applications

  • Residential electrical installations requiring dual device mounting
  • Commercial building electrical systems
  • Industrial facility wiring projects
  • Renovation and retrofit electrical work
  • New construction electrical installations
  • Maintenance and repair applications

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through steel construction and NEC/CEC compliant design. The natural finish and precise manufacturing ensure consistent performance in ordinary/non-hazardous locations, providing the durability and code compliance professionals demand for electrical system installations.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Bottom Knockouts:
(3) 1/2 in
Box Depth:
4-11/16"
Box Size:
4-11/16"
Product Color:
Natural
Product Length:
4.688 IN
Product Material:
Steel
Product Width:
4.688 IN
Side Knockouts:
(8) 1/2 in
Standards Type:
NEC/CEC
Product Depth:
1-7/8"
Department:
Electrical
Product Type:
Electrical Box Cover
Product Subgroup:
Box Covers
Product Group:
Boxes & Enclosures

Crouse-Hinds CRS-TP590 – Frequently Asked Questions

1) Will a Crouse-Hinds TP583 two-device cover fit a 4-11/16 inch square box?
Yes. The Crouse-Hinds two-device square cover is built for 4-11/16 inch square boxes, and measures 4.688 inches long by 4.688 inches wide, which is the same thing expressed as a decimal. It will not work on a 4 inch square (1900) box, which uses a smaller cover.
2) Which raised depth should I order on a Crouse-Hinds two-device square cover?
Pick the raise by how much extra wiring volume and device clearance you need on top of the box. The range runs flat (TP590), 1/4 inch raised (TP583), 1/2 inch (TP584), 3/4 inch (TP586), 1 inch (TP587), 1-1/4 inch (TP593) and 1-1/2 inch (TP594). Use flat when the devices sit flush in a deep box and the wall finish is tight to the box; step up the raise when the box is crowded or the box is set back behind thick finish material such as tile or furring.
3) Can I mount two receptacles or switches on this Crouse-Hinds square box cover?
That is exactly what it is for. The cover is a two-device (two-gang) plate for a 4-11/16 inch square box, so two switches, two receptacles, or one of each mount side by side in the openings. For a single device on the same box size you need a one-device cover instead.
4) Does this square box cover meet NEC requirements for a commercial job?
The Crouse-Hinds two-device square cover is built to NEC/CEC standards, which is what inspectors look for on commercial and multi-family device boxes in the US and Canada. It is a steel cover in natural finish, so there is no coating to burn off at a grounding or bonding point.
5) What material and finish is the Crouse-Hinds 4-11/16 inch two-device cover, and will it hold up in a damp mechanical room?
It is steel with a natural (uncoated) finish. That suits dry and ordinary indoor locations such as mechanical and electrical rooms, corridors and back-of-house spaces. For wet or washdown areas, or anywhere subject to standing moisture, specify a weatherproof or coated assembly instead.
6) Can I standardize one cover across a building full of 4-11/16 inch square boxes?
Yes, provided every opening uses two devices. The same two-device cover profile covers all 4-11/16 inch square boxes, and the raise depth is the only variable to match to field conditions, flat through 1-1/2 inch raised. Ordering one or two raise depths in quantity keeps the stockroom simple for maintenance crews replacing damaged covers.
