Crouse-Hinds 4-11/16" Steel Sq...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4.54

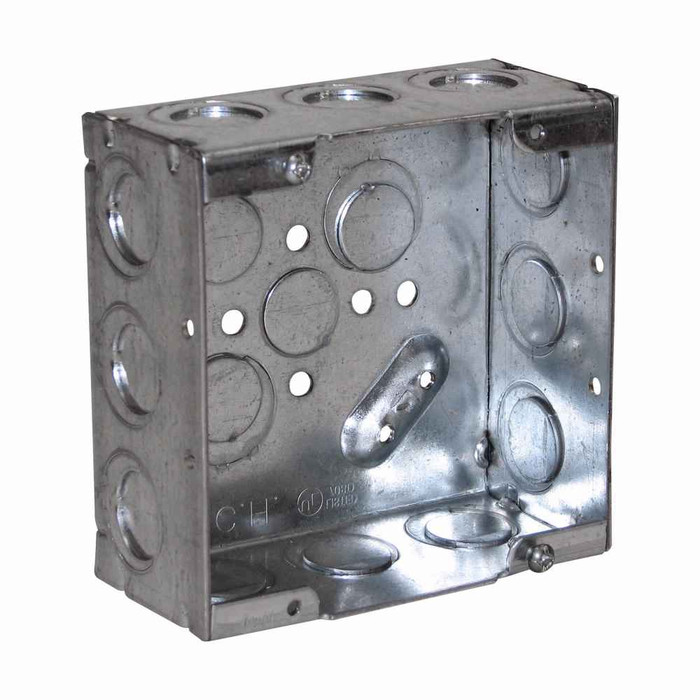

Eaton Crouse-Hinds 4-11/16" Steel Square Outlet Boxes 44 Cubic Inch, UL-Listed

Crouse-Hinds 4-11/16" Steel Square Outlet Box 44 Cubic Inch Welded Construction

(No reviews yet) Write a Review

Model: TP521

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds 4-11/16" Steel Square Outlet Box 44 Cubic Inch Welded Construction

Professional electrical enclosure for reliable wiring connections

The Crouse-Hinds 4-11/16" Steel Square Outlet Box delivers dependable electrical enclosure performance with 44 cubic inch capacity and welded steel construction. This UL-Listed outlet box features comprehensive knockout configurations and 2-1/8" depth for versatile conduit connections in ordinary/non-hazardous locations, meeting NEC/CEC standards for professional electrical installations.

Professional Features & Benefits

  • 44 Cubic Inch Capacity: Provides ample space for wire connections and electrical devices in standard applications
  • Welded Steel Construction: Ensures structural integrity and long-term durability in demanding electrical environments
  • 4-11/16" Square Design: Standard size accommodates most electrical devices and provides reliable mounting platform
  • Multiple Knockout Options: Bottom and side knockouts support flexible conduit routing and connection configurations
  • 2-1/8" Depth: Adequate depth for proper wire management and device installation clearance
  • UL-Listed Compliance: Meets safety standards for ordinary/non-hazardous location installations
  • NEC/CEC Standards: Complies with electrical code requirements for professional installations

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Bottom Knockouts: (2) 1/2 in, (2) 3/4 in
  • Box Size: 4-11/16"
  • Capacity: 44 cubic in
  • Conduit Cable: Conduit (no clamps)
  • Construction: Welded
  • Depth: 2-1/8"
  • Product Height: 2.13 in
  • Product Length Depth: 4.69 in
  • Product Material: Steel
  • Product Weight: 1.15 lb
  • Product Width: 4.69 in
  • Side Knockouts: (12) 1/2 in, (1) 3/4 in C
  • Standards Type: NEC/CEC

Professional Applications

  • Residential electrical installations and renovations
  • Commercial building electrical systems
  • Industrial facility wiring projects
  • Institutional electrical infrastructure
  • Multi-unit residential properties
  • Professional office electrical systems
  • Retail establishment electrical work

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through UL-Listed welded steel construction and comprehensive compliance with NEC/CEC standards. The robust 1.15 lb steel construction ensures long-term performance in ordinary/non-hazardous electrical applications, providing the dependable quality professionals trust for critical electrical infrastructure projects.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Bottom Knockouts:
(2) 1/2 in, (2) 3/4 in
Box Size:
4-11/16"
Capacity:
44 cubic in
Conduit Cable:
Conduit (no clamps)
Construction:
Welded
Product Height:
2.13 in
Product Length Depth:
4.69 in
Product Material:
Steel
Product Weight:
1.15 lb
Product Width:
4.69 in
Side Knockouts:
(12) 1/2 in, (1) 3/4 in C
Standards Type:
NEC/CEC
Product Depth:
2-1/8"
Department:
Electrical
Product Type:
Outlet Box
Product Subgroup:
Electrical Boxes
Product Group:
Boxes & Enclosures

Crouse-Hinds TP521 – Frequently Asked Questions

1) What size knockouts are on the Crouse-Hinds 4-11/16 square box, and how many?
Sides carry twelve 1/2 inch knockouts plus one 3/4 inch concentric. The bottom has two 1/2 inch and two 3/4 inch. So you can land 1/2 inch EMT or flex on almost any side, and step up to 3/4 inch on the bottom or on that one concentric side opening. Concentric means you pop the inner ring for 1/2 inch or take the full ring for 3/4 inch on that same opening.
2) Does this Crouse-Hinds square box come with cable clamps for NM/Romex?
No clamps. The 4-11/16 square box is built for conduit, so it ships as a bare welded steel box with open knockouts. If you are pulling NM cable into it, you have to add listed cable connectors at each knockout. For EMT, flex, or rigid, use the appropriate connector for that raceway.
3) Can I use this box in a hazardous or classified area?
No. This 4-11/16 square steel box is rated for ordinary, non-hazardous locations only. Class I, II, or III areas require an explosionproof or dust-ignitionproof enclosure with threaded hubs and a matching cover, which is a different family of product entirely.
4) Do I need to order a cover or a mud ring separately with this outlet box?
Yes, plan on a cover. The box ships as the enclosure only. What you add depends on the finish: a flat blank cover for a junction box, or a 4-11/16 raised device ring sized to your wall thickness if a switch, receptacle, or a plate is going in. Match the ring to the 4-11/16 square opening, not to the smaller 4 inch square, or the screw pattern will not line up.
5) Is a welded steel box better than a drawn box for a commercial job?
Welded construction means the corners and seams are joined rather than formed from one drawn piece, and the body is steel at 1.15 lb. For commercial and industrial work in ordinary locations that is the usual choice where the box gets handled, strapped, and loaded with conduit. It is a general purpose box, though, not a hazardous location enclosure and not a wet or raintight one, so anything classified or exposed needs a different housing.
6) What are the actual outside dimensions of the 4-11/16 inch square box for framing and rough-in?
Outside it measures 4.69 inches by 4.69 inches with a 2.13 inch height, which is the 4-11/16 square footprint at 2-1/8 inch deep. Plan your stud bay and drywall depth around that 2-1/8 inch, and remember any raised cover or plaster ring you add sits on top of it.
7) Is the Crouse-Hinds TP521 box code compliant for a commercial inspection?
The box is UL Listed and built to NEC/CEC standards for ordinary location work. Model number to specify is TP521. Compliance on your job still comes down to the install: fill calculation against the 44 cubic inch volume, correct connectors at each knockout, and the box accessible after finish.
8) How many 3/4 inch conduit runs can I bring into this box?
Three 3/4 inch entries are available as knockouts: two on the bottom and one concentric opening on a side. Everything else is 1/2 inch, twelve on the sides and two on the bottom. If your design needs four or more 3/4 inch raceways landing in one box, this knockout pattern will not give it to you without a different enclosure.
