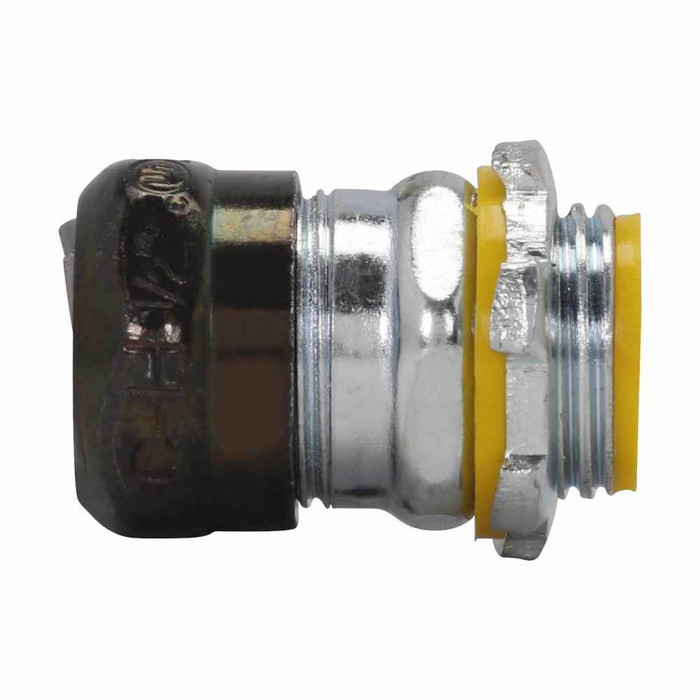

Eaton Crouse-Hinds EMT Compression Connector - Straight, Insulated, Steel, Threadless

Crouse-Hinds 2" EMT Compression Connector - Straight, Insulated, Steel, Raintight

(No reviews yet) Write a Review

Model: 1655RT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.74
$14.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds 2" EMT Compression Connector - Straight, Insulated, Steel, Raintight

Professional EMT Conduit Connection Solution

The Crouse-Hinds 2" EMT Compression Connector delivers reliable electrical conduit connections with professional-grade steel construction and insulated design. This straight compression connector provides secure threadless installation for EMT conduit systems in ordinary locations, featuring raintight protection and NEC/CEC compliance for dependable electrical infrastructure applications.

Professional Features & Benefits

  • 2" EMT Compatibility: Precisely engineered for 2-inch EMT conduit systems, ensuring proper fit and secure connections in electrical installations.
  • Steel Construction: Durable steel material provides long-lasting performance and mechanical strength for demanding electrical applications.
  • Compression Design: Threadless compression connection eliminates threading requirements while delivering secure, reliable conduit attachment.
  • Insulated Protection: Integrated insulation enhances electrical safety and prevents unwanted contact in conduit connections.
  • Raintight Rating: Weather-resistant design protects electrical connections from moisture infiltration in outdoor and wet location applications.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for professional electrical installations.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Conduit Type: EMT
  • Connector Type: Straight
  • Insulator: Insulated
  • Product Height: 1.17 in
  • Product Length Depth: 5.13 in
  • Product Material: Steel
  • Product Size: 2"
  • Product Style: Compression
  • Product Weight: .67 lb
  • Product Width: 4.86 in
  • Special Features: Raintight
  • Standards Type: NEC/CEC
  • Thread: Threadless

Installation & Operation

  1. Mount the connector in a suitable location with appropriate clearance and access for conduit connections and service.
  2. Connect EMT conduit following applicable guidelines and the manufacturer's instructions for compression fitting installation.
  3. Wire electrical conductors according to the provided specifications and compatible electrical capacity requirements.
  4. Configure compression mechanism to ensure secure conduit attachment and proper electrical continuity.
  5. Test connection integrity and verify proper performance before placing electrical system into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to electrical conduit systems.

Professional Applications

  • Commercial Electrical Installations
  • Industrial Facility Wiring
  • Residential Electrical Systems
  • Institutional Buildings
  • Retail and Office Complexes
  • Educational Facilities
  • Healthcare Facilities

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability in electrical infrastructure with steel construction, raintight protection, and full NEC/CEC compliance. This compression connector represents professional-grade quality and durability for demanding electrical conduit applications, ensuring long-term performance in ordinary location installations.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Conduit Type:
EMT
Connector Type:
Straight
Insulator:
Insulated
Product Height:
1.17 in
Product Length Depth:
5.13 in
Product Material:
Steel
Product Size:
2"
Product Style:
Compression
Product Weight:
.67 lb
Product Width:
4.86 in
Special Features:
Raintight
Standards Type:
NEC/CEC
Thread:
Threadless
Department:
Electrical
Product Type:
EMT Connector
Product Subgroup:
Electrical

Crouse-Hinds 1655RT – Frequently Asked Questions

1) Will a Crouse-Hinds 1655RT connector work on 2 inch EMT?
That's exactly what it's built for. The 1655RT is sized for 2 inch EMT and uses a compression (threadless) connection, so the tubing slides in and the gland nut clamps it. No threading, no set screw. It won't work on rigid or IMC, which are threaded conduits, and it won't take a different trade size of EMT.
2) Can I use this EMT connector outside or in a wet location?
The 1655RT carries a raintight rating, so it's made to keep moisture out of the connection where EMT runs outdoors or in damp areas. One limit to note: it's rated for ordinary, non-hazardous locations only. If you're in a classified area, you need a fitting listed for that class and division instead.
3) Is the Crouse-Hinds 1655RT steel or die cast zinc?
Steel. For a 2 inch EMT connector that matters, because the bigger trade sizes take real mechanical abuse on a job site and steel handles the gland nut torque better than a cast body. Steel also gives you a solid ground path through the fitting.
4) Does this EMT connector meet code for a commercial job?
The 1655RT is built to NEC and CEC standards, which covers straight EMT terminations in the US and Canada on commercial, industrial and institutional work. Keep it in ordinary, non-hazardous areas; classified locations call for a different fitting family.
5) Is this a straight connector or an offset one for box entry?
Straight. The 1655RT terminates EMT into an enclosure or box on a direct axis. If your conduit runs flat against a surface and has to step into the knockout, you want an offset connector instead, not this one.
6) What is the part number and how heavy is a 2 inch Crouse-Hinds compression connector?
Order it as Crouse-Hinds 1655RT. Each connector weighs .67 lb, which is worth doing the math on if you're pulling a hundred of them for a large distribution run, and the packaged dimensions are 5.13 in by 4.86 in by 1.17 in.
