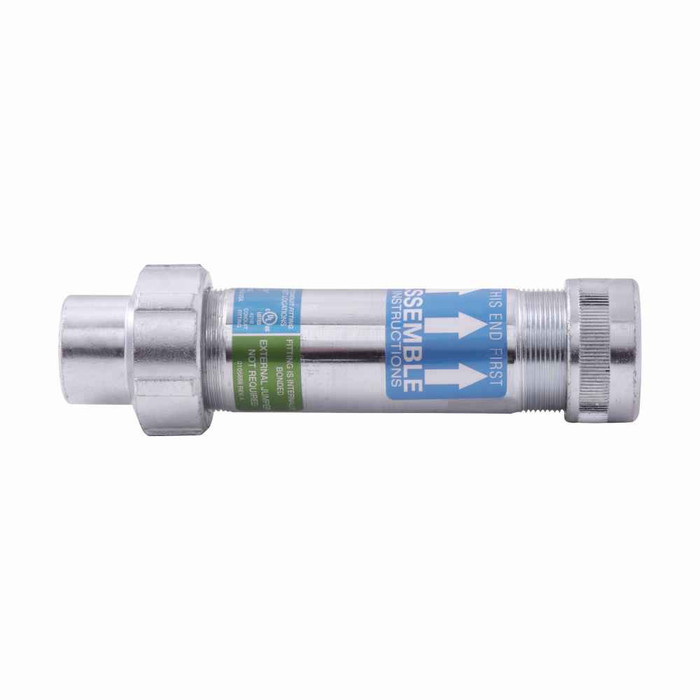

Eaton Crouse-Hinds Series XJG Expansion Couplings for Rigid/IMC and EMT Conduit

Crouse-Hinds XJG Series Steel Expansion Couplings for Rigid/IMC and EMT Conduit with 4" Movement

(No reviews yet) Write a Review

Model: XJG84 HDG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$768.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds XJG Series Steel Expansion Couplings for Rigid/IMC and EMT Conduit with 4" Movement

Professional Conduit Expansion Solutions for Electrical Systems

Crouse-Hinds XJG Series Steel Expansion Couplings provide reliable conduit connection solutions for rigid/IMC and EMT conduit systems. These professional-grade expansion couplings accommodate up to 4" of conduit movement while maintaining secure electrical connections. Constructed from durable steel with hot dip galvanized finish, these couplings deliver long-lasting performance in ordinary/non-hazardous locations and meet NEC/CEC standards for professional electrical installations.

Professional Features & Benefits

  • 4" Maximum Movement Capacity: Accommodates significant conduit expansion and contraction for flexible system design and thermal compensation.
  • Steel Construction with Hot Dip Galvanized Finish: Provides superior corrosion resistance and durability for long-term reliability in various environmental conditions.
  • Rigid/IMC and EMT Compatibility: Versatile design works with multiple conduit types for streamlined inventory and installation flexibility.
  • NEC/CEC Standards Compliance: Meets national electrical code requirements ensuring safe and code-compliant installations.
  • Ordinary/Non-Hazardous Location Rating: Suitable for standard commercial and industrial applications with reliable performance.
  • Professional Expansion Design: Engineered specifically for expansion applications providing controlled movement while maintaining electrical continuity.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Conduit Type: Rigid/IMC
  • Maximum Conduit Movement: 4"
  • Product Details: Expansion
  • Product Finish: Hot dip galvanized
  • Product Material: Steel
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Runs
  • Multi-Story Construction Projects
  • Professional Office Buildings
  • Retail and Warehouse Facilities
  • Educational and Healthcare Institutions
  • Municipal and Government Buildings

Why Choose Crouse-Hinds Quality?

Crouse-Hinds XJG Series expansion couplings deliver professional-grade reliability with steel construction and hot dip galvanized finish for superior corrosion resistance. NEC/CEC standards compliance ensures code-compliant installations, while the 4" movement capacity provides exceptional flexibility for demanding electrical system applications.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Conduit Type:
Rigid/IMC
Maximum Conduit Movement:
4"
Product Details:
Expansion
Product Finish:
Hot dip galvanized
Product Material:
Steel
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Conduit Coupling
Product Subgroup:
Electrical

Crouse-Hinds XJG84 HDG – Frequently Asked Questions

1) What size conduit do the Crouse-Hinds XJG expansion couplings come in?
The XJG Series expansion coupling is stocked from 3/4 inch through 4 inch trade size: 3/4 (XJG24), 1 inch (XJG34), 1-1/4 inch (XJG44), 1-1/2 inch (XJG54 HDG), 2 inch (XJG64 HDG), 2-1/2 inch (XJG74 HDG), 3 inch (XJG84) and 4 inch (XJG104 HDG). Order the coupling to match the trade size of the run it splices into, not to the movement you need. Every one of those carries 4 inches of movement, and at 3 inch there is also an 8 inch movement version, the XJG88 HDG.
2) How much movement does a Crouse-Hinds XJG expansion coupling allow?
Four inches of total conduit movement on every trade size from 3/4 inch up to 4 inch. That is the travel the coupling absorbs as the run expands and contracts, so it is set at installation with the slip section positioned for where the structure sits at that temperature, not run all the way home. If a single run needs more than 4 inches, the 3 inch XJG88 HDG doubles it to 8 inches of movement.
3) Can I use an XJG expansion coupling on EMT, or is it rigid conduit only?
Both. The XJG Series is built for rigid and IMC conduit and for EMT, so one fitting covers a run whether it is threaded rigid or thinwall. The spec sheet lists the conduit type as Rigid/IMC and the series is described for Rigid/IMC and EMT.
4) Can I install a Crouse-Hinds XJG expansion coupling in a hazardous or classified area?
No. The XJG expansion coupling is rated for ordinary, non-hazardous locations only. For a Class I or Class II classified area you need a fitting listed for that classification, so do not substitute this one into a hazardous location run.
5) Does an expansion coupling maintain the equipment grounding path, or do I need a bonding jumper?
Plan on an external bonding jumper. An expansion coupling has a sliding joint by design, and a sliding joint is not a reliable equipment grounding conductor path. The XJG is steel and NEC/CEC compliant as a fitting, but where the metal raceway is being used as the equipment grounding conductor, the code requires the expansion fitting to be bonded around. Bond it with a jumper sized to the circuit and lugs at each side of the coupling.
6) I have a 3 inch conduit run crossing a building expansion joint. Which XJG do I order?
For a structural expansion joint at 3 inch trade size, the XJG88 HDG is the one to look at: it is the 3 inch coupling with 8 inches of movement, hot dip galvanized. Building joints move more than a straight thermal run does, and the standard 4 inch movement 3 inch couplings (XJG84 in zinc-plated steel, XJG84 HDG galvanized) may not cover the designed joint travel. Check the joint's rated movement against the coupling before you commit.
7) Is the hot dip galvanized XJG coupling worth it over the plain steel one for an outdoor run?
For anything outdoors, on a rooftop, in a parking structure or at a building expansion joint that sees weather, take the hot dip galvanized version. Both are steel; the HDG suffix is the difference, and it is the corrosion barrier. Plain steel is stocked at 3/4 inch (XJG24), 1 inch (XJG34) and 1-1/4 inch (XJG44), with a zinc-plated 3 inch (XJG84), and those suit dry interior runs. The HDG couplings run 3/4 inch through 4 inch, so galvanized is available in every size.
8) Does the XJG expansion coupling handle side-to-side offset, or only in-and-out movement?
Straight axial travel only. The XJG absorbs 4 inches of expansion and contraction along the length of the conduit. Where a joint also shifts laterally or shears, an expansion coupling on its own is the wrong fitting; that condition calls for a combination expansion and deflection fitting instead.
9) What is the difference between the XJG couplings ending in HDG and the ones without?
HDG is the hot dip galvanized finish. XJG24 and XJG24 HDG are both 3/4 inch couplings with 4 inches of movement; the HDG carries the galvanized coating and the plain catalog number is bare steel. Same for XJG34/XJG34 HDG at 1 inch and XJG84/XJG84 HDG at 3 inch, though the plain 3 inch is zinc-plated rather than bare. Order by the full number including the suffix, since the finish is the only thing separating them.
10) Do I need an expansion coupling on a long straight conduit run, or can I skip it?
Long exterior metal runs and any run crossing a structural joint need one. Steel conduit grows and shrinks with temperature, and without a place to absorb it the run pushes on boxes, cracks fittings and buckles. The XJG gives that run 4 inches of travel to move into. On short interior runs at stable temperature, it is generally unnecessary. Base the count on the temperature swing across the run and the joints it crosses.
