Crouse-Hinds Type LB Series 5 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$5.79
$5.75

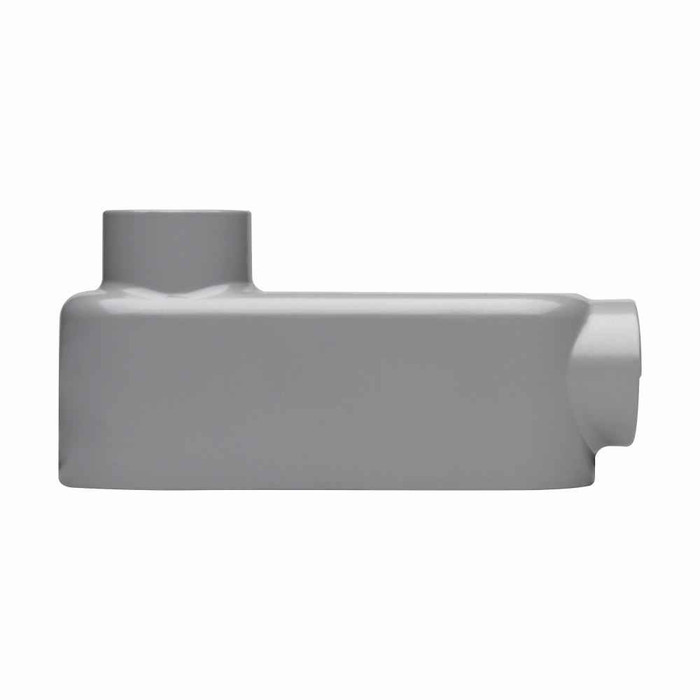

Eaton Crouse-Hinds Type LB Series 5 Conduit Outlet Bodies - Copper-Free Aluminum, Rigid/IMC/EMT Threaded Series

Crouse-Hinds Type LB Series 5 Conduit Outlet Body - Copper-Free Aluminum for Rigid/IMC/EMT Applications

(No reviews yet) Write a Review

Model: LB25

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.79
$5.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Type LB Series 5 Conduit Outlet Body

Professional-Grade Conduit Routing Solution for Electrical Installations

The Crouse-Hinds Type LB Series 5 Conduit Outlet Body delivers reliable conduit routing and wire pulling access for professional electrical installations. Constructed from durable copper-free aluminum, this LB-style outlet body provides secure connections for rigid, IMC, and EMT conduit systems in ordinary locations, ensuring long-lasting performance and code compliance.

Professional Features & Benefits

  • Type LB Configuration: Provides 90-degree conduit routing with removable cover for easy wire pulling and maintenance access
  • Copper-Free Aluminum Construction: Delivers corrosion resistance and lightweight durability for extended service life
  • Rigid/IMC Compatibility: Accommodates multiple conduit types for versatile installation applications
  • Series 5 Design: Engineered for reliable performance in standard electrical distribution systems
  • NEC/CEC Compliance: Meets established electrical code requirements for safe installation practices
  • Ordinary Location Rating: Suitable for standard commercial and residential electrical environments

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Conduit Type: Rigid/IMC
  • Product Material: Copper-free aluminum
  • Product Shape: LB
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Routing
  • Residential Electrical Installations
  • Institutional Building Projects
  • Retail and Office Electrical Distribution
  • Educational Facility Wiring Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds outlet bodies provide dependable conduit system solutions with copper-free aluminum construction for corrosion resistance and NEC/CEC compliance for code-approved installations. The Type LB design ensures reliable wire routing and maintenance access for professional electrical applications.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Conduit Type:
Rigid/IMC
Product Material:
Copper-free aluminum
Product Shape:
LB
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Conduit Body

Crouse-Hinds LB25 – Frequently Asked Questions

1) What trade sizes does the Crouse-Hinds Type LB Series 5 conduit body come in?
The LB Series 5 body is offered in nine trade sizes, from 1/2 inch up through 4 inch: LB15 (1/2"), LB25 (3/4"), LB35 (1"), LB45 (1-1/4"), LB55 (1-1/2"), LB65 (2"), LB75 (2-1/2"), LB85 (3") and LB105 (4"). Order the body to match the trade size of the conduit run it sits in, not the wire size.
2) Will a Crouse-Hinds LB conduit body thread onto EMT?
The LB Series 5 body is a threaded conduit body built for rigid and IMC conduit, so it takes threaded hubs, not the compression or set-screw ends EMT uses. To bring EMT into it you need an EMT-to-threaded connector at each opening. Rigid and IMC thread straight in.
3) Is copper-free aluminum OK for an outdoor or coastal conduit run?
Copper-free aluminum is the alloy specified where corrosion matters, and it is the standard choice for exposed exterior runs and damp commercial environments. The trade-off worth knowing: aluminum bodies should not be buried in concrete or set in direct contact with masonry or soil without protection, and on a strongly chemical or wash-down process area a facility will usually spec a coated or malleable iron body instead.
4) Can I use an LB conduit body as a junction box to splice conductors?
An LB is a routing and pull-access fitting, not a splice enclosure by default. Splicing inside a conduit body is only permitted where the body is durably marked with its cubic inch capacity and supported independently of the conduit, and even then the volume is small. Where you need real splice room, run into a pull box or junction box and use the LB purely for the 90 degree turn and wire pulling.
5) Which size LB do I order for a 3/4 inch rigid conduit run?
LB25 is the 3/4 inch Series 5 body. Size to the conduit, not to the number of conductors. If you are struggling to pull the wire through a 90, going one trade size up on the whole run is the fix, not oversizing the body alone, because the body hubs have to thread to the conduit you are actually running.
6) Is the LB105 the same fitting as the smaller Crouse-Hinds LB bodies, just bigger?
Yes, LB105 is the 4 inch member of the same Series 5 family: same copper-free aluminum, same LB shape, same threaded rigid and IMC connection, same ordinary location rating as the 1/2 inch LB15. Only the trade size changes across the range, so a facility standardizing on one fitting family can spec Series 5 top to bottom.
