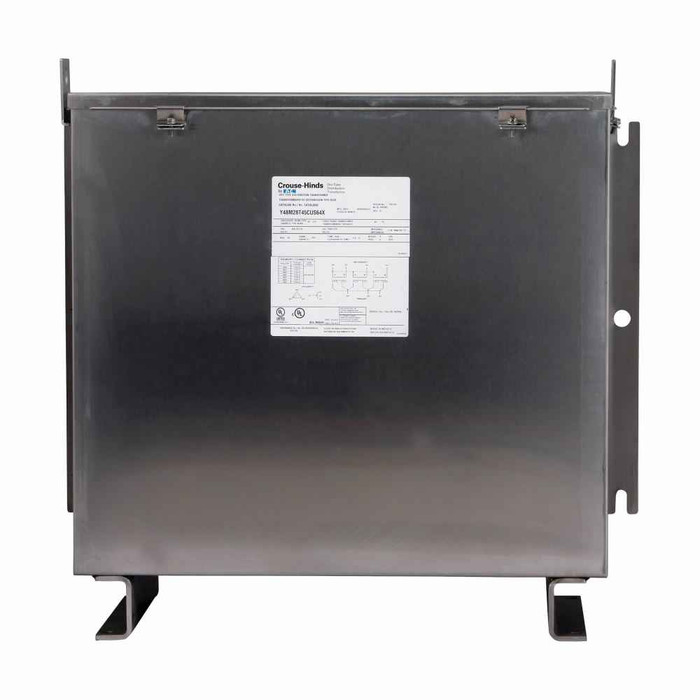

Crouse-Hinds XDT Series Hazardous Location Dry-Type Transformer 3 kVA Single-Phase 480V Primary

Crouse-Hinds XDT Series Hazardous Location Dry-Type Transformer

Professional Power Distribution for Classified Environments

The Crouse-Hinds XDT Series Hazardous Location Dry-Type Transformer delivers reliable 3 kVA single-phase power conversion specifically engineered for Class I, Division 2 hazardous locations. This UL Listed transformer features resin encapsulated construction with copper windings, providing dependable 480V primary to 120V/240V secondary voltage transformation at 60 Hz frequency rating with 115°C temperature rise capability.

Professional Features & Benefits

• 3 kVA Power Rating: Provides substantial capacity for demanding industrial and commercial applications requiring reliable power conversion.
• Class I, Division 2 Certification: Engineered and certified for safe operation in hazardous locations with Groups A, B, C, D compliance for versatile classified environment applications.
• Resin Encapsulated Construction: Advanced encapsulation technology protects internal components from environmental contaminants while ensuring long-term reliability in harsh conditions.
• Copper Windings: Premium copper conductor construction delivers superior electrical performance, thermal management, and extended service life.
• Wall Mounting Design: Space-efficient wall mount configuration optimizes installation flexibility while maintaining proper clearances and accessibility.
• UL Listed Certification: Comprehensive safety testing and certification ensures compliance with rigorous electrical safety standards for professional installations.
• 115°C Temperature Rise Rating: Robust thermal performance capability enables reliable operation under demanding load conditions while maintaining safe operating temperatures.

Technical Specifications

• Area Classification: Hazardous/Classified Locations
• Catalog Notes: Private Brand
• Certifications: UL Listed
• Compliances: Class I, Div. 2, Groups A, B, C, D
• Frame: 176H
• Frequency Rating: 60 Hz
• Kva: 3 kVA
• Kva Rating: 3 kVA
• Mounting Method: Wall
• Nec Hazardous Rating: Class I, Division 2
• Phase: Single-phase
• Primary Voltage: 480 Vac
• Product Details: Resin encapsulated
• Secondary Voltage: 120 Vac/240 Vac
• Special Features: Copper windings
• Standards Type: NEC/CEC
• Temperature Rise: 115 °C rise
• Volt Ampere Rating: 3 kVA

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Petrochemical Processing Facilities
• Oil and Gas Operations
• Chemical Manufacturing Plants
• Pharmaceutical Production
• Paint and Coating Facilities
• Grain Handling Operations
• Industrial Maintenance Areas

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through UL Listed certification and NEC/CEC standards compliance, ensuring dependable performance in the most demanding hazardous location applications. The resin encapsulated construction and copper windings provide long-term durability and consistent electrical performance for professional installations requiring certified safety and operational excellence.
