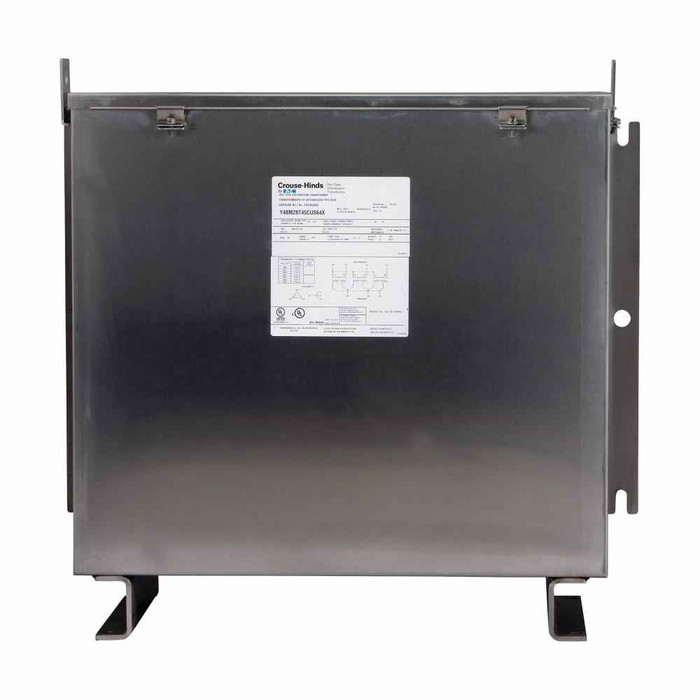

Eaton Crouse-Hinds XDT Series Hazardous Location Dry-Type Transformers (Three-Phase, 480 V → 208Y/120 V)

Crouse-Hinds XDT Series Hazardous Location Dry-Type Transformer 6 kVA Three-Phase 480V to 208Y/120V

(No reviews yet) Write a Review

Model: XDT3B15X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18,958.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds XDT Series Hazardous Location Dry-Type Transformer 6 kVA Three-Phase 480V to 208Y/120V

Professional Power Distribution for Hazardous Environments

The Crouse-Hinds XDT Series delivers reliable three-phase power transformation in hazardous locations with 6 kVA capacity, converting 480V primary to 208Y/120V secondary voltage. This resin encapsulated dry-type transformer features copper windings and Class I, Division 2 rating for safe operation in classified environments where dependable power distribution is essential.

Professional Features & Benefits

  • 6 kVA Capacity: Provides substantial power handling for demanding industrial applications requiring reliable voltage transformation.
  • Class I, Division 2 Rating: Certified for safe operation in hazardous locations where flammable gases or vapors may be present under abnormal conditions.
  • Resin Encapsulated Design: Offers superior protection against moisture, contaminants, and environmental factors for extended service life.
  • Copper Windings: Ensures excellent electrical conductivity and thermal performance for efficient power transfer and heat dissipation.
  • Three-Phase Configuration: Delivers balanced power distribution ideal for motor loads and industrial equipment requiring stable voltage supply.
  • 480V to 208Y/120V Conversion: Standard industrial voltage transformation providing both single-phase and three-phase output options.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for safe installation and operation.

Technical Specifications

  • Area Classification: Hazardous/Classified Locations
  • Frequency Rating: 60 Hz
  • Kva Rating: 6 kVA
  • Nec Hazardous Rating: Class I, Division 2
  • Phase: Three-phase
  • Primary Voltage: 480 Vac
  • Product Details: Resin encapsulated
  • Secondary Voltage: 208Y/120 Vac
  • Special Features: Copper windings
  • Standards Type: NEC/CEC

Professional Applications

  • Chemical Processing Facilities
  • Petroleum Refineries
  • Paint Manufacturing Plants
  • Pharmaceutical Production
  • Grain Handling Operations
  • Industrial Manufacturing
  • Hazardous Material Storage Areas

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability in hazardous location applications with resin encapsulated construction and copper windings designed for demanding industrial environments. NEC/CEC compliance ensures safe installation while Class I, Division 2 certification provides confidence in classified location performance.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Frequency Rating:
60 Hz
Kva Rating:
6 kVA
Nec Hazardous Rating:
Class I, Division 2
Phase:
Three-phase
Primary Voltage:
480 Vac
Product Details:
Resin encapsulated
Secondary Voltage:
208Y/120 Vac
Special Features:
Copper windings
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Transformer

Crouse-Hinds XDT3B15X – Frequently Asked Questions

1) Can I use the Crouse-Hinds XDT transformer in a Class I Division 1 area?
No. The XDT Series is rated Class I, Division 2 only, meaning areas where flammable gases or vapors are present only under abnormal conditions. For a Division 1 location, where ignitable concentrations exist under normal operation, you need equipment specifically listed for Division 1. Putting a Division 2 unit in a Division 1 area will not pass inspection.
2) Which kVA sizes does the Crouse-Hinds XDT3B three-phase transformer come in?
Seven sizes across the XDT3B line: 6, 9, 15, 30, 45 and 75 kVA. In painted steel with a NEMA 3R enclosure you can get 6 (XDT3B6), 9 (XDT3B9), 15 (XDT3B15), 30 (XDT3B30), 45 (XDT3B45) and 75 kVA (XDT3B75). The 316 stainless steel NEMA 4X version is offered in 6 (XDT3B6X), 15 (XDT3B15X), 30 (XDT3B30X) and 45 kVA (XDT3B45X), so if you need stainless at 9 or 75 kVA, that combination is not built.
3) Should I order the painted steel or the 316 stainless XDT transformer for an outdoor refinery installation?
Both enclosure styles are outdoor-capable, but they solve different problems. Painted steel is NEMA 3R, which handles rain, sleet and snow, and suits a sheltered or inland outdoor pad. The 316 stainless version (the X suffix, such as XDT3B30X) is NEMA 4X, adding washdown and corrosion resistance, which is what you want in a refinery, coastal site, chemical processing area or anywhere the unit gets hosed down or sees salt and chemical mist.
4) Will the Crouse-Hinds XDT transformer give me 120V for receptacles and lighting off a 480V feed?
Yes. The XDT3B is a 480 Vac primary to 208Y/120 Vac secondary three-phase transformer, so the wye secondary gives you 208V phase-to-phase for three-phase loads and 120V phase-to-neutral for receptacles, lighting and control circuits off the same unit. Rated for 60 Hz.
5) What does resin encapsulated mean on a hazardous location dry-type transformer, and does it need cooling oil?
Resin encapsulation means the windings are cast in resin rather than immersed in liquid, so there is no oil to fill, sample or contain, and no liquid containment requirement at the pad. The resin seals the copper windings against moisture and airborne contaminants, which is why this construction gets used in grain handling, paint plants and pharmaceutical production where dust and vapor are part of the environment.
6) Does the Crouse-Hinds XDT transformer meet Canadian Electrical Code as well as NEC?
The XDT Series is built to NEC/CEC standards, so it can be specified on both US and Canadian projects. That matters for cross-border industrial work where one transformer spec has to satisfy both the National Electrical Code and the Canadian Electrical Code for a classified location.
7) Is the XDT3B a single-phase transformer or three-phase?
Three-phase. The XDT3B is a three-phase unit with a 480 Vac delta-side input and a 208Y/120 Vac wye output, so it needs a three-phase 480V feeder. If your only source is single-phase 480V, this is not the right transformer, even though the wye secondary does provide single-phase 120V branch circuits.
8) Do copper windings matter on a hazardous location transformer, or is aluminum fine?
The XDT3B is built with copper windings, which carry current at lower resistance than an equivalent aluminum winding and shed heat better in a sealed, resin encapsulated body. On plant specs that call out copper only, this unit satisfies that line item without a substitution request.
