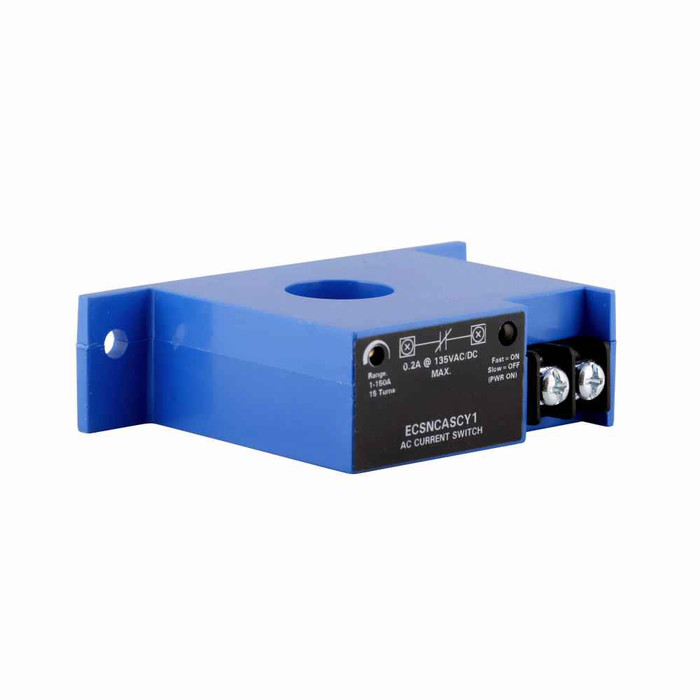

Eaton ECSNCASCY1 Current Watch...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$317.76
$267.76
Eaton ECSNCASCY1 Current Watch Series Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 150A, Switch up to 0.2A max AC, Switch up to 0.2A max DC, Isolated Solid State Relay, 0.2A at 135 Vac/DC, Screw Terminals, Current Switch

Eaton ECSNCASCY1 Current Watch Series Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 150A, Switch up to 0.2A max AC, Switch up to 0.2A max DC, Isolated Solid State Relay, 0.2A at 135 Vac/DC, Screw Terminals, Current Switch

(No reviews yet) Write a Review

Model: ECSNCASCY1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$317.76
$267.76
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton ECSTD409SP CurrentWatch Series Current Switch, Current Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 200A, Switch up to 0.2A max AC, Switch up to 0.2A max DC, Isolated Solid State Relay, 0.2A at 135 Vac/DC, Screw Terminals

Eaton ECSTD409SP CurrentWatch Series Current Switch, Current Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 200A, Switch up to 0.2A max AC, Switch up to 0.2A max DC, Isolated Solid State Relay, 0.2A at 135 Vac/DC, Screw Terminals

Model: EAT-ECSTD409SP

CurrentWatch Series Current Switch, Current Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 200A, Switch up to 0.2A max AC, Switch up to 0.2A max DC, Isolated Solid State Relay, 0...

Eaton

$414.53
$364.53
Eaton Current Watch Series Switch, UL94 V0 Flammability Rated Plastic enclosure, Monitor up to 150A, Switch up to 0.2A max AC, Switch up to 0.2A max DC, Isolated Solid State Relay, 0.2A at 135 Vac/DC, Screw Terminals, Current Switch

Manufacturer Resources

Product Specs

Ac Current Max:
150 A monitor, 0.2 A switch
Compliances:
cULus Listed
Connection:
Screw terminal
Contact Configuration:
Isolated solid state relay
Contact Rating:
0.2A at 135 Vac/DC
Enclosure Material:
UL94 V0 flammability rated plastic
Led Indicator:
Contact status: red LED
Operating Temperature:
-58° to 122°F (-50° to 50°C)
Product Height:
3.5 in
Product Length Depth:
2.18 in
Product Weight:
.25 lb
Product Width:
.93 in
Switch Type:
Current switch
Product Group:
Electrical
!
